Washer Tube Layout

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

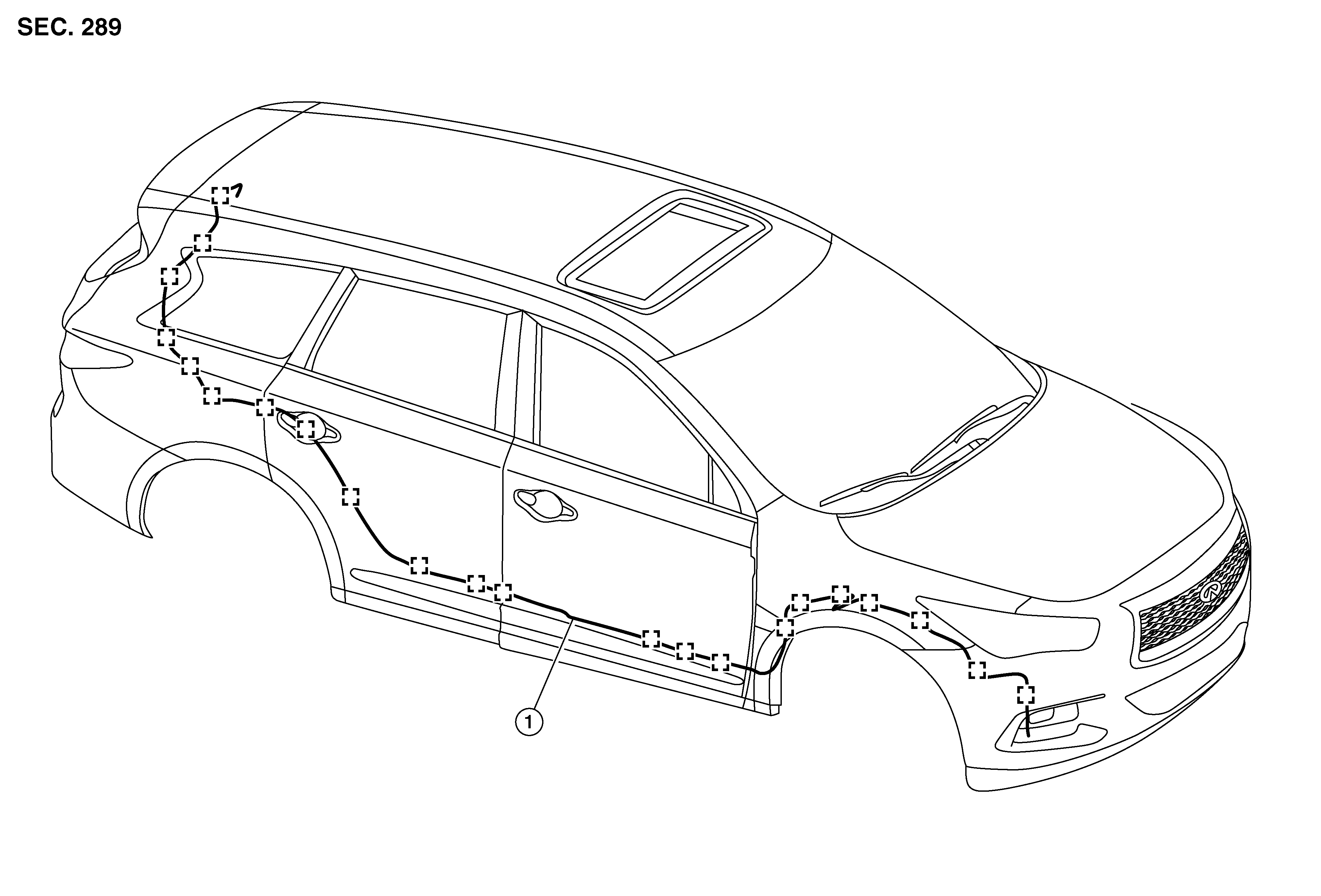

GNSAWLIA2805Z-805Courtesy of NISSAN NORTH AMERICA, INC.

1.

Rear washer tube
