Rear Washer Nozzle And Tube: Inspection
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
INSPECTION

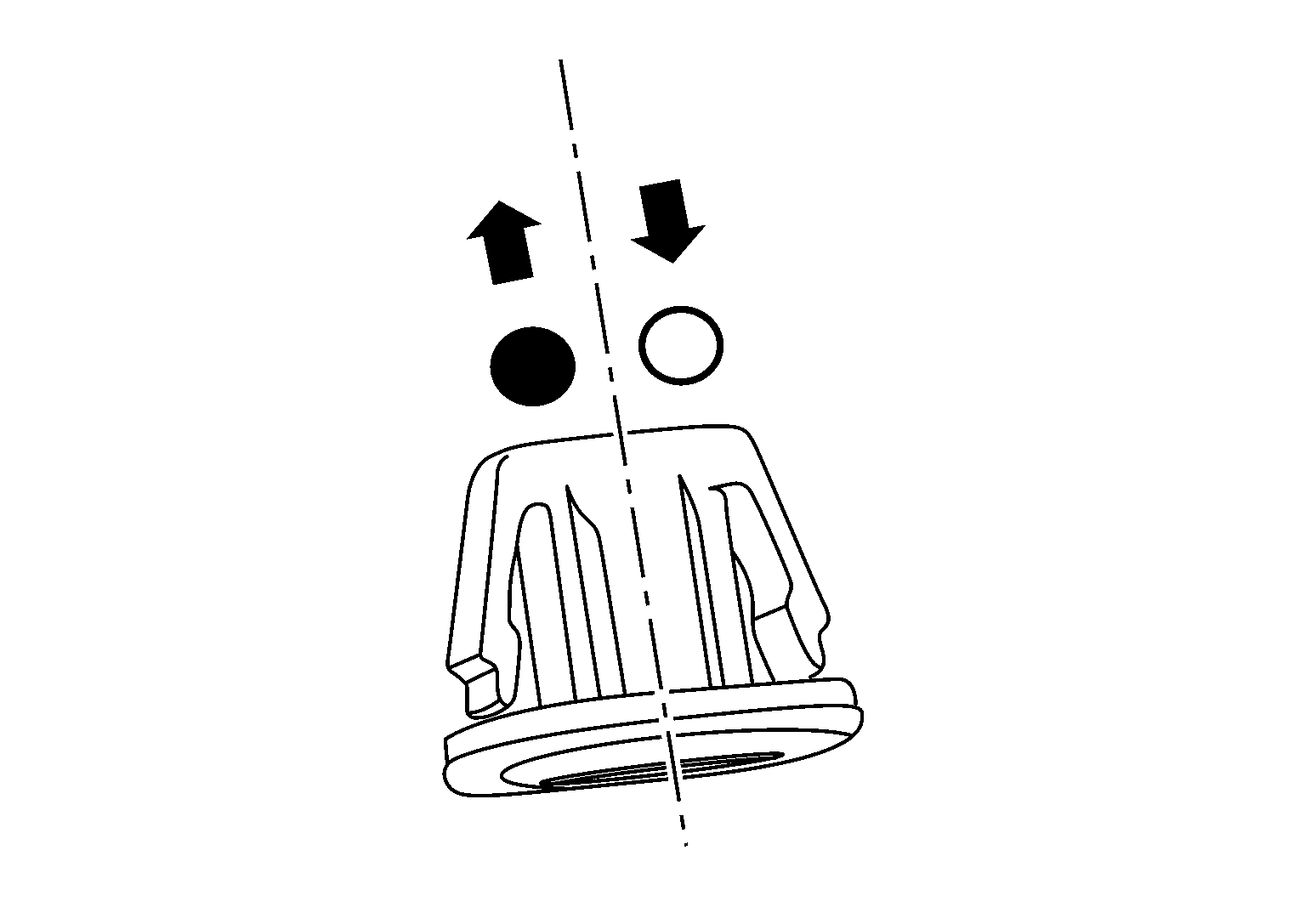

With the rear washer nozzle assembly removed, check that air can not pass backwards through the nozzle and check valve by blowing into the nozzle. Check that air can pass through the nozzle and check valve by blowing into the hose.

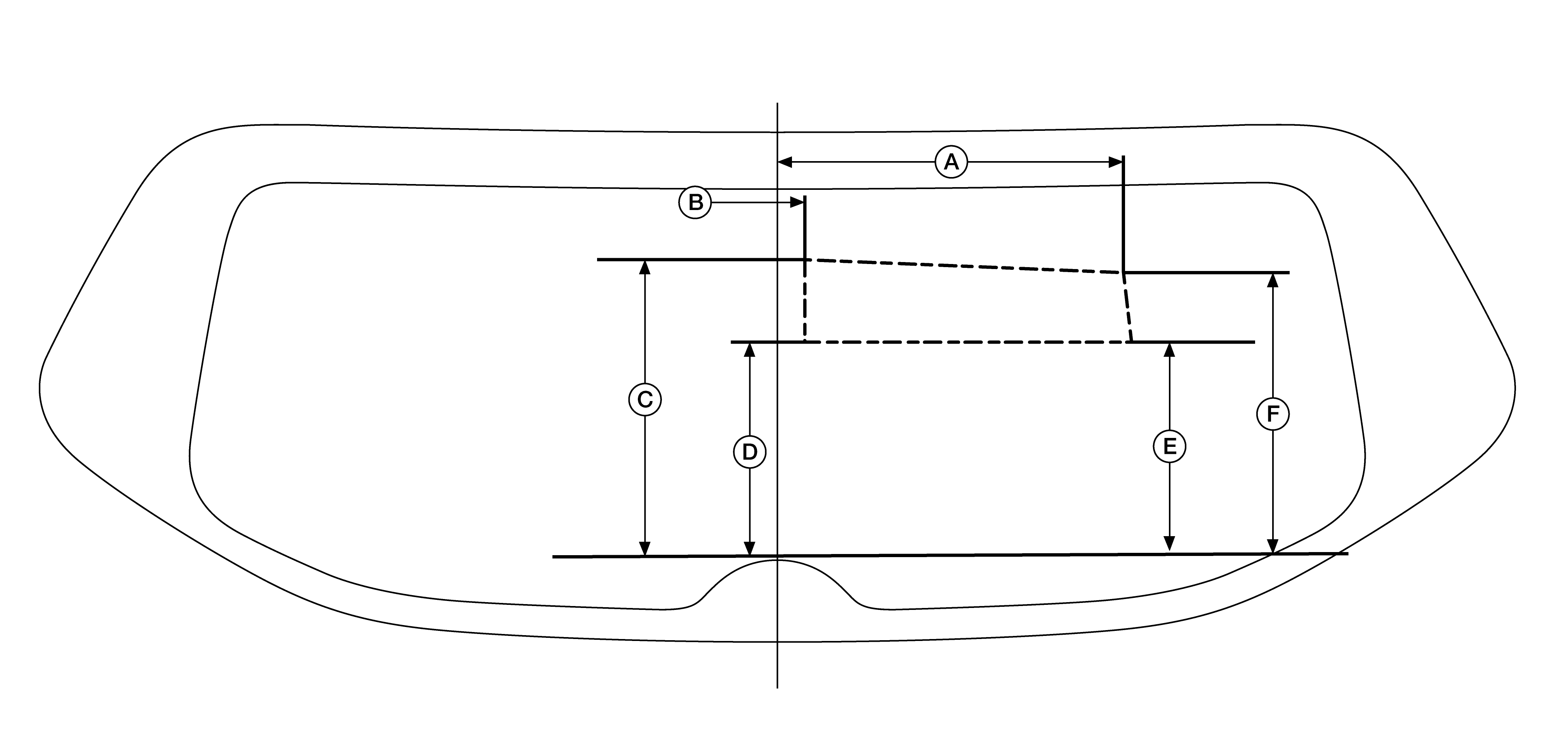

If operating properly, spray positions should match the positions shown, below. If spray positions do not match, confirm the rear washer nozzle is properly seated and working properly. If the spray positions still do not match as shown below, then replace the rear washer nozzle. Refer to Removal and Installation - Rear Washer Nozzle .
|
A. |
328 mm (12.9 in) |
B. |
88 mm (3.5 in) |
C. |
301 mm (11.9 in) |
|
D. |
228 mm (9.0 in) |
E. |
236 mm (9.3 in) |
F. |
290 mm (11.4 in) |
