Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

With Lane Departure Warning

Release clips using suitable tool and remove the lane camera cover (LH)
Release clips using suitable tool and remove the lane camera cover (RH).

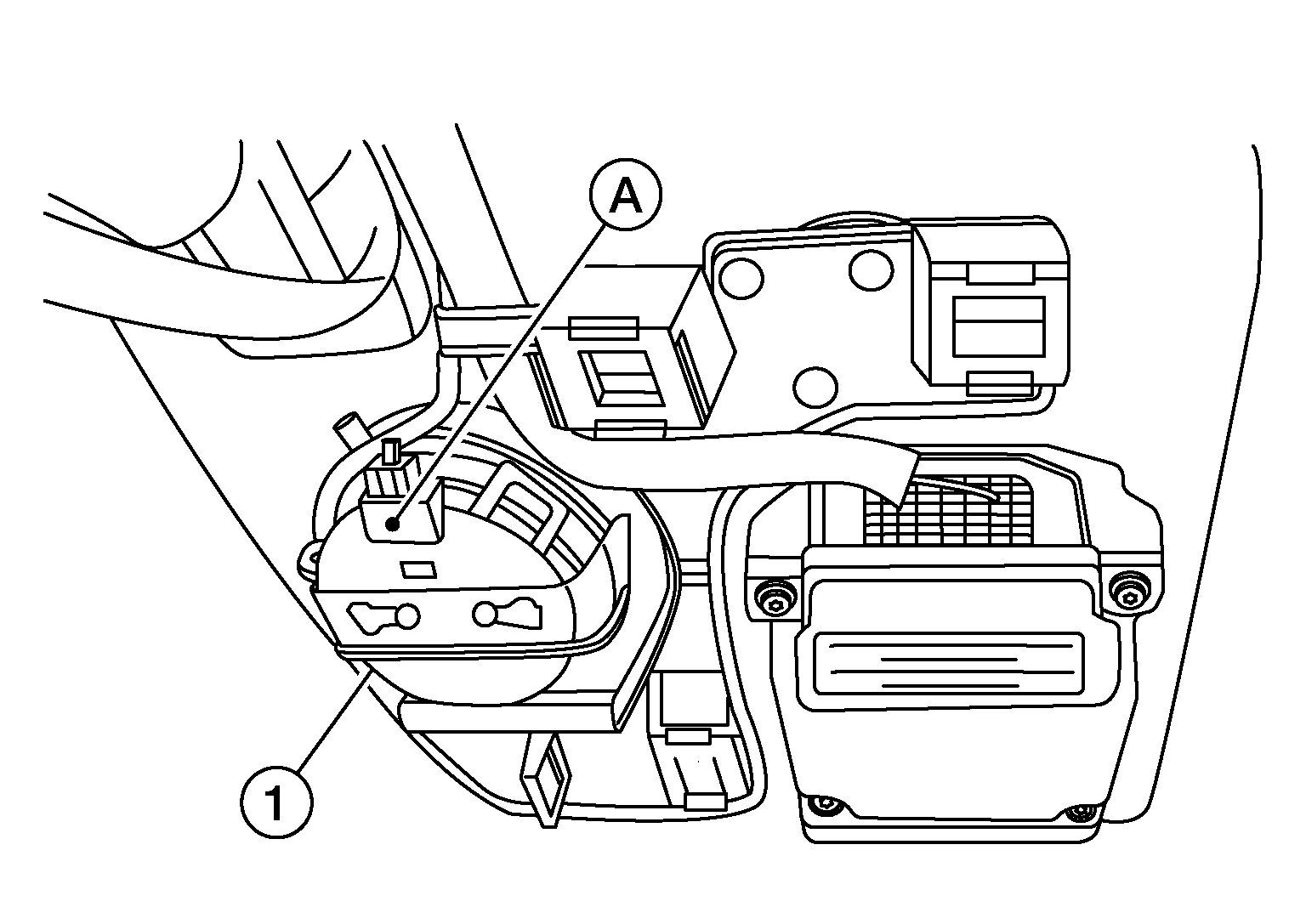

Disconnect harness connector (A) from the rain sensor (1).

Courtesy of NISSAN NORTH AMERICA, INC.
Release the metal spring clips, then remove the rain sensor (1) from the windshield glass.

Without Lane Departure Warning

Release the rain sensor cover pawls using a suitable tool, then remove the rain sensor finisher.
Disconnect harness connector from the rain sensor.
Release the metal spring clips, then remove the rain sensor from the windshield glass.
