Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

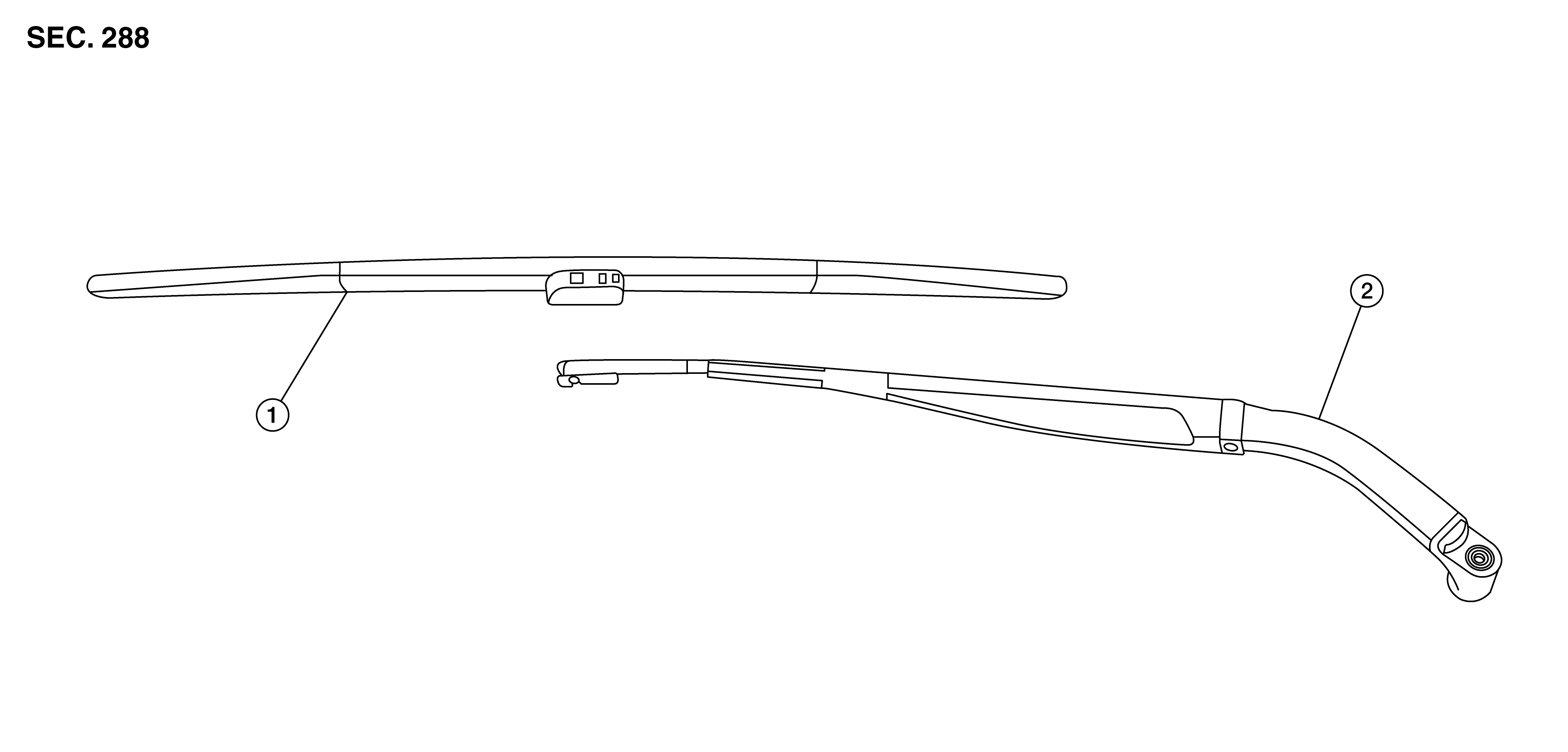

GNSALLIA1101Z-101Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front wiper blade

2.

Front wiper arm
