Front Wiper Arm: Adjustment
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
WIPER BLADE POSITION ADJUSTMENT

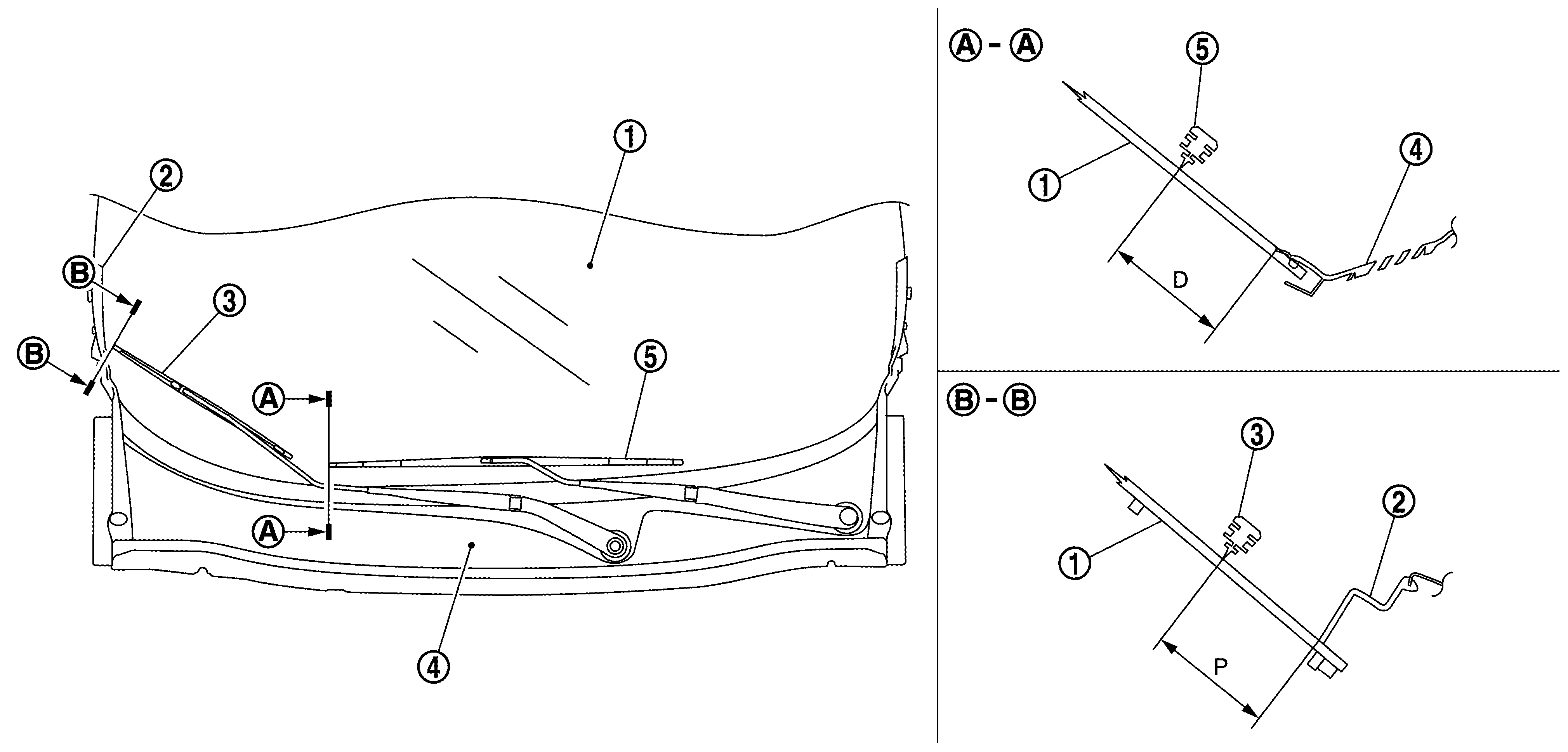

Clearance between the end of cowl top cover/ front fender cover and the top of front wiper blade center.
|
1. |
Windshield glass |
2. |
Front fender cover |
3. |
Front wiper blade (RH) |
|
4. |
Cowl top cover |
5. |
Front wiper blade (LH) |
Standard clearance
|
D |
: 72.0 +/- 7.5 mm (2.05 +/- 0.30 in) |
|
P |
: 52.0 +/- 7.5 mm (2.83 +/- 0.30 in) |
