Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

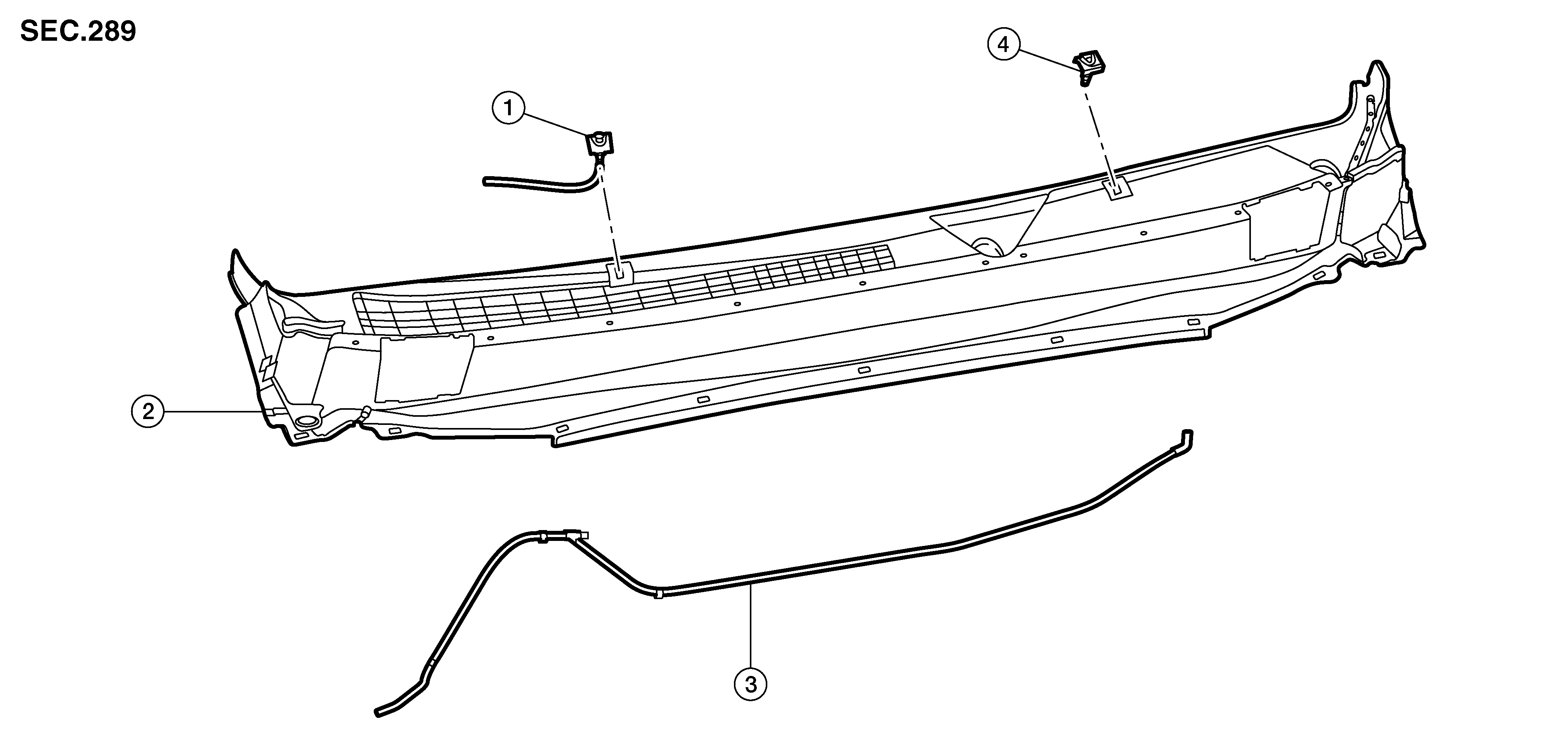

GNSAWLIA2982Z-982Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front washer nozzle (RH)

2.

Cowl top cover

3.

Front washer tube

4.

Front washer nozzle (LH)
