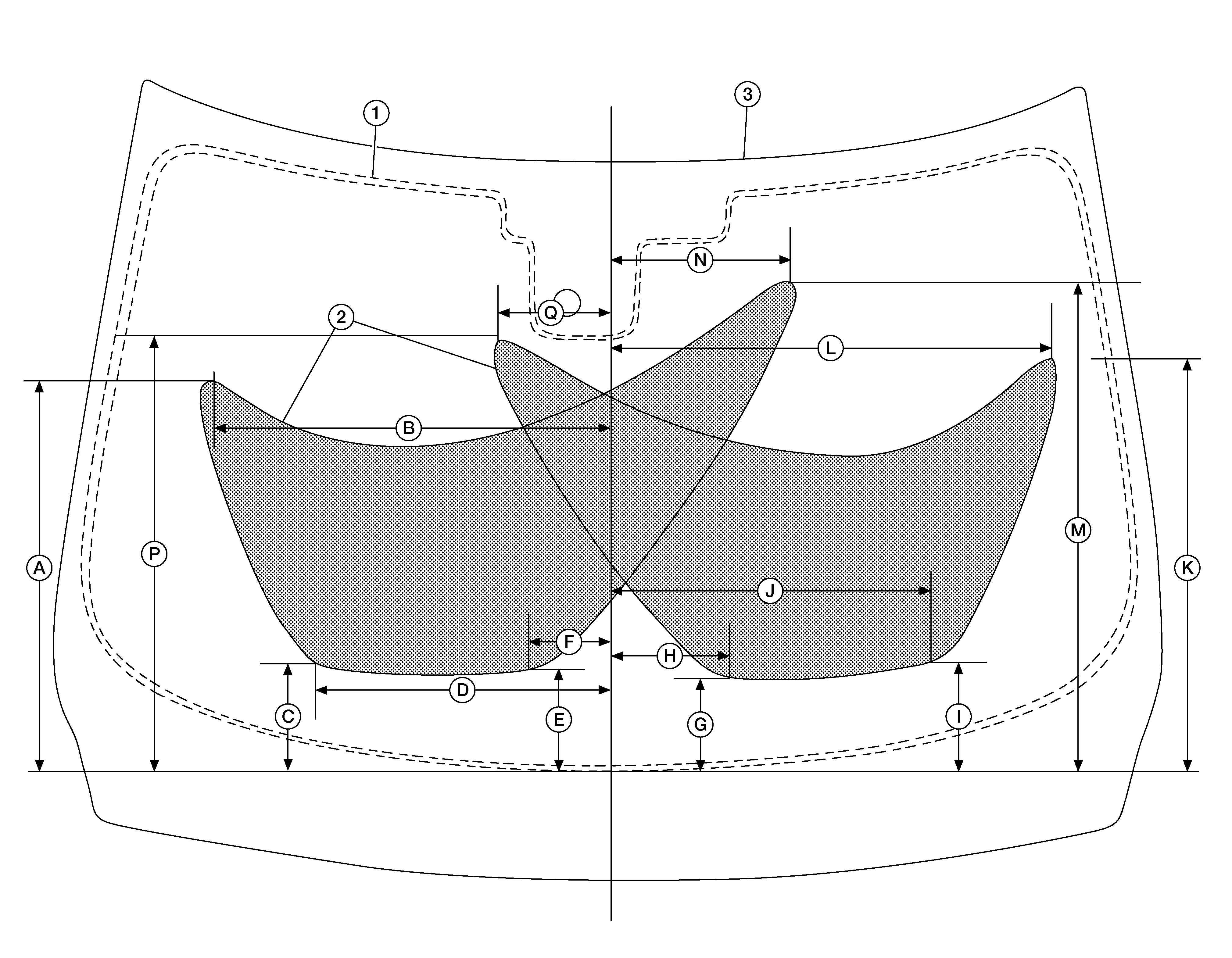

Washer Nozzle Spray Pattern
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Black print area |
2. |
Washer fluid spray pattern |
3. |
Windshield glass |
|
A. |
579 mm (22.8 in) |
B. |
582 mm (22.9 in) |
C. |
141 mm (5.6 in) |
|
D. |
401 mm (15.8 in) |
E. |
147 mm (5.8 in) |
F. |
104 mm (4.1 in) |
|
G. |
136 mm (5.4 in) |
H. |
163 mm (6.4 in) |
I. |
157 mm (6.2 in) |
|
J. |
443 mm (17.4 in) |
K. |
618 mm (24.3 in) |
L. |
626 mm (26.6 in) |
|
M. |
810 mm (31.9 in) |
N. |
332 mm (13.1 in) |
P. |
666 mm (26.2 in) |
|
Q. |
205 mm (8.1 in) |
