Washer Nozzle Adjustment
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|

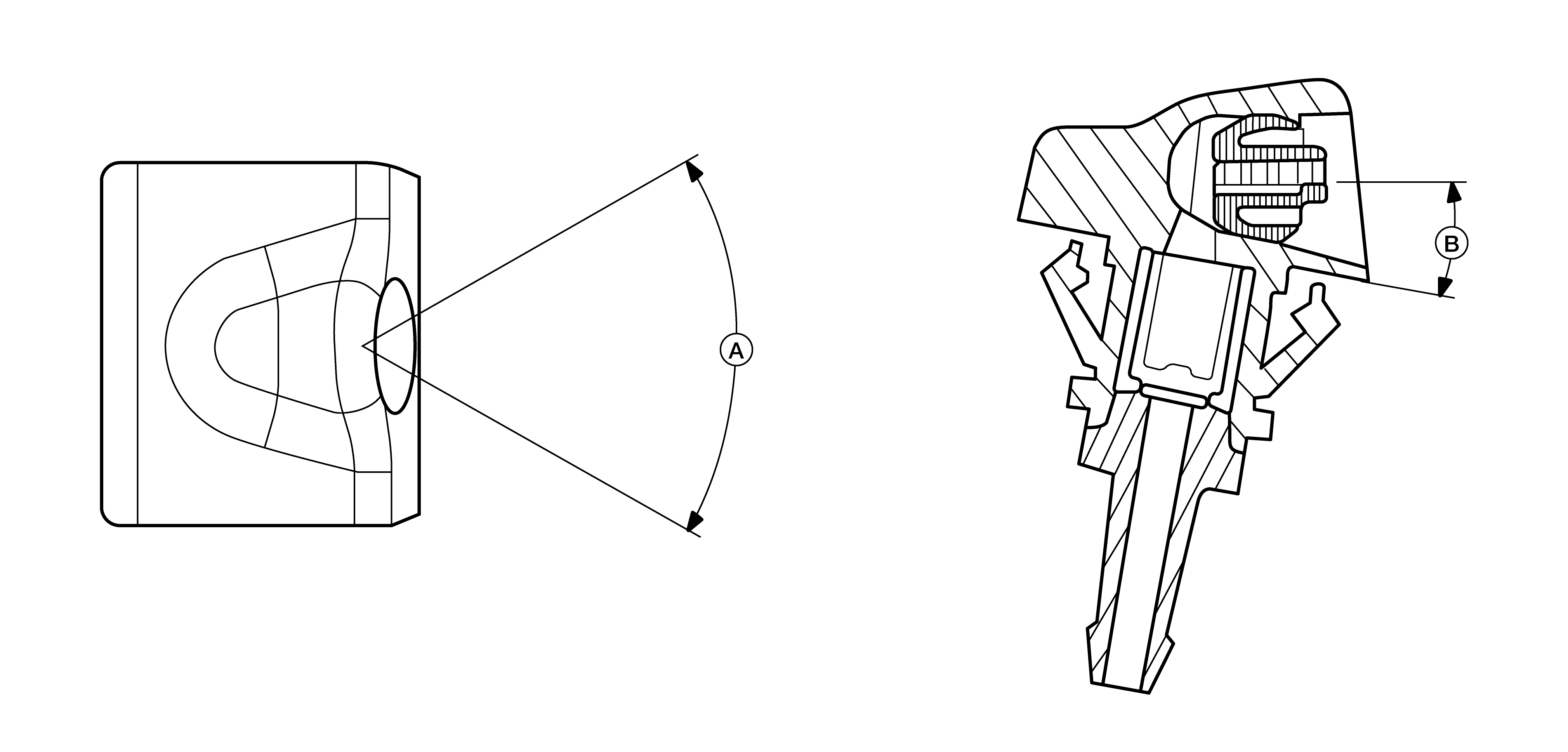

A.
|
60 deg. +/- 7.5 deg.
|
B.
|
11.0 deg. +/- 1.0 deg.
|

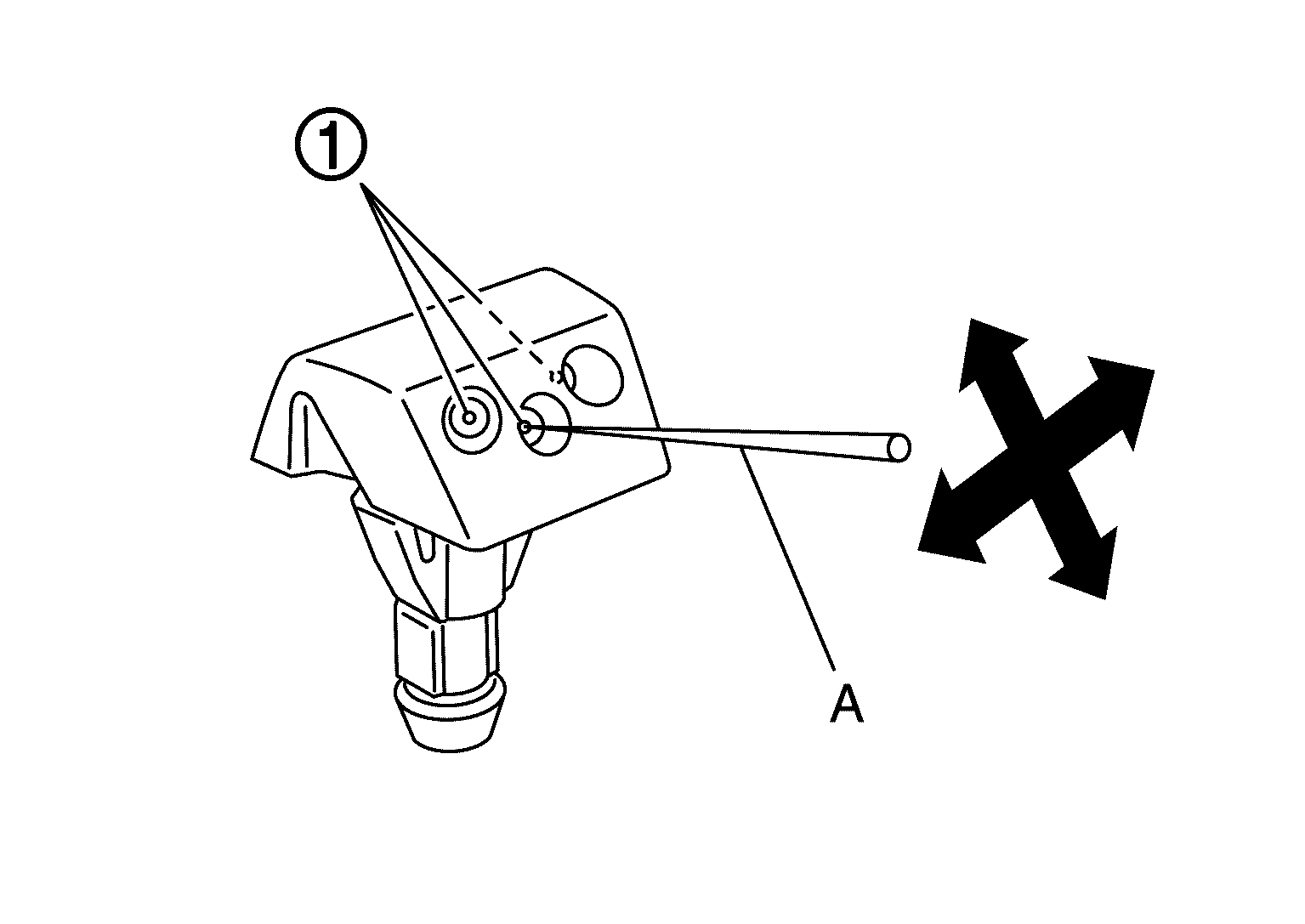

- Insert a suitable tool (A) into the spray opening (1) and move up/down and left/right to adjust the spray position.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
NOTE:
If wax or dust gets into the nozzle, remove wax or dust with a suitable tool (A).
