Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

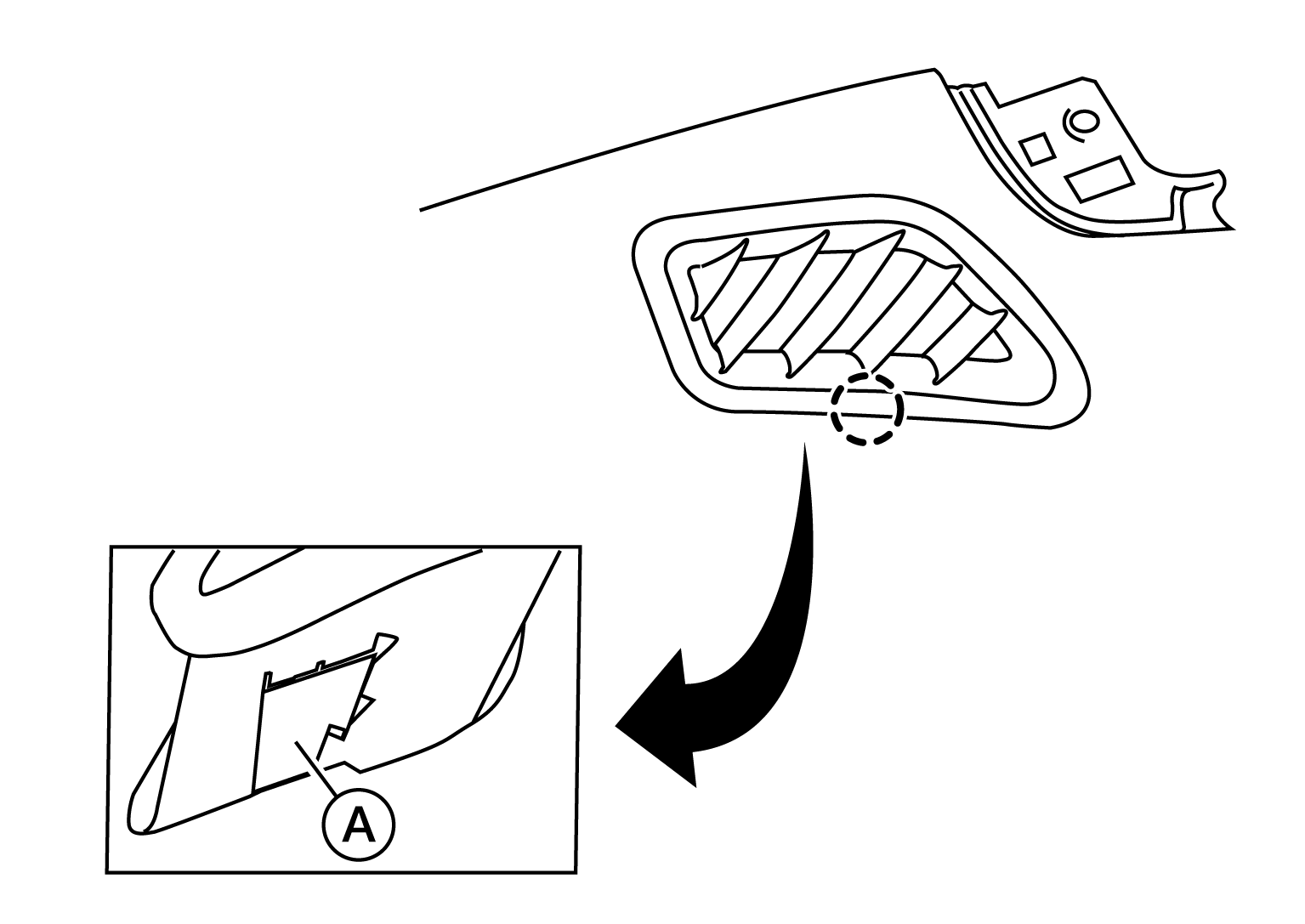

  1. Release the side defroster grille pawl (A) using a suitable tool.
    GNSDB112227Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

    CAUTION: Apply protective tape around the instrument panel and side defroster grille prior to removal to prevent components from damage.
  2. Remove the side defroster grille.
