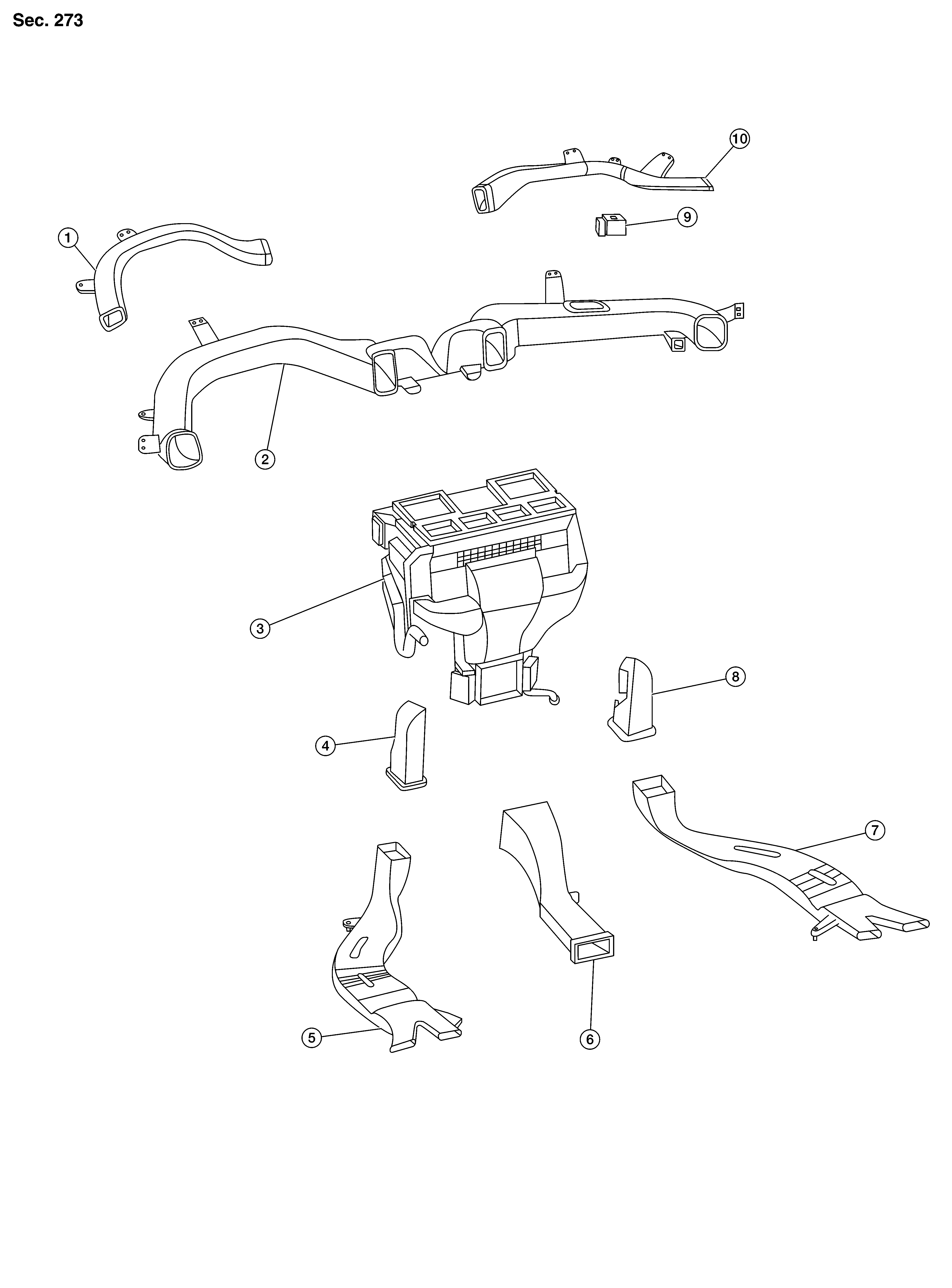

Exploded View: Front
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Side defroster duct (LH) |
2. |
Center ventilator duct |
3. |
Front heating and cooling unit assembly |
|
4. |
Front floor connecting duct LH |
5. |
Front floor duct (LH) |
6. |
Adaptor duct (to rear blower motor 1 unit assembly) |
|
7. |
Front floor duct (RH) |
8. |
Front floor connecting duct (RH) |
9. |
Ionizer (if equipped) |
|
10. |
Side defroster duct (RH) |
