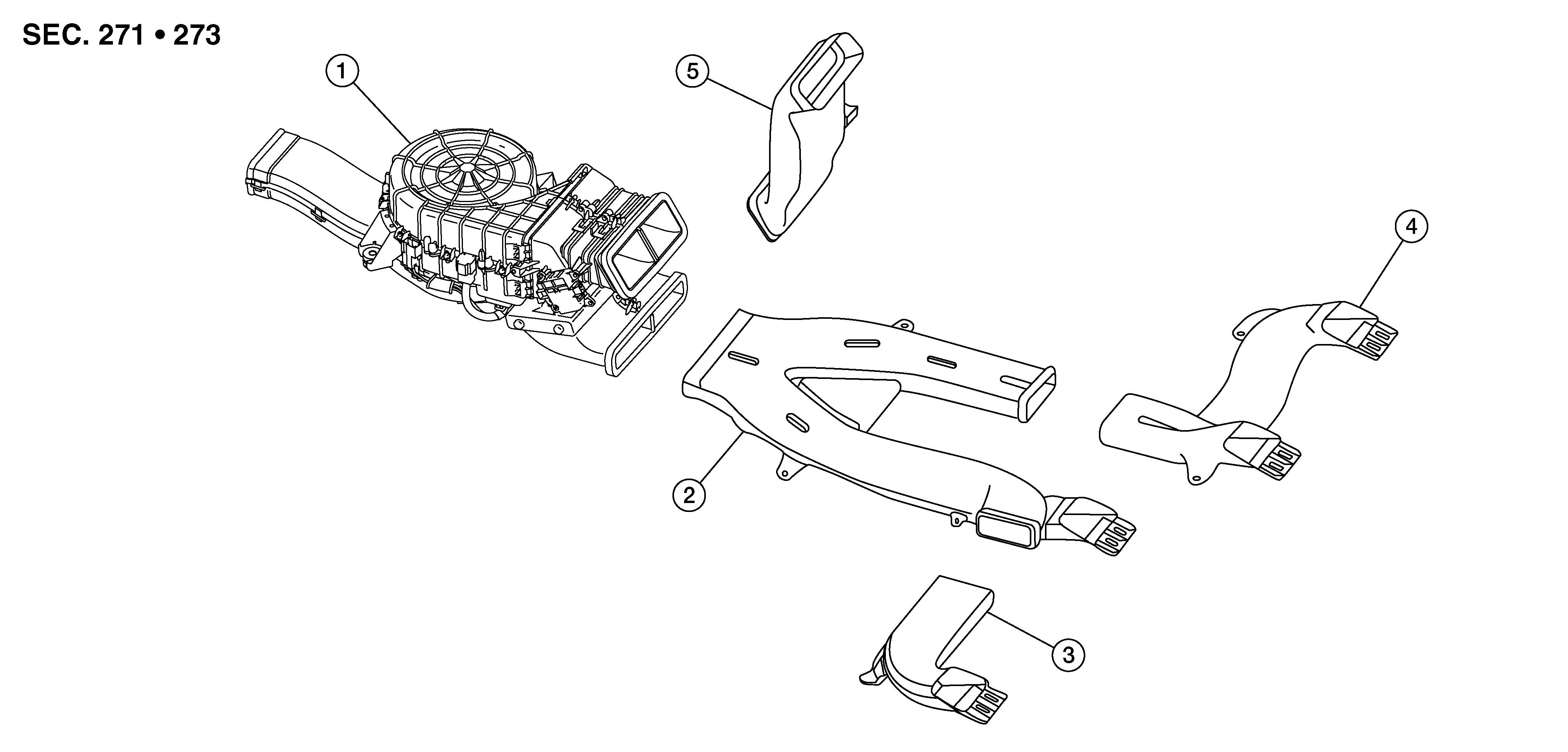

Exploded View: Center
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Rear blower motor 1 unit assembly
|
2.
|
Center floor connecting duct
|
3.
|
Center floor duct (LH)
|
|
4.
|
Center floor duct (RH)
|
5.
|
Rear center ventilator duct
|
