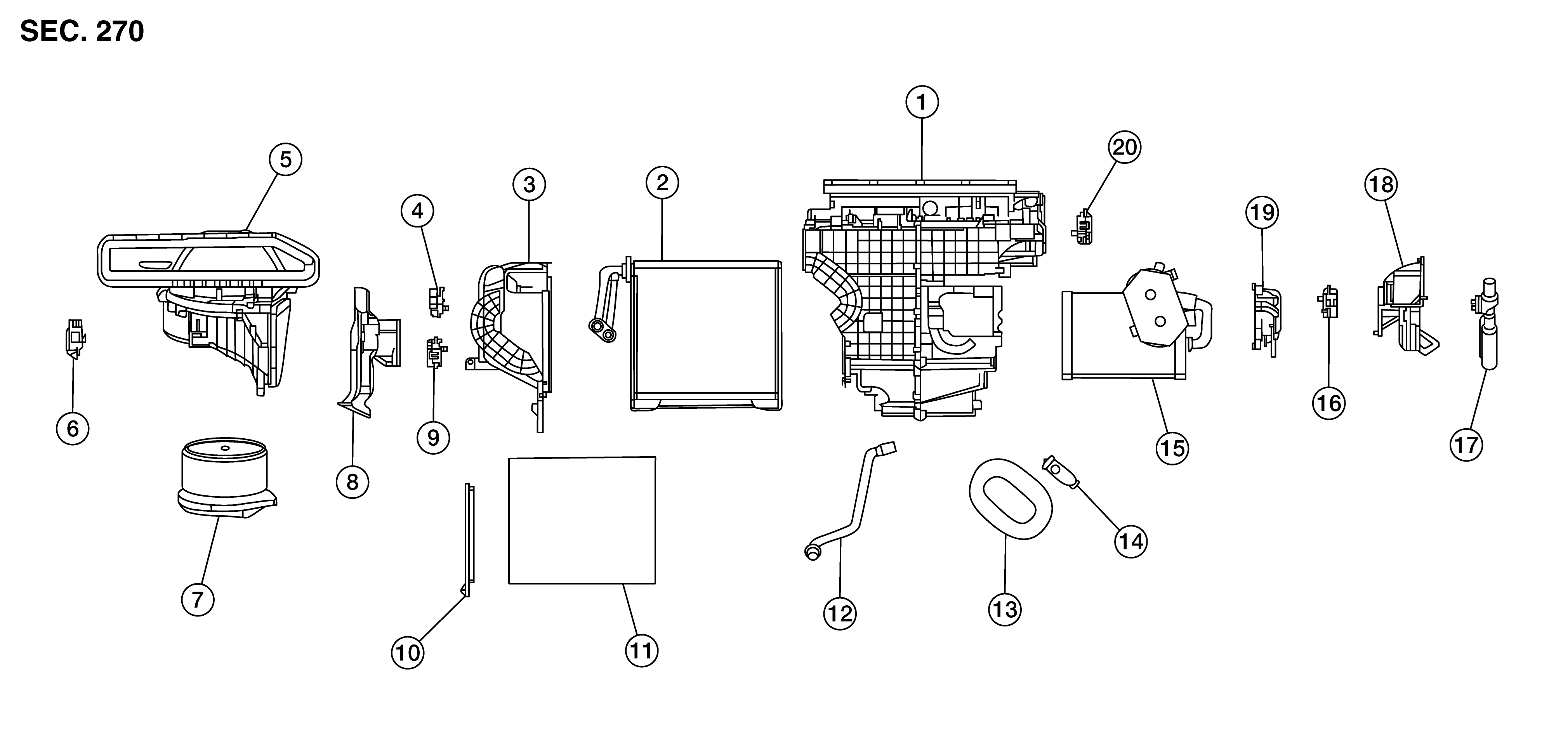

Exploded View: Disassembly
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
Front heating and cooling unit assembly |
2. |
Front evaporator |
3. |
Heater case side cover |
|
4. |
Air mix door motor (passenger) |
5. |
Distribution module |
6. |
Intake door motor |
|
7. |
Front blower motor |
8. |
Upper floor connecting duct RH |
9. |
Air mix door motor (rear) |
|
10. |
In-cabin microfilter cover |
11. |
In-cabin microfilter |
12. |
Drain hose |
|
13. |
Expansion valve grommet |
14. |
Expansion valve |
15. |
Front heater core |
|
16. |
Air mix door motor (driver) |
17. |
Aspirator hose |
18. |
Upper floor connecting duct LH |
|
19. |
Heater core pipe cover |
20. |
Mode door motor |
