Third Row Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the third row seat. Refer to Removal and Installation .
  2. Release the pawls and remove the tether anchor finisher.
  3. Remove the screw and the seatback cargo hook.
  4. Press both headrest holder lock buttons in and lift headrest up, and remove.
  5. Remove the seatback board.

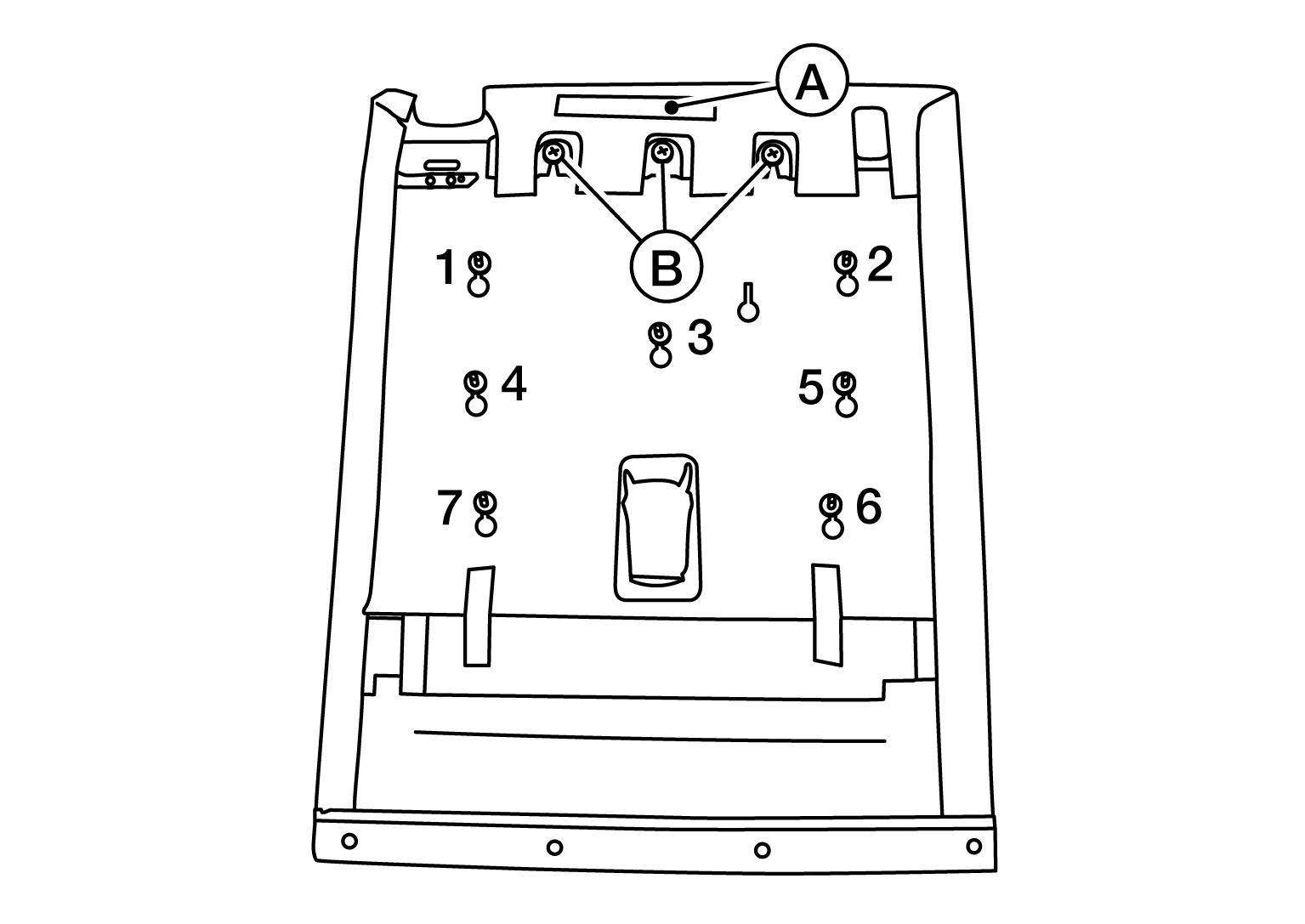

    GNSDB116096Courtesy of NISSAN NORTH AMERICA, INC.
    NOTE: Backside of seatback board shown for clarity.
    1. Release the hook fastener (A) along the upper edge.
    2. Release three clips (B) that retain the seatback board to the seat frame assembly.
    3. Release the remaining clips in the order shown.
  6. Remove the seatback trim and seatback pad.

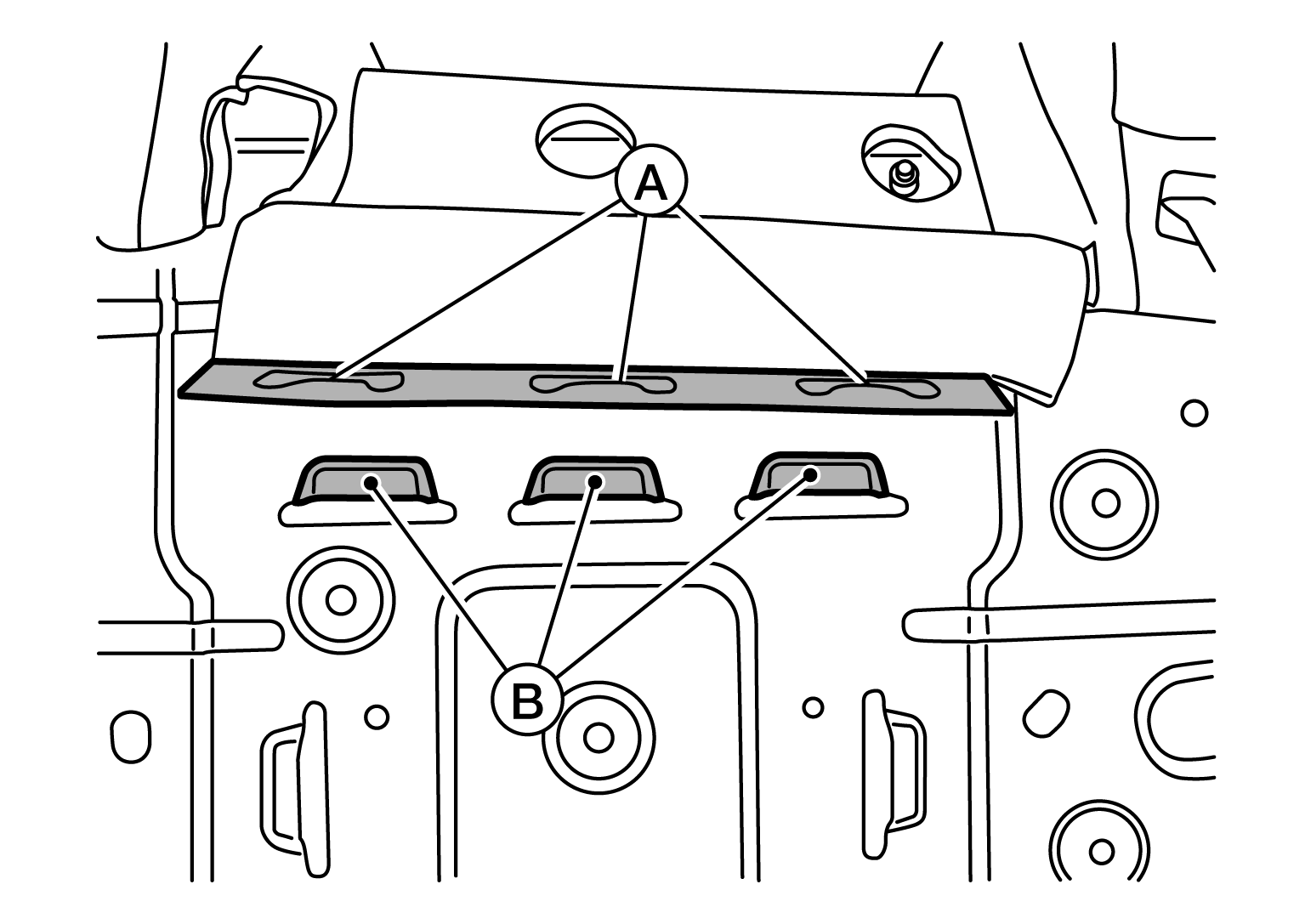

    GNSDB119636Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release retainer strip (A) from the seat frame assembly slots (B) on the top edge of the seat frame assembly.
    2. Repeat at the lower and LH/RH edges.
    3. Reach up behind the seatback pad, release the headrest holder locks as shown and remove the headrest holders.
      GNSJMJIA4073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).
    4. Remove the seatback pad and seatback trim as an assembly from the seat frame assembly.
  7. Separate the seatback trim from the seatback pad.

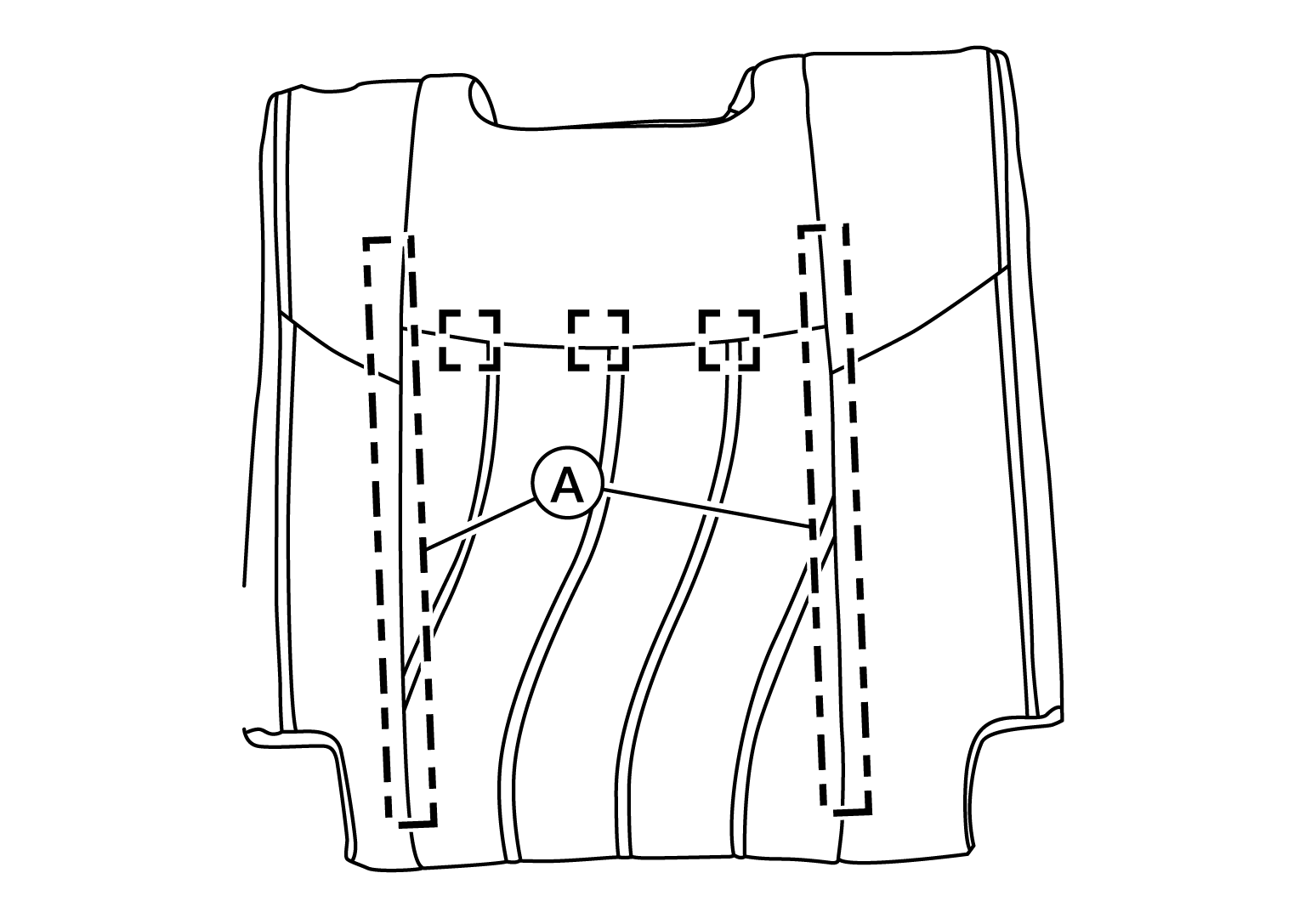

    GNSDB123300Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull seatback trim upward in front to release hook fasteners (A).
    2. Remove hog rings and separate the seatback trim from the seatback pad.
      NOTE: Remove all pieces of hog rings and discard them.

      SYMBOL : Hog ring

  8. Remove the screw and the seatback pull strap (except power seat).
  9. Remove the seatback release lever and cable.

    For manual seat

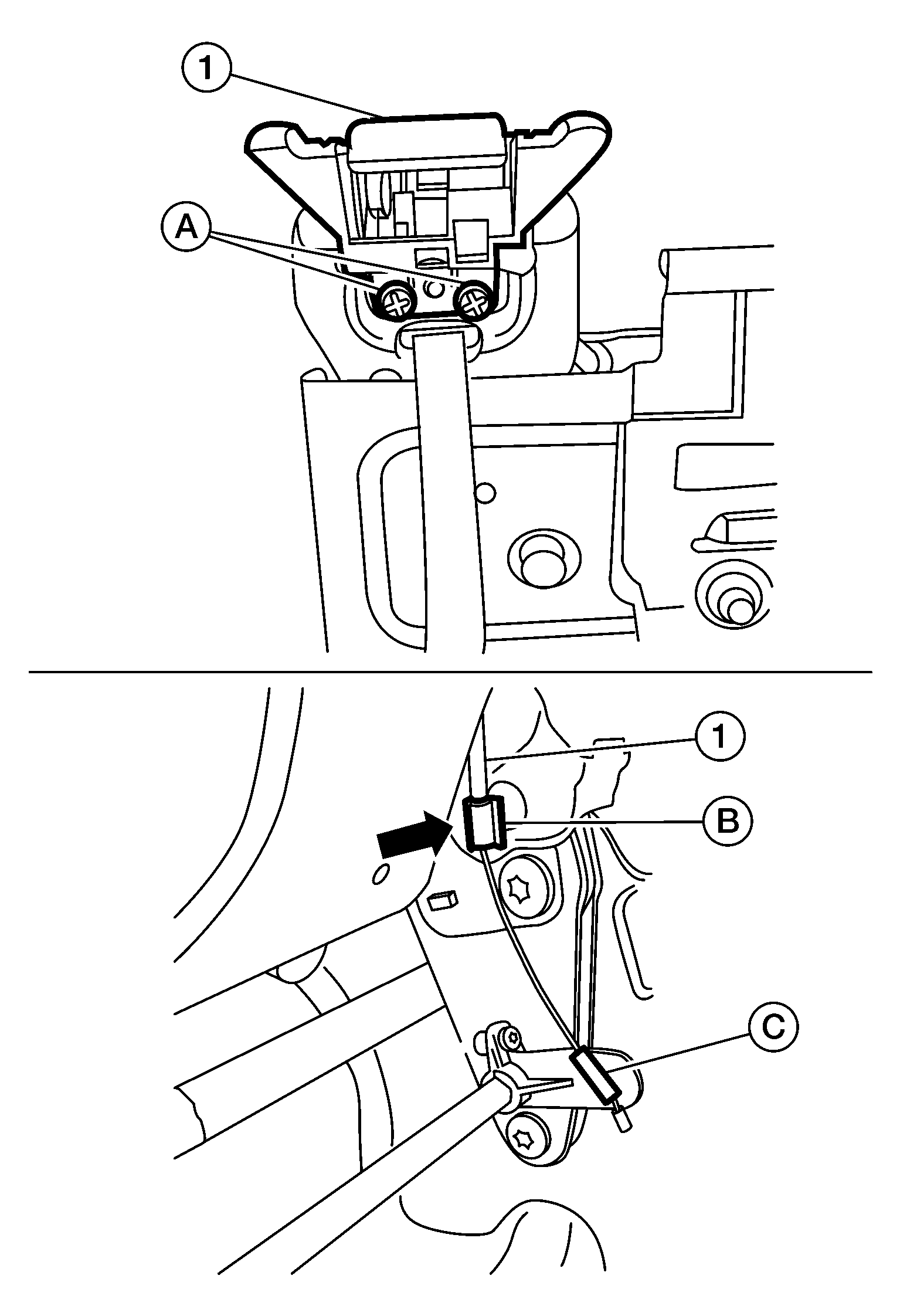

    1. Remove the screws (A) and unclip the cable from the seat frame assembly.
      GNSAWJIA1192Z-192Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Note the cable routing for correct installation.
    2. Release cable end (B) as shown from the seat frame assembly.
    3. Rotate cable end (C) and remove the seatback release lever and cable (1).

    For power seat

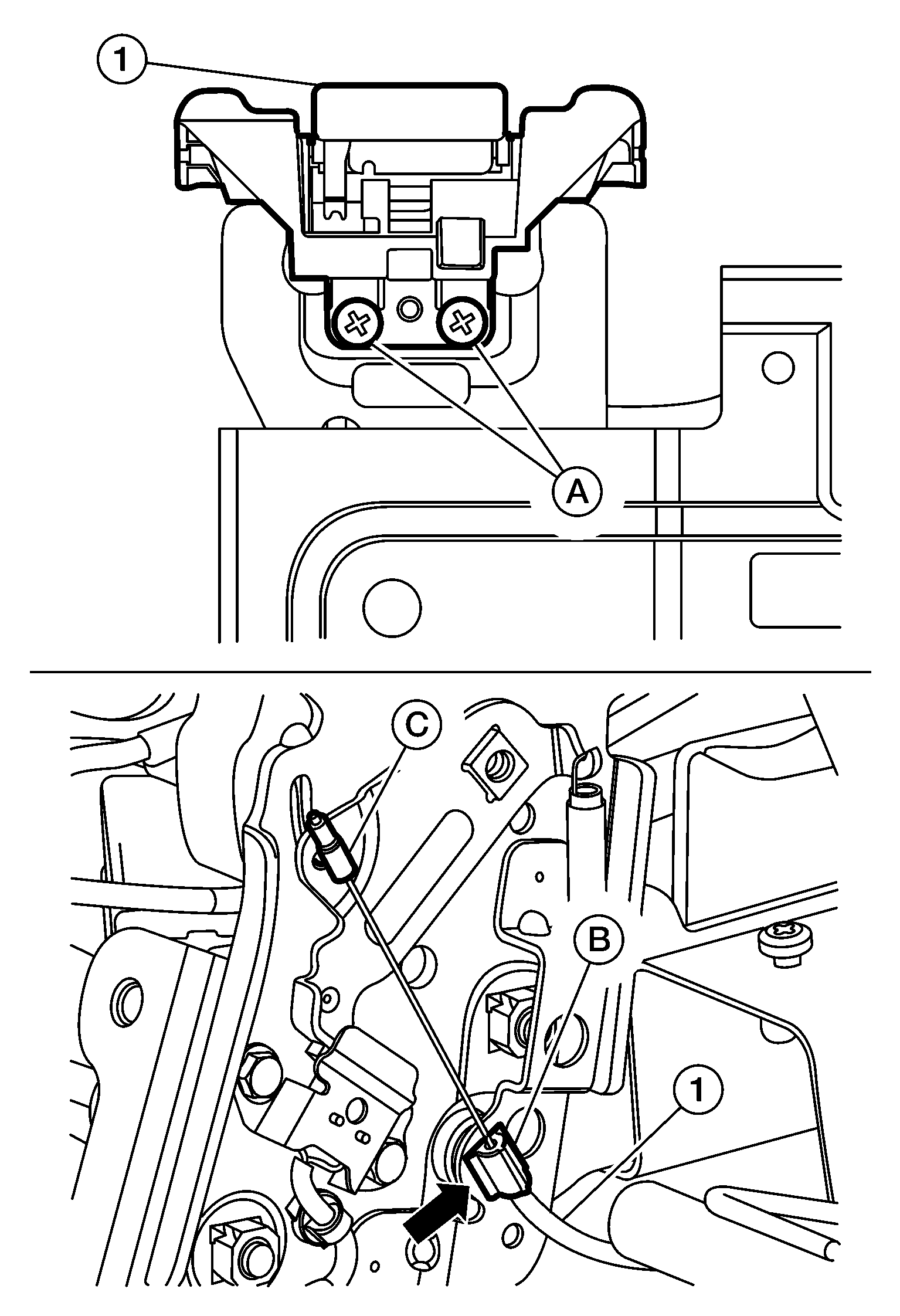

    1. Remove screws (A) and unclip the cable from the seat frame assembly.
      GNSDB114873Courtesy of NISSAN NORTH AMERICA, INC.
      CAUTION: Note the cable routing for correct installation.
    2. Release cable end (B) as shown from the seat frame assembly.
    3. Rotate cable end (C) and remove the seatback release lever and cable (1).
