RH Seat: Seatback: Disassembly

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH seat. Refer to Removal and Installation .
  2. Remove RH seat cushion. Refer to Seat Cushion .
  3. Remove the recline lever (3).
    GNSAWJIA0956Z-956Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove snap ring (2) upward using a suitable tool.
    2. Remove recline lever.
  4. Remove screw (SYMBOL ).
  5. Release pawls and metal clips, and remove the seat cushion outer finisher (RH) (1).

    SYMBOL : Pawl

    SYMBOL : Metal clip

  6. Remove screws (SYMBOL ), then release metal clips and remove the seat cushion latch finisher (1).
    GNSALJIA0856Z-856Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  7. Remove the rear finisher.
  8. Release the seatback heater harness (if equipped) from attachments.
    NOTE: Note harness attachments and routing location for correct installation.
  9. Remove the headrest.

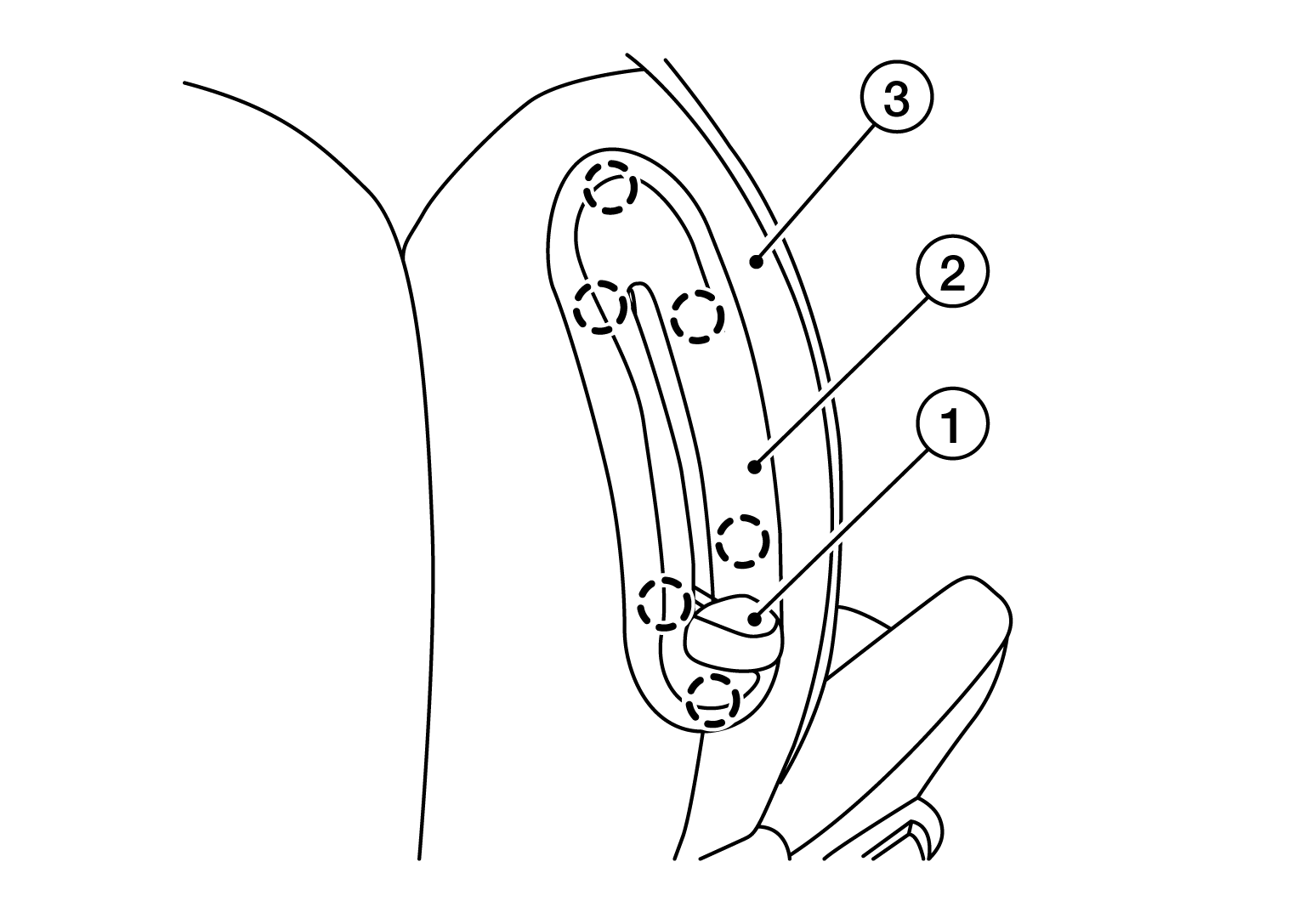

  10. Remove EZ entry lever finisher (1) by pulling firmly.
    GNSDB114919Courtesy of NISSAN NORTH AMERICA, INC.
  11. Release pawls and remove EZ entry finisher (2) from the seatback (3).

    SYMBOL : Pawl

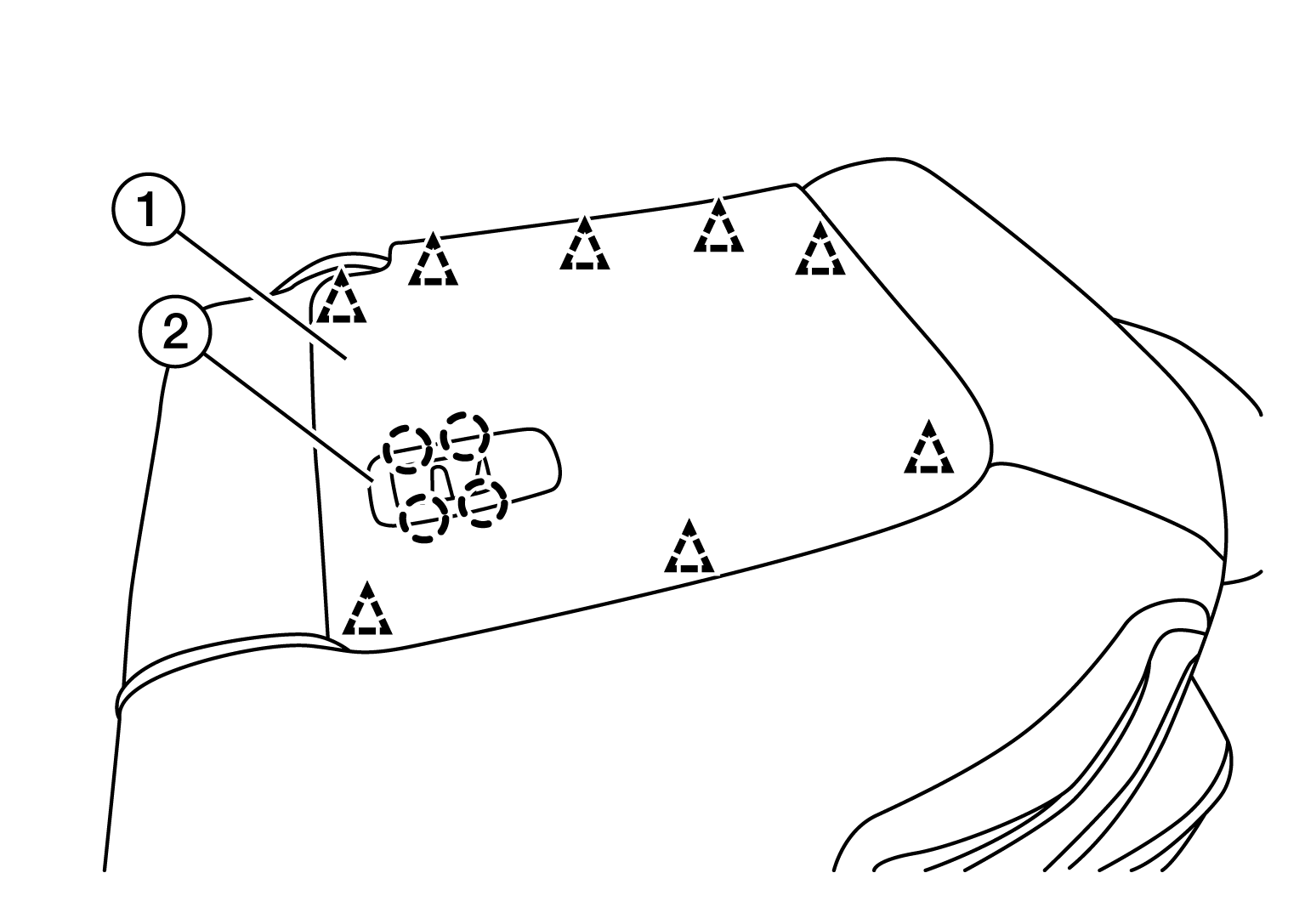

  12. Release pawls and remove the tether anchor finisher (2).
    GNSDB119843Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl

  13. Release clips and remove the seatback board (1).

    SYMBOL : Clip

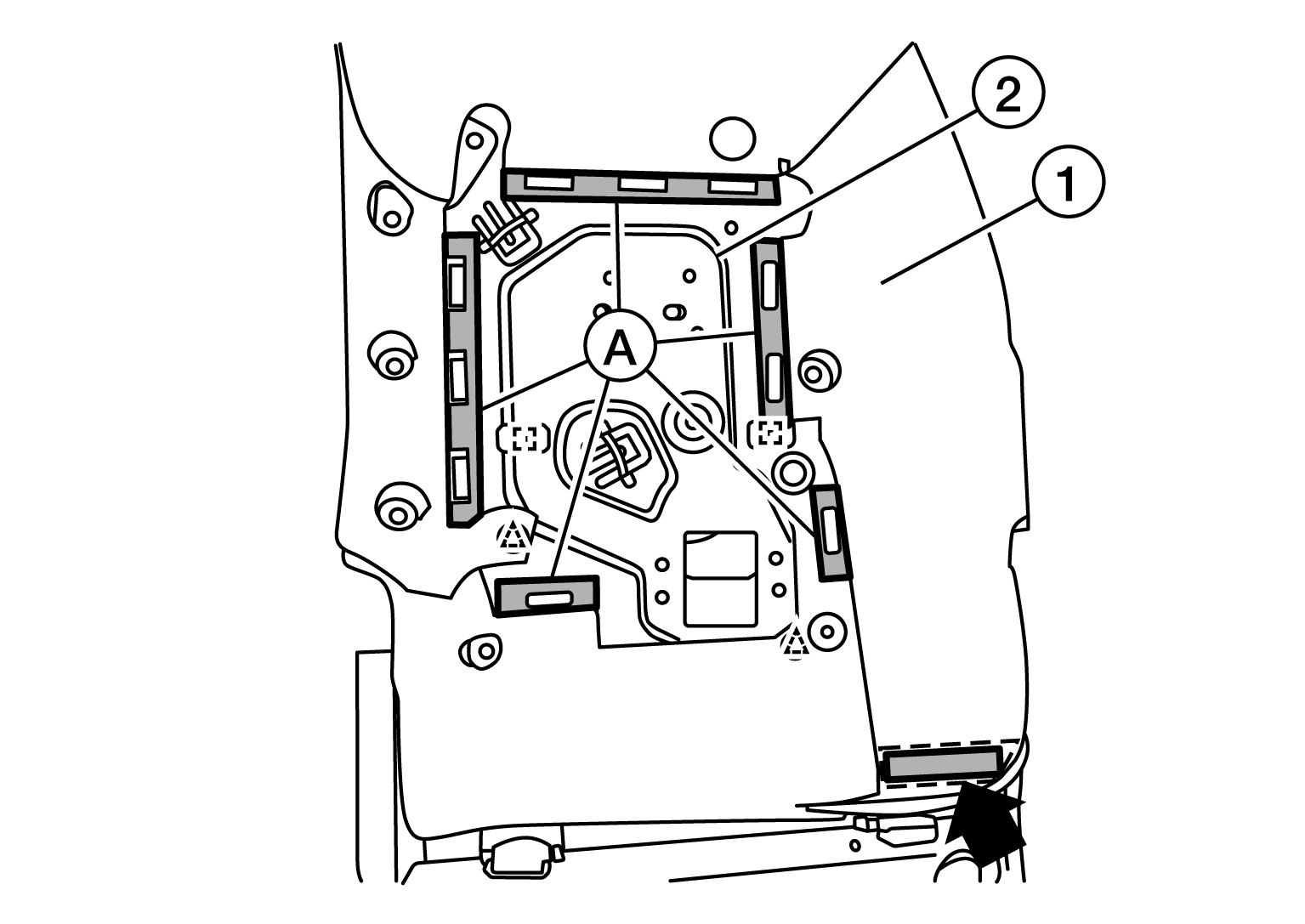

  14. Remove the seatback pad and seatback trim (1).
    GNSDB120506Courtesy of NISSAN NORTH AMERICA, INC.
    1. Release the J-clip retainer (SYMBOL ) at the rear lower edge of seatback.
    2. Remove two clips that retain seatback trim in place.

      SYMBOL : Clip

    3. Remove two hog rings that retain seatback pad in place.
      NOTE: Remove all pieces of hog rings and discard them.

      SYMBOL : Hog ring

    4. Release retainer strips (A) from the seat frame assembly (2).
    5. Release clips that retain trim behind EZ entry finisher.
    6. Remove the seatback pad and seatback trim as an assembly from the seat frame assembly.
  15. Reach up behind the seatback pad, release the headrest holder locks as shown and remove the headrest holders.
    GNSJMJIA4073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).

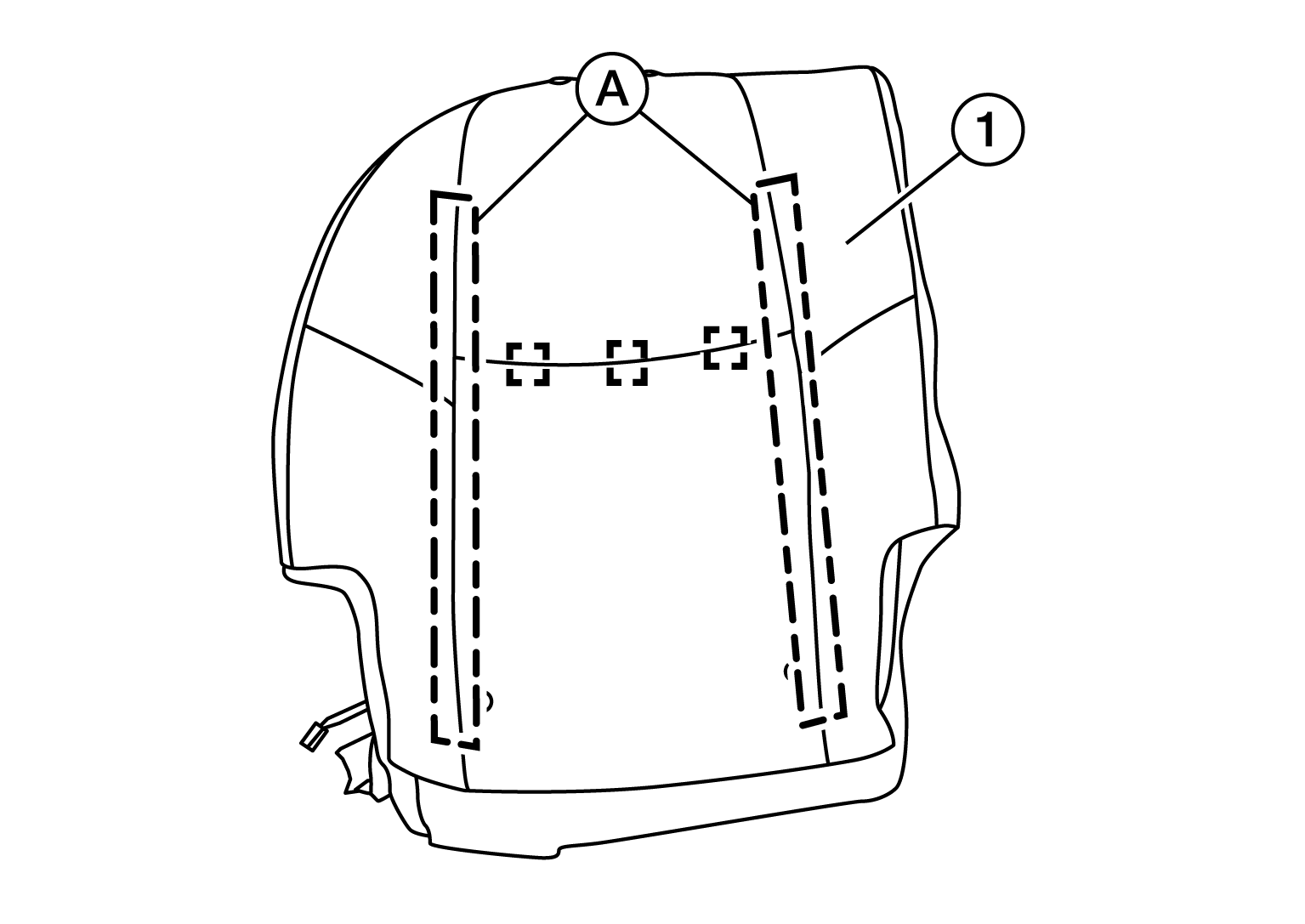

  16. Separate the seatback trim (1) from the seatback pad.
    GNSDB122625Courtesy of NISSAN NORTH AMERICA, INC.
    1. Pull seatback trim upward in front to release hook fasteners (A).
    2. Remove hog rings and separate the seatback trim from the seatback pad.
      NOTE: Remove all pieces of hog rings and discard them.

      SYMBOL : Hog ring

    3. Route the seatback heater harness (if equipped) through the opening in the seatback trim.
