Seat Cushion: Disassembly

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove RH seat cushion. Refer to Seat Cushion .
  2. Remove support strut from RH seat cushion.
  3. Remove the seat cushion pad and seat cushion trim (1).

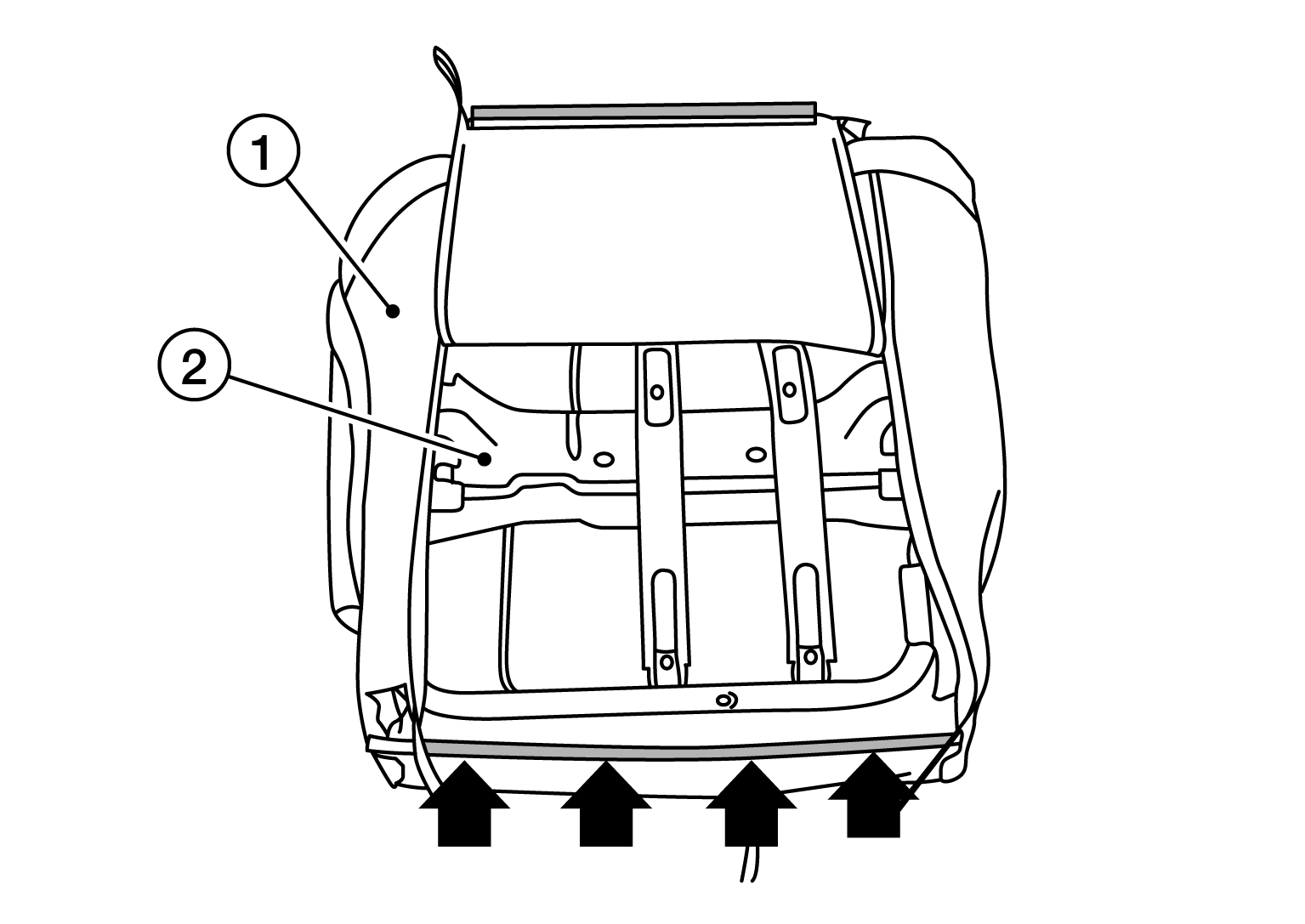

    GNSALJIA0875Z-875Courtesy of NISSAN NORTH AMERICA, INC.
    1. Unzip the back trim cover and release the J-clip retainer (SYMBOL ).
    2. Remove the seat cushion pad and seat cushion trim as an assembly from the seat cushion frame (2).
  4. Separate the seat cushion trim (1) from the seat cushion pad.

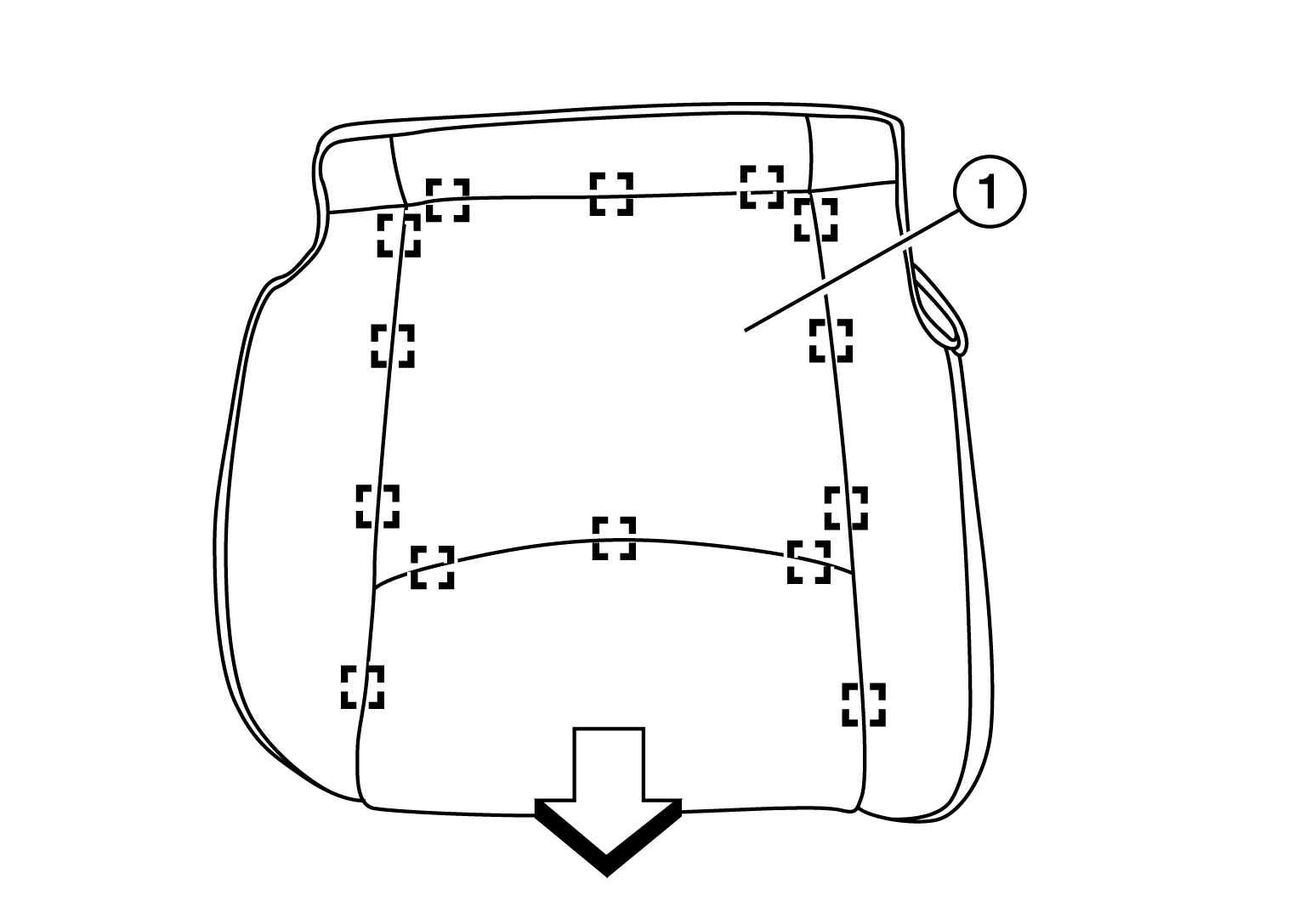

    GNSALJIA0873Z-873Courtesy of NISSAN NORTH AMERICA, INC.
    1. Remove hog rings and separate the seat cushion trim from the seat cushion pad.
      NOTE: Remove all pieces of hog rings and discard them.

      SYMBOL : Hog ring

      SYMBOL : Front

    2. Route the seat cushion heater harness (if equipped) through the opening in the seat cushion trim.
