Lumbar Support Motor

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

With power supplied to lumbar support switch, the lumbar support motor operates the forward and backward movement of seatback support.

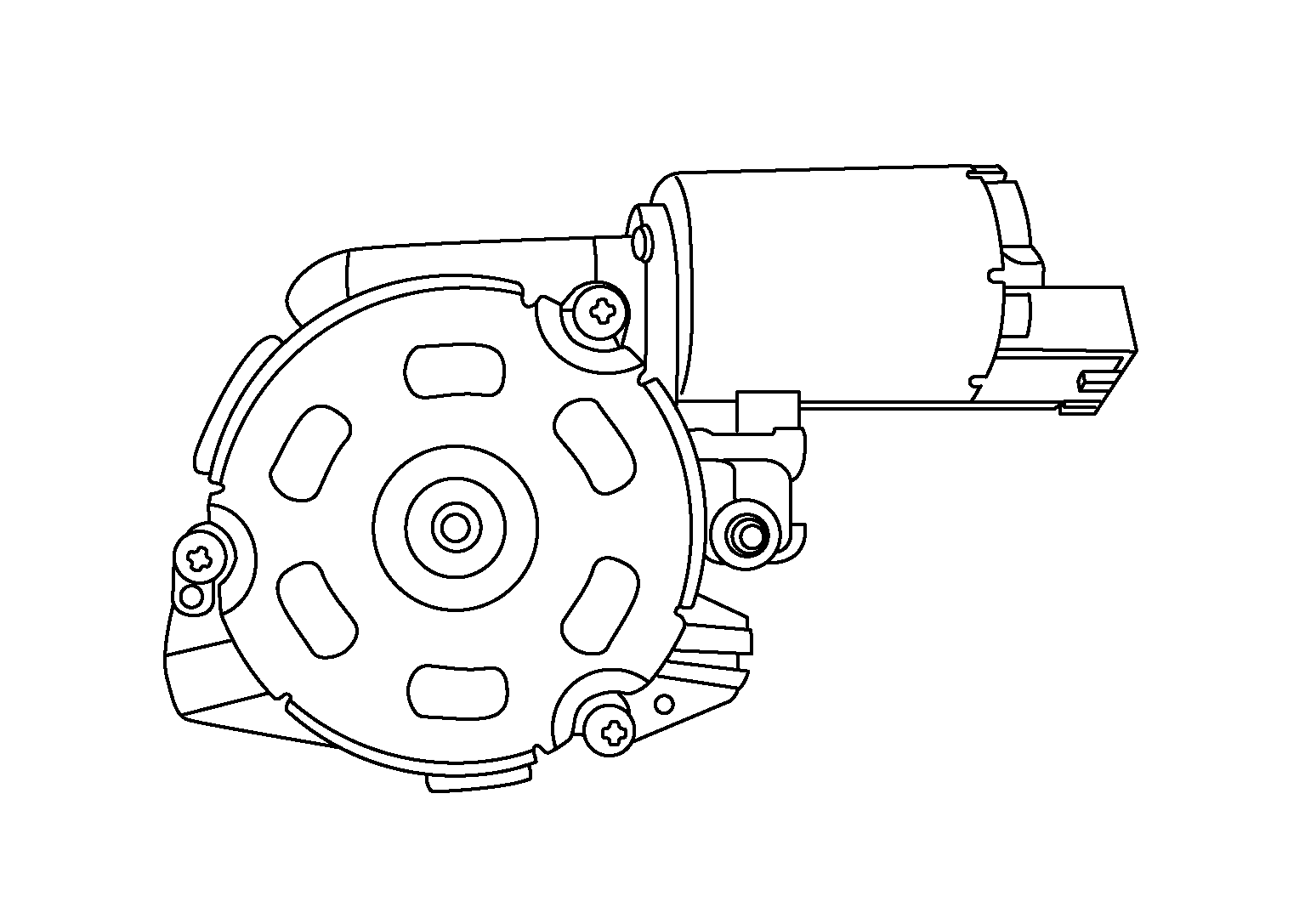

GNSALJIA1608Z-608Courtesy of NISSAN NORTH AMERICA, INC.
