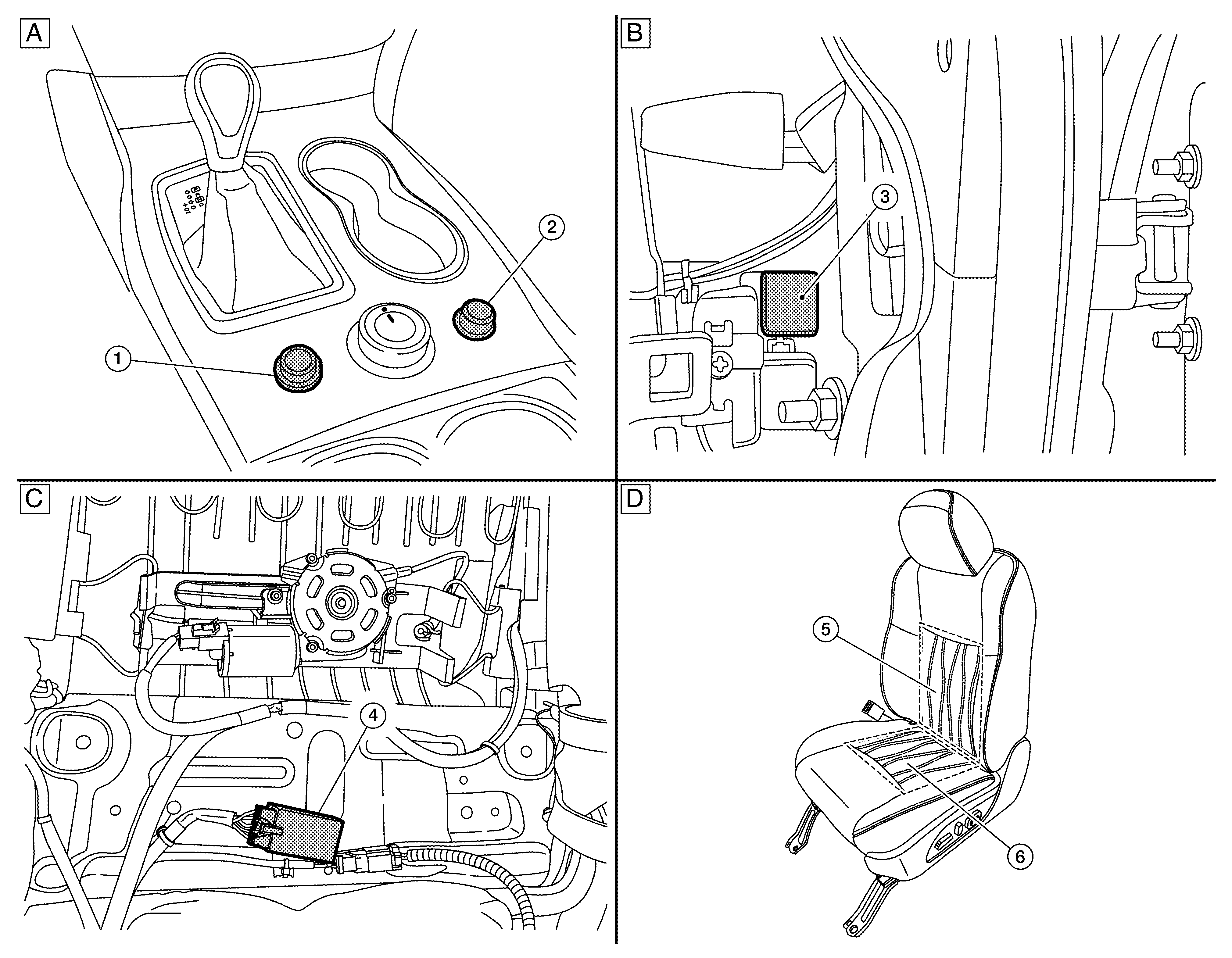

Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
A. |
Front of center console |
B. |
RH side of instrument panel (view with instrument panel removed) |
C. |
LH front seat (view with seat removed) (RH similar) |
|
D. |
LH front seat (RH similar) |
|
No. |
Component |
Function |
|
1. |
Front heated seat switch LH |
Refer to Front Heated Seat Switch . |
|
2. |
Front heated seat switch RH |
|
|
3. |
Heated seat relay |
Heated seat relay supplies power to the heated seat control units. |
|
4. |
Heated seat control unit LH |
Refer to Heated Seat Control Unit . |
|
5. |
Seat heater (back) |
Refer to Seat Heater . |
|
6. |
Seat heater (cushion) |
