Component Parts Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|

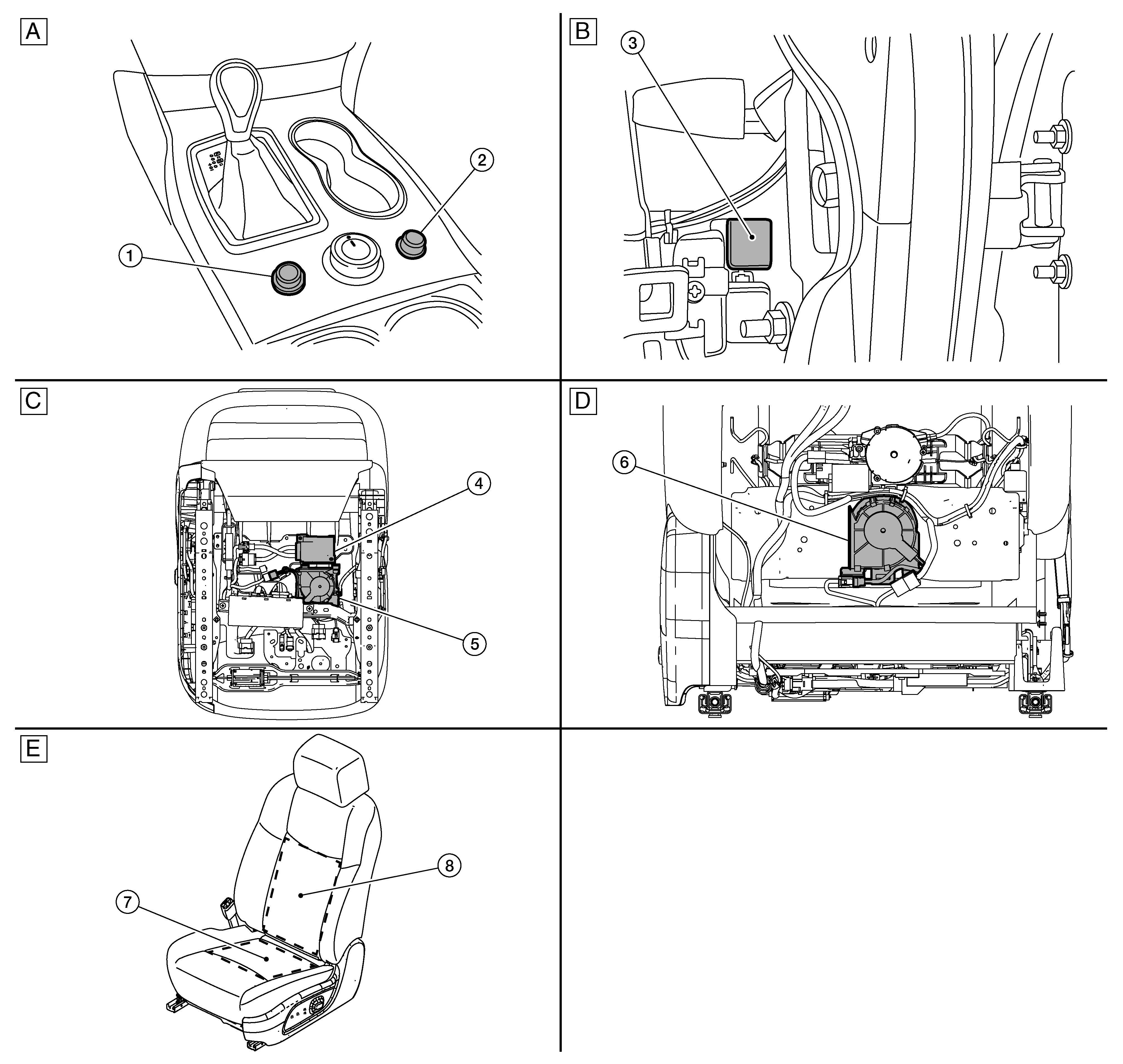

A. |
Front of center console |
B. |
RH side of instrument panel (view with instrument panel removed) |
C. |
LH seat (view with seat removed) (RH similar) |
|
D. |
LH seat (view with seat removed) (RH similar) |
E. |
LH seat (RH similar) |
||
|
No. |
Component |
Function |
|
1. |
Climate controlled seat switch (LH) |
Refer to Climate Controlled Seat Switch . |
|
2. |
Climate controlled seat switch (RH) |
|
|
3. |
Climate controlled seat relay |
Supplies power to the climate controlled seat control unit in accordance with the push-button ignition switch (ON or OFF). |
|
4. |
Climate controlled seat control unit |
Refer to Climate Controlled Seat Control Unit . |
|
5. |
Seat cushion blower |
Refer to Seat Blower . |
|
6. |
Seat back blower |
|
|
7. |
Seat cushion heater |
Refer to Seat Heater . |
|
8. |
Seat back heater |
