Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release the pawls and remove the seat bolt finishers.
  2. Remove the seat front bolts.
  3. Pull the seatback release lever and fold down the seatbacks (LH/RH).
  4. Remove the storage box. Refer to Removal and Installation .
  5. Remove the four bolts, then remove the jack and jack bracket as an assembly.

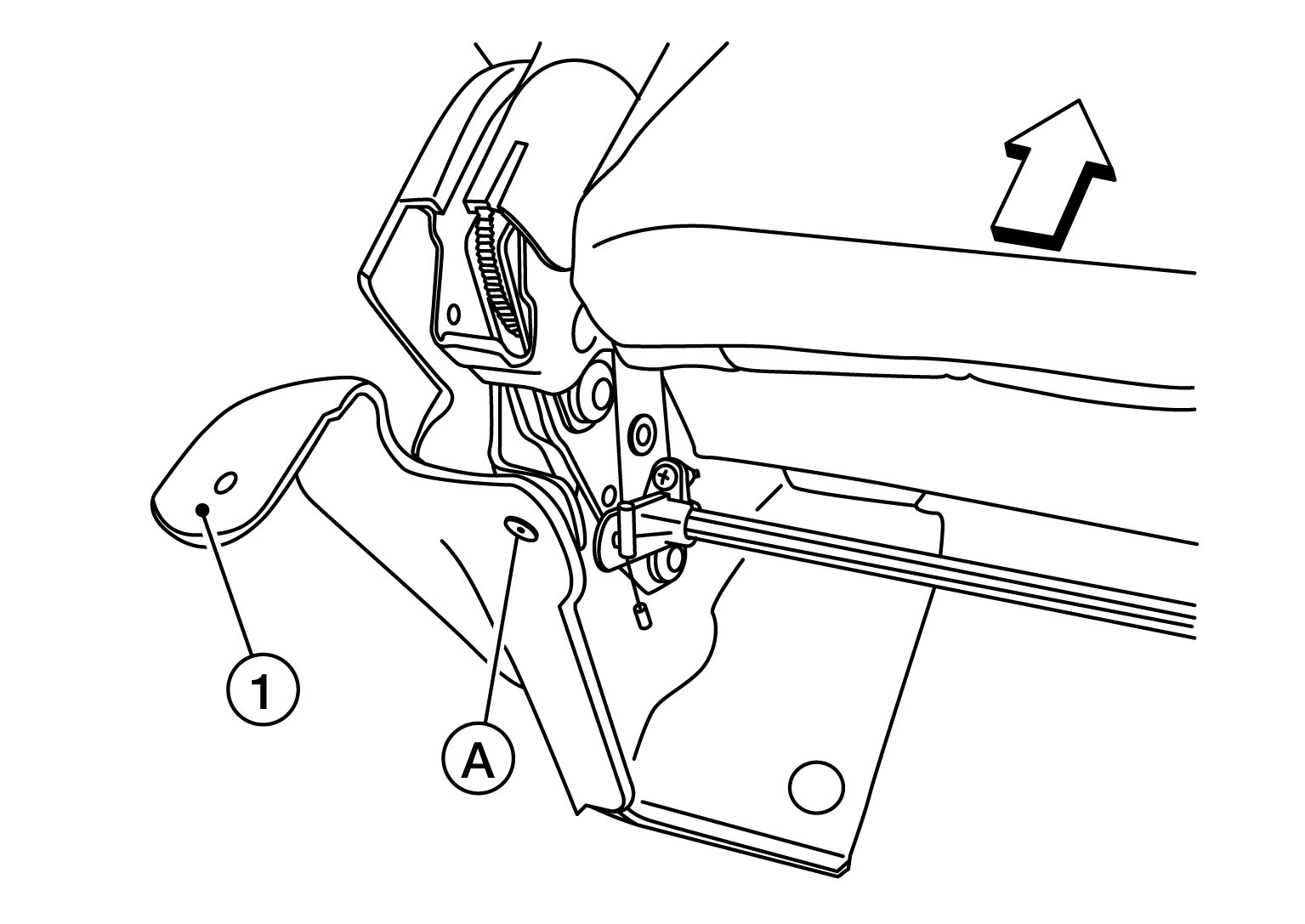

  6. Release the clip (A) and remove the rear side cover (1) (manual seat only).
    GNSDB122553Courtesy of NISSAN NORTH AMERICA, INC.

    LH side shown, RH side similar

    SYMBOL : Front

  7. Remove the two seat belt buckle anchor bolts. Refer to Third Row Seat Belt .
  8. Remove the seat rear bolts.
  9. Tilt seat and disconnect the harness connector from the seat (power seat only).
  10. Remove the third row seat from the vehicle.
