Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Manual Seat

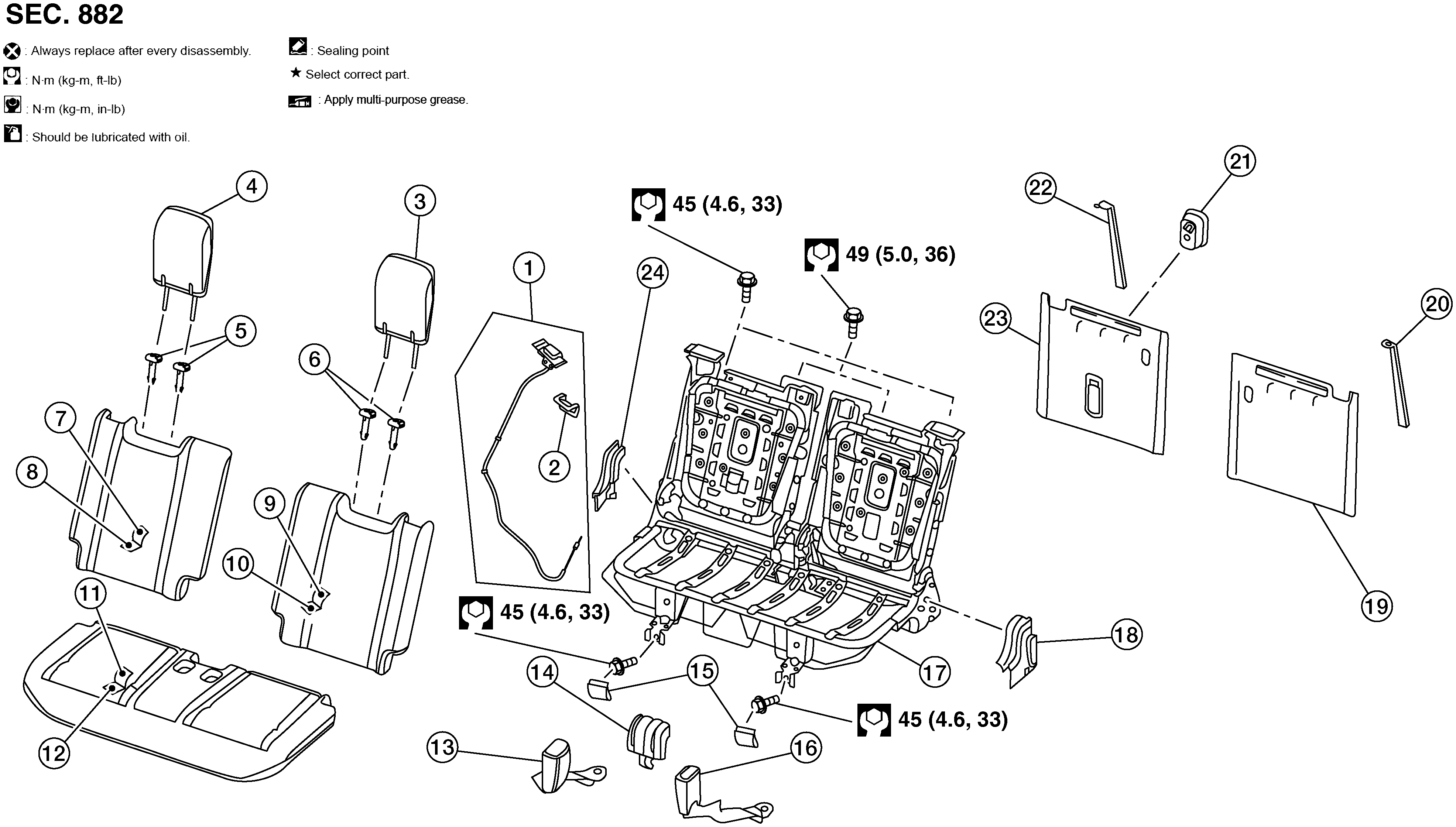

Fig 1: Third Row Manual Seat Components With Torque Specifications (1 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback release lever and cable (LH/RH)	2.	Seatback release lever finisher (LH/RH)	3.	Headrest (LH)
4.	Headrest (RH)	5.	Headrest holders (RH)	6.	Headrest holders (LH)
7.	Seatback trim (RH)	8.	Seatback pad (RH)	9.	Seatback trim (LH)
10.	Seatback pad (LH)	11.	Seat cushion trim	12.	Seat cushion pad
13.	Seat belt buckle (RH)	14.	Seat hinge finisher (center)	15.	Seat bolt finisher
16.	Seat belt buckle (LH)	17.	Seat frame assembly	18.	Seat hinge finisher (LH)
19.	Seatback board (LH)	20.	Seatback pull strap (LH)	21.	Tether anchor finisher
22.	Seatback pull strap (RH)	23.	Seatback board (RH)	24.	Seatback hinge finisher (RH)

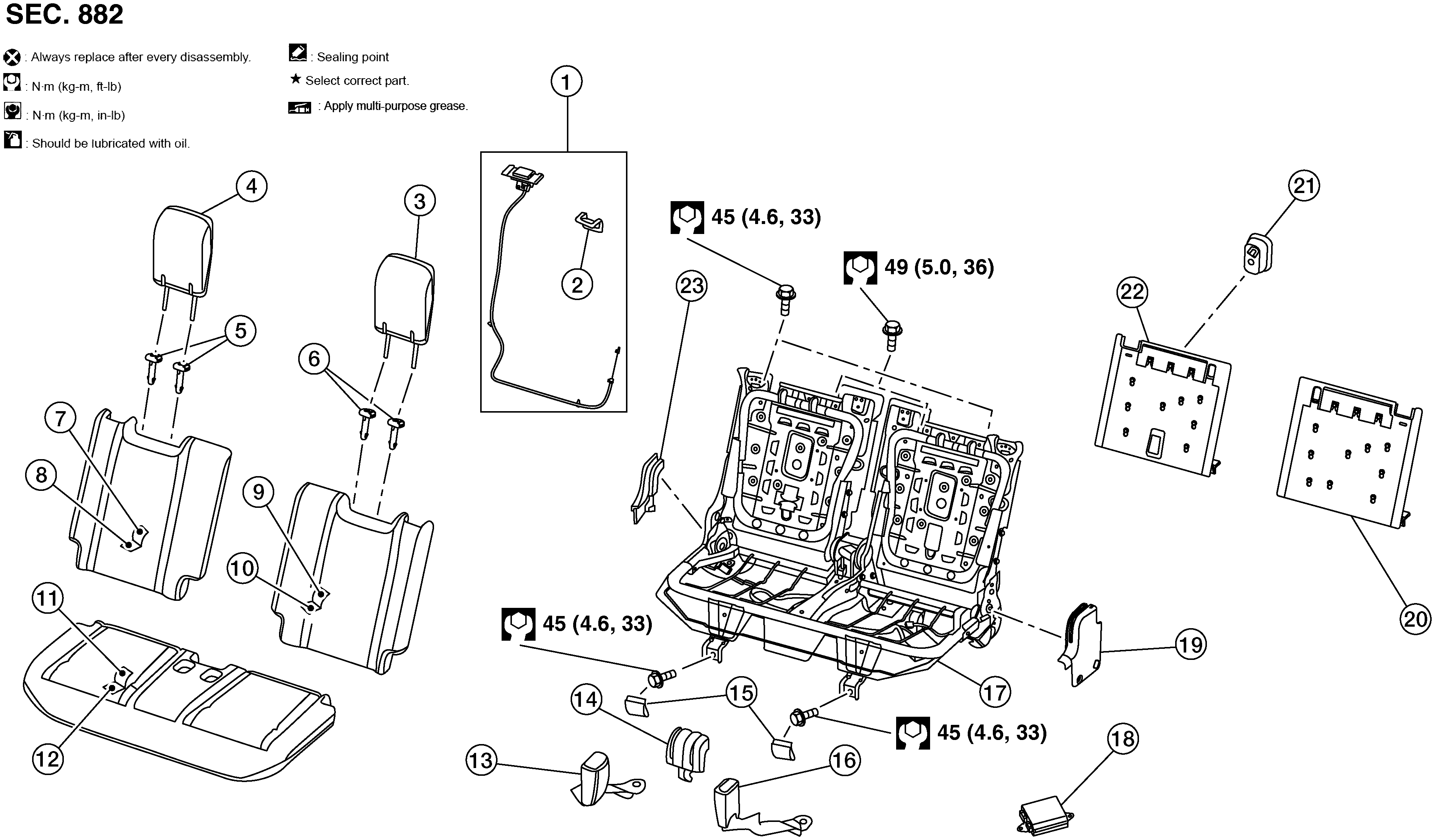

Fig 2: Third Row Manual Seat Components With Torque Specifications (2 Of 2)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seatback release lever and cable (LH/RH)	2.	Seatback release lever finisher (LH/RH)	3.	Headrest (LH)
4.	Headrest (RH)	5.	Headrest holders (RH)	6.	Headrest holders (LH)
7.	Seatback trim (RH)	8.	Seatback pad (RH)	9.	Seatback trim (LH)
10.	Seatback pad (LH)	11.	Seat cushion trim	12.	Seat cushion pad
13.	Seat belt buckle (RH)	14.	Seat hinge finisher (center)	15.	Seat bolt finisher
16.	Seat belt buckle (LH)	17.	Seat frame assembly	18.	Seatback power return control unit
19.	Seat hinge finisher (LH)	20.	Seatback board (LH)	21.	Tether anchor finisher
22.	Seatback board (RH)	23.	Seatback hinge finisher (RH)
