RH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Slide the LH seat to the full forward position and slide the RH seat to the full rearward position.

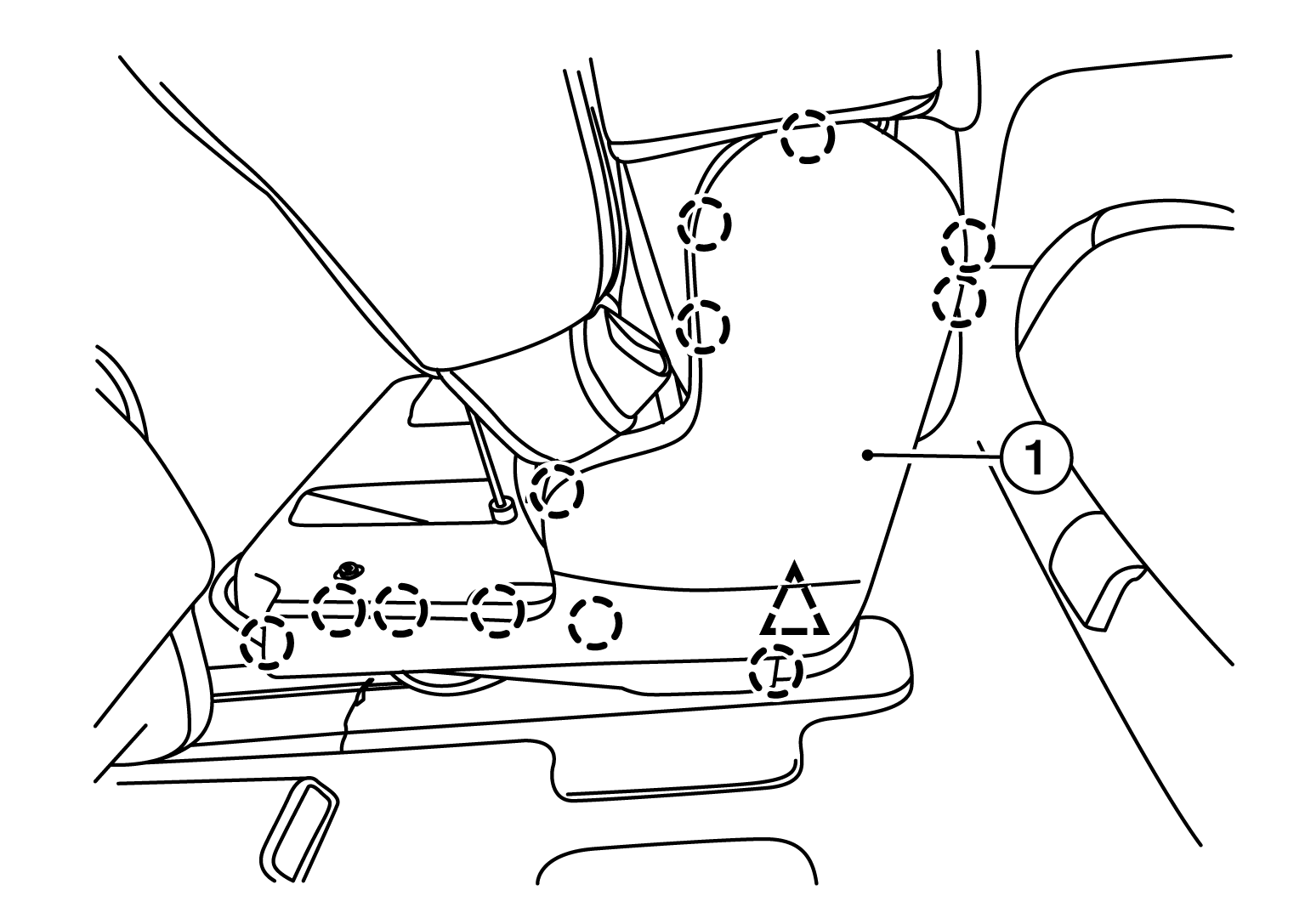

Remove outer finisher (LH) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl

: Clip
Pull seat belt buckle through bottom of RH seat cushion.
Disconnect the harness connectors from the RH seat cushion heater (if equipped) and release the harness from attachments.
NOTE: Take note of harness routing and attachment location for correct installation.
Remove the support strut at bottom.

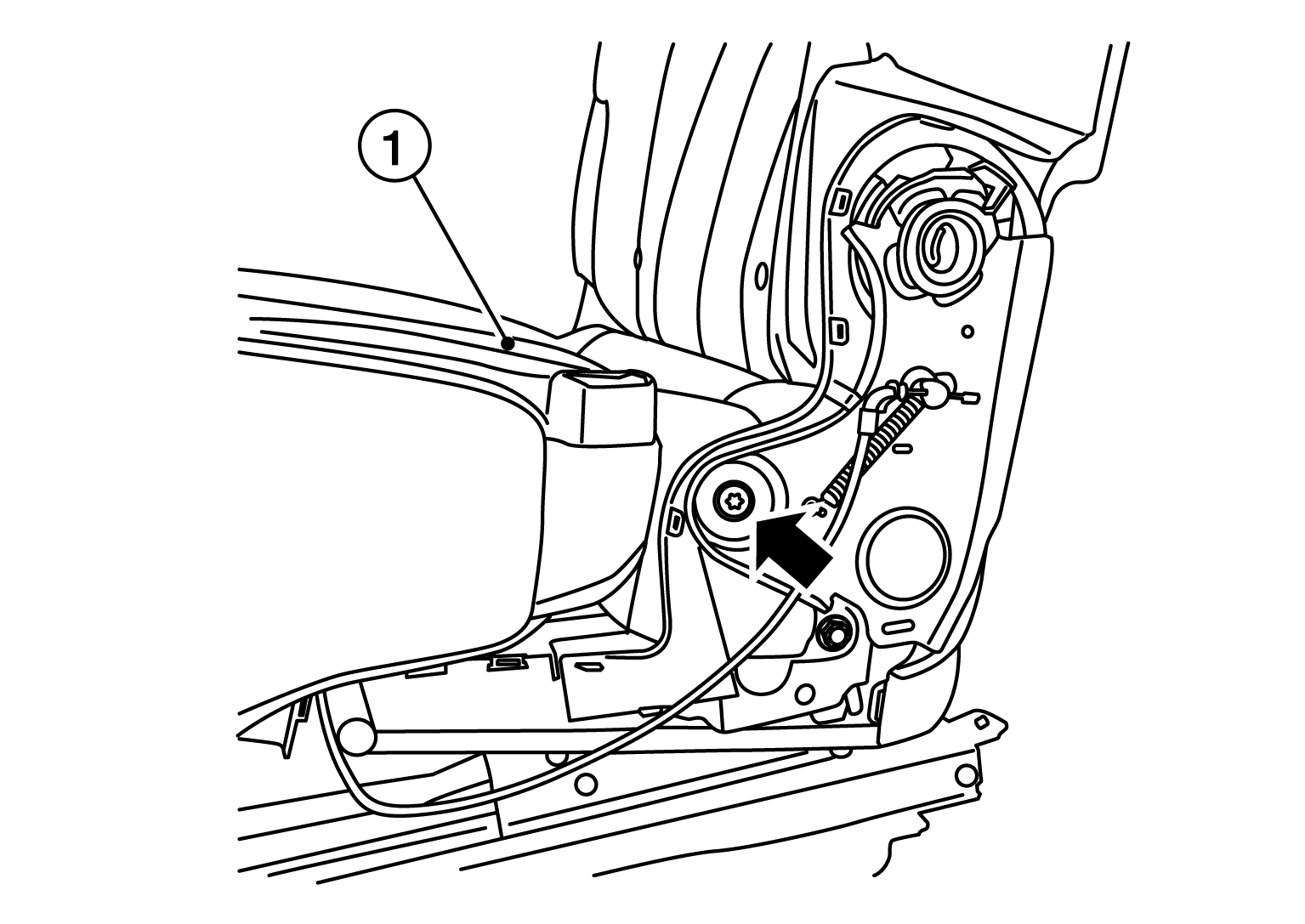

Remove seat cushion pivot bolt ( ), then the RH seat cushion (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.
