LH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

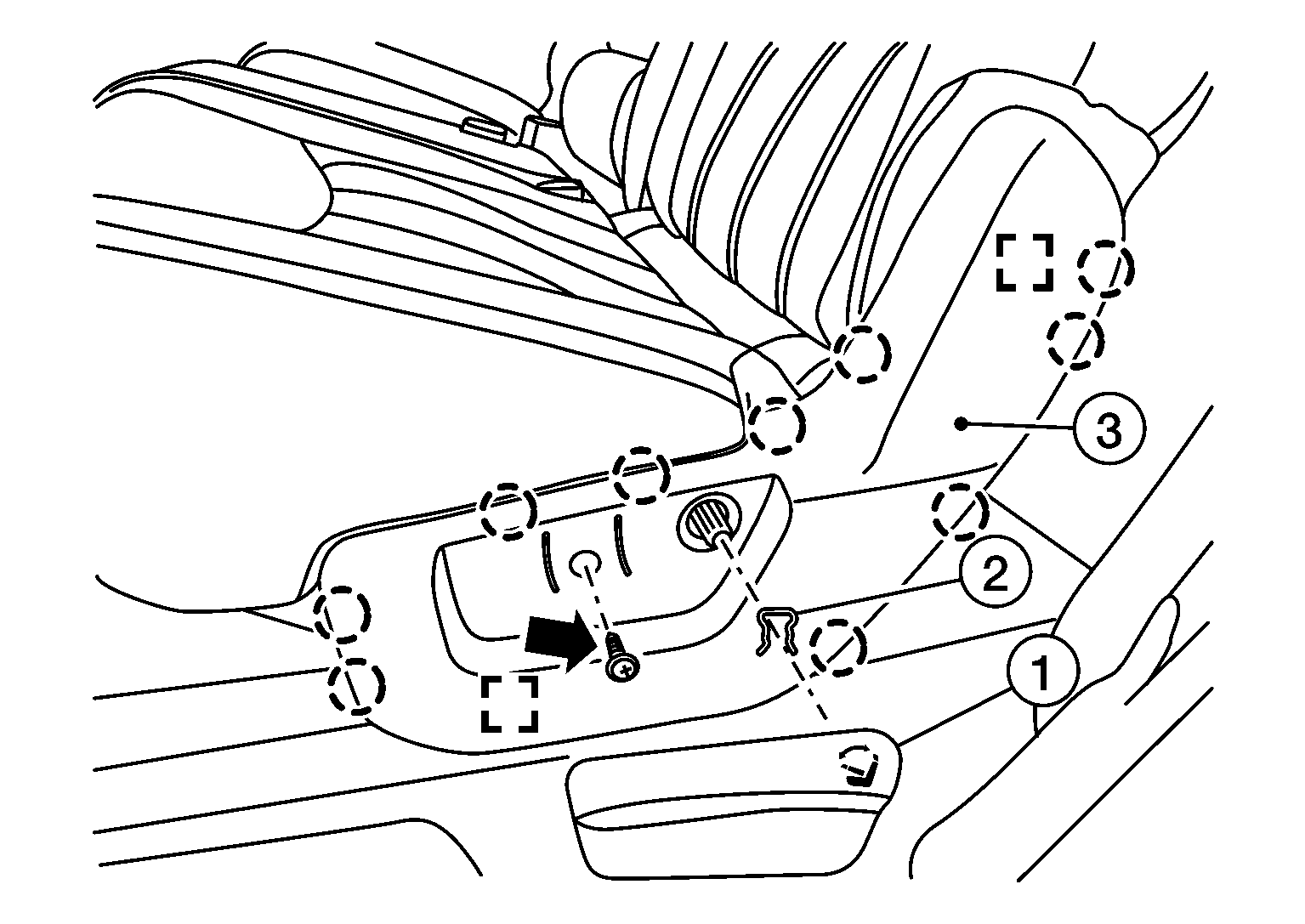

Remove the recline lever.

Courtesy of NISSAN NORTH AMERICA, INC.
1. Remove snap ring (2) upward using a suitable tool.
2. Remove recline lever (1).
Remove screw ( ) and seat cushion outer finisher (LH) (3).
: Pawl

: Metal clip
Pull seat belt buckles through bottom of LH seat cushion.
Disconnect the harness connectors from the LH seat cushion heater (if equipped) and release the harness from attachments.
NOTE: Take note of harness routing and attachment location for correct installation.
Remove the support strut at bottom.

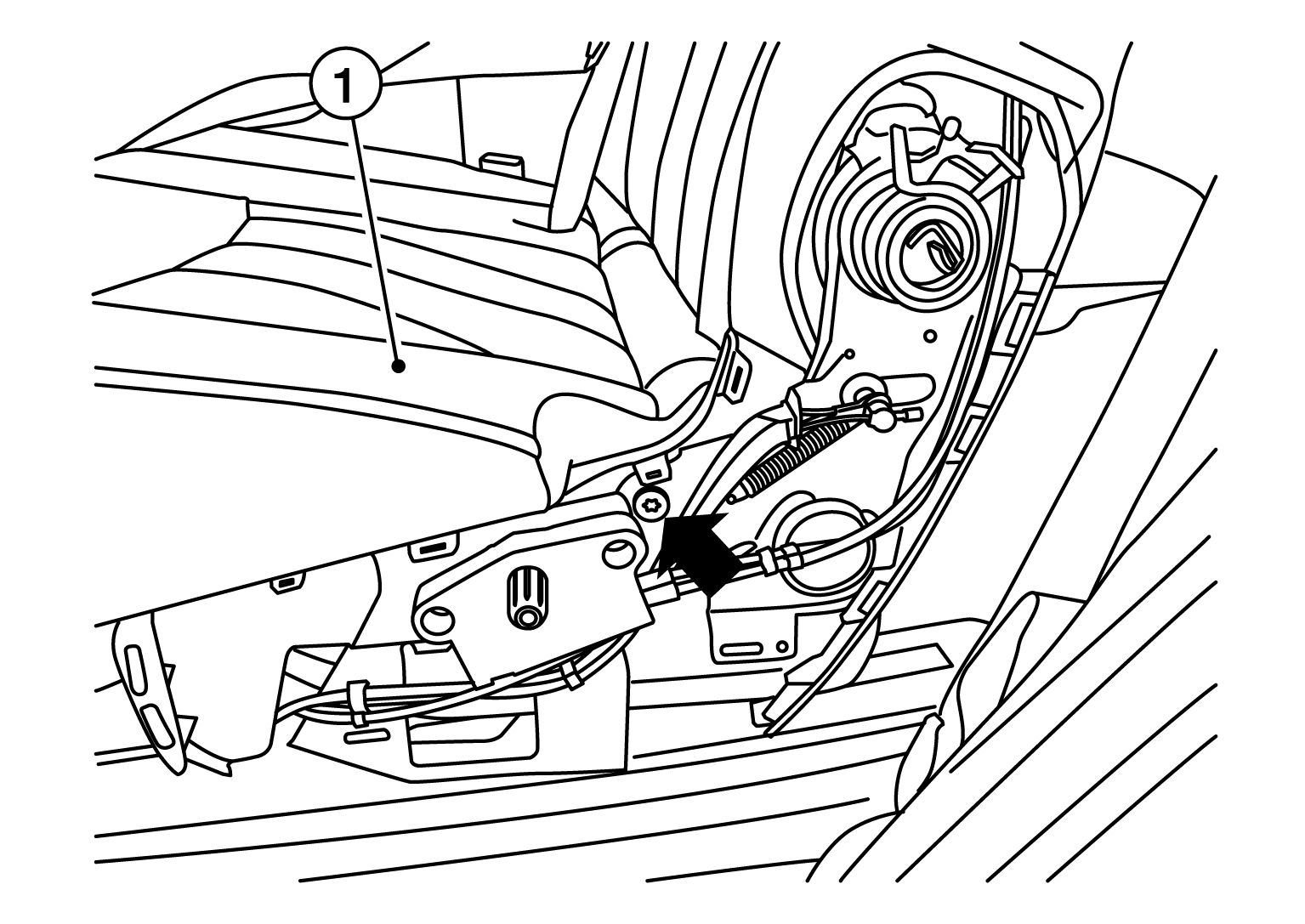

Remove seat cushion pivot bolt ( ), then the LH seat cushion (1).

Courtesy of NISSAN NORTH AMERICA, INC.

Installation

Installation is in the reverse order of removal.
