LH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the LH seat cushion. Refer to Seat Cushion .
Release pawls and remove the recline finisher (center) (1).

Courtesy of NISSAN NORTH AMERICA, INC.

: Pawl
Release clip.
: Clip
Remove screws ( ) and lift seat cushion latch finisher (2) to remove.
: Metal clip

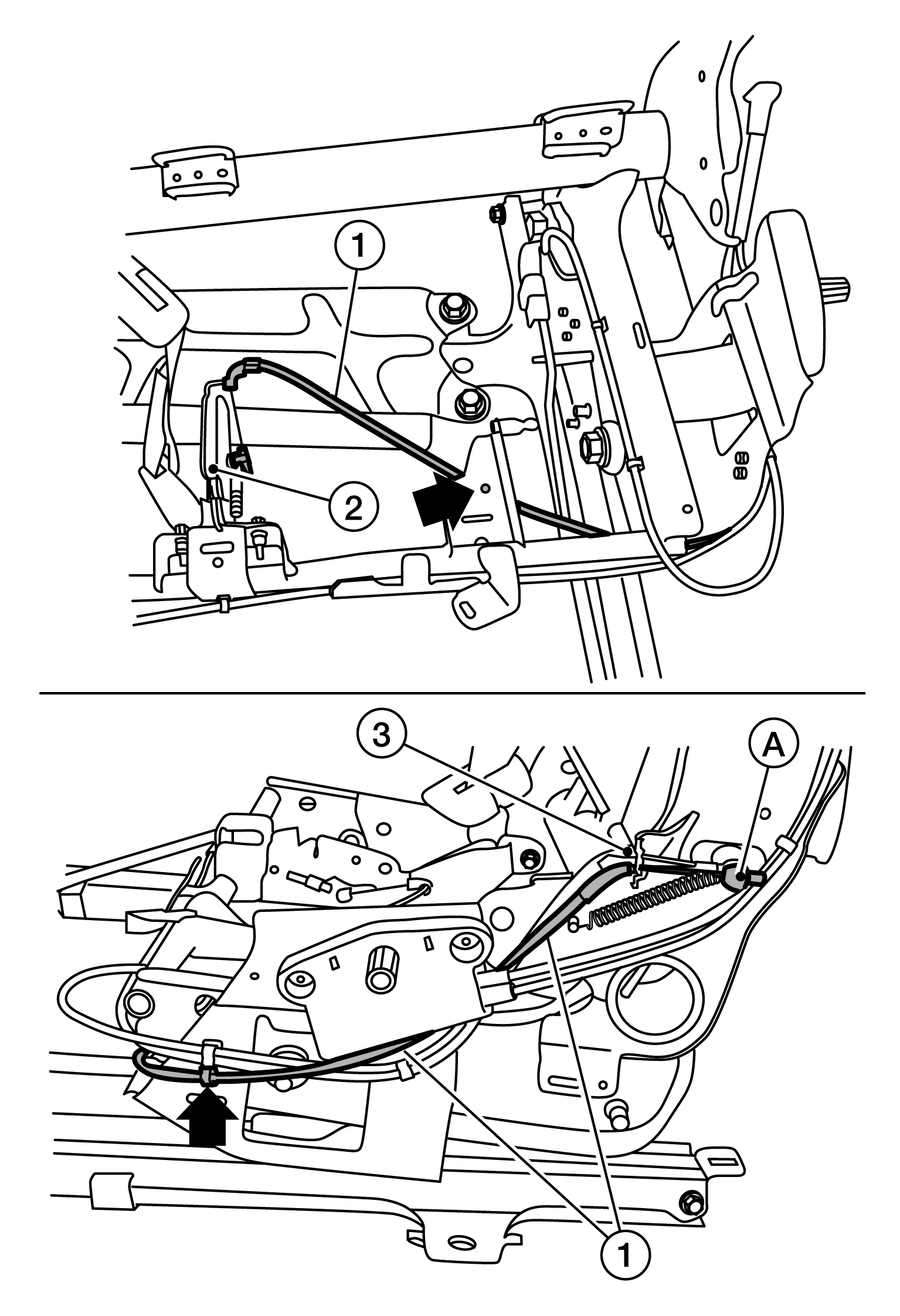

Remove the seat cushion release cable (1) from seat cushion latch (2).

Courtesy of NISSAN NORTH AMERICA, INC.
Release ( ) the seat cushion release cable (1) from the seat frame assembly (3).
CAUTION: Note the cable routing for correct installation,
Release cable end (A) and remove seat cushion release cable.

Installation

Installation is in reverse order of removal.

CAUTION: Route cables correctly for proper function.
