RH Seat
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Removal
- Remove the RH seat seatback. Refer to Seatback .NOTE: It is not necessary to separate the seatback trim from the seatback pad.
- Remove the support finisher.

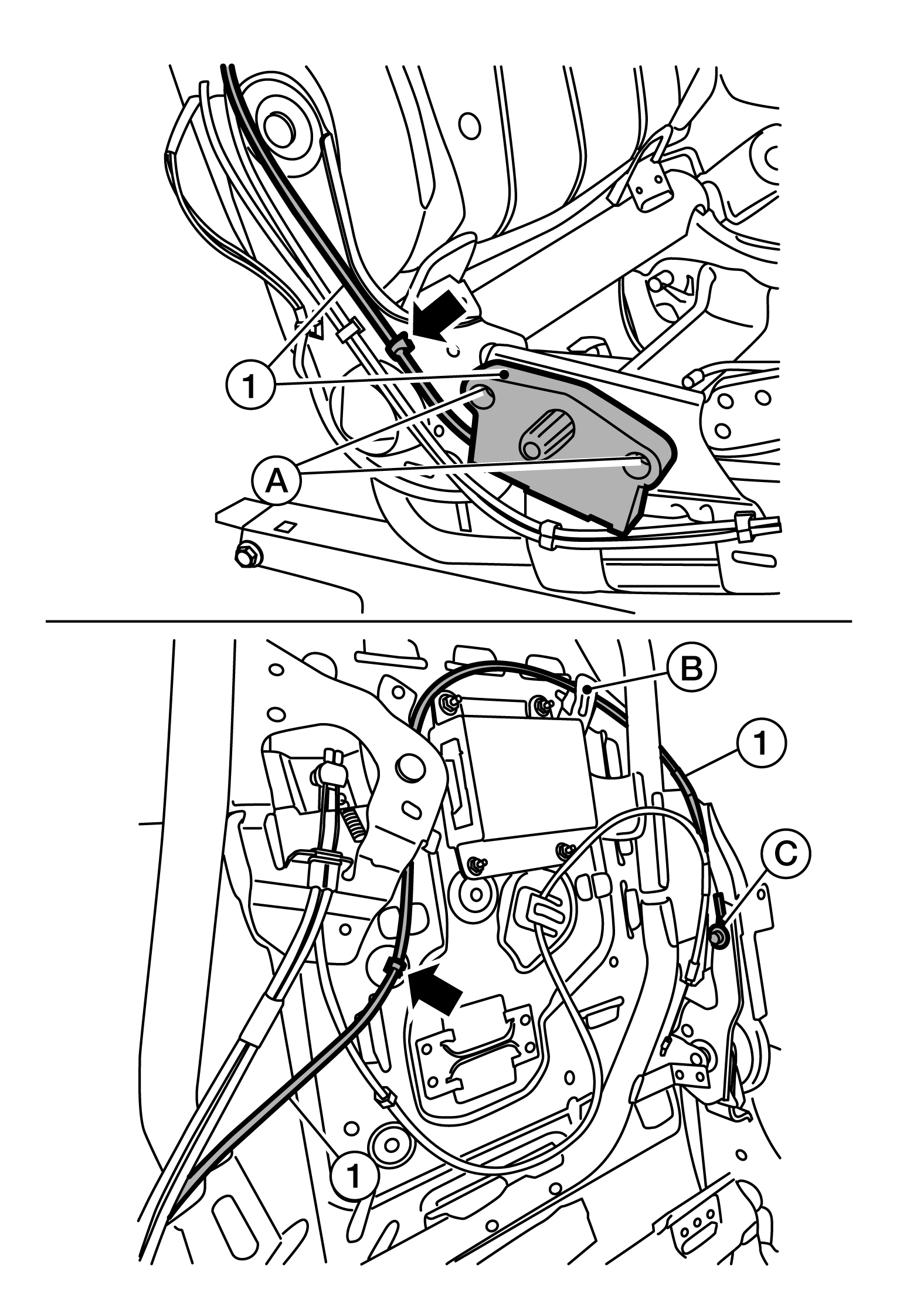

- Remove the recline release cable assembly screws (A).
- Release (
) the recline release cable assembly (1) from the seat frame assembly.
CAUTION: Note the cable routing for correct installation. - Remove the recline release cable assembly (1) from routing guide (B).
- Remove the recline release cable assembly end (C) and the recline release cable assembly (1).
Installation
Installation is in the reverse order of removal.
CAUTION:
Route cables correctly for proper function.
