LH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the LH seat seatback. Refer to Seatback .
NOTE: It is not necessary to separate the seatback trim from the seatback pad.

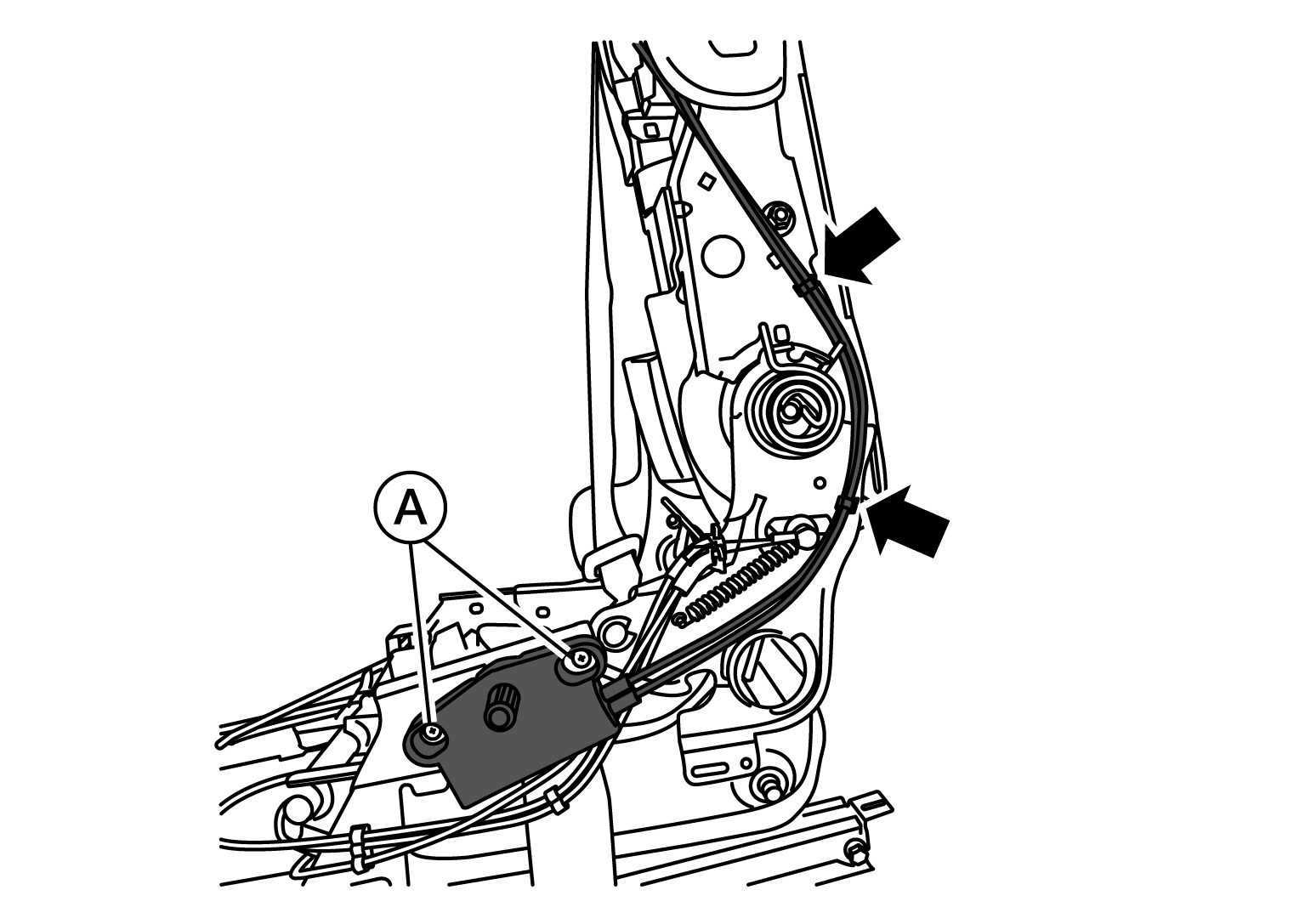

Remove screws (A).

Courtesy of NISSAN NORTH AMERICA, INC.
Release ( ) the recline release cable assembly from the seat frame assembly.
CAUTION: Note the cable routing for correct installation.

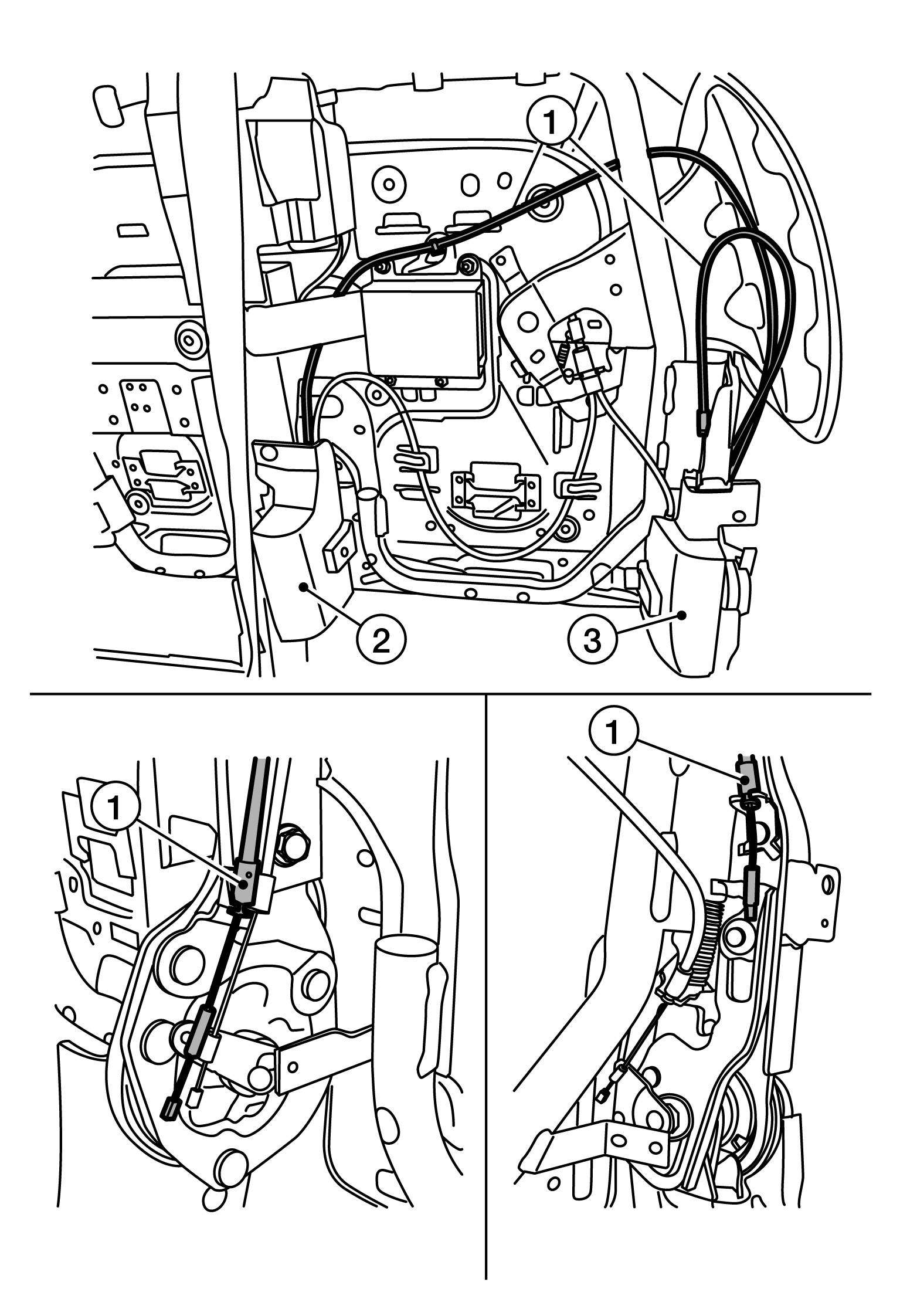

Remove the support finishers (2) and (3).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove the recline release cable assembly (1) from the RH side.
Remove the recline release cable assembly (1) from the LH side.

Installation

Installation is in the reverse order of removal.

CAUTION: Route cables correctly for proper function.
