RH Seat Track Tilt Release Cable: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the RH seat seatback. Refer to Seatback .
    NOTE: It is not necessary to separate the seatback trim from the seatback pad.

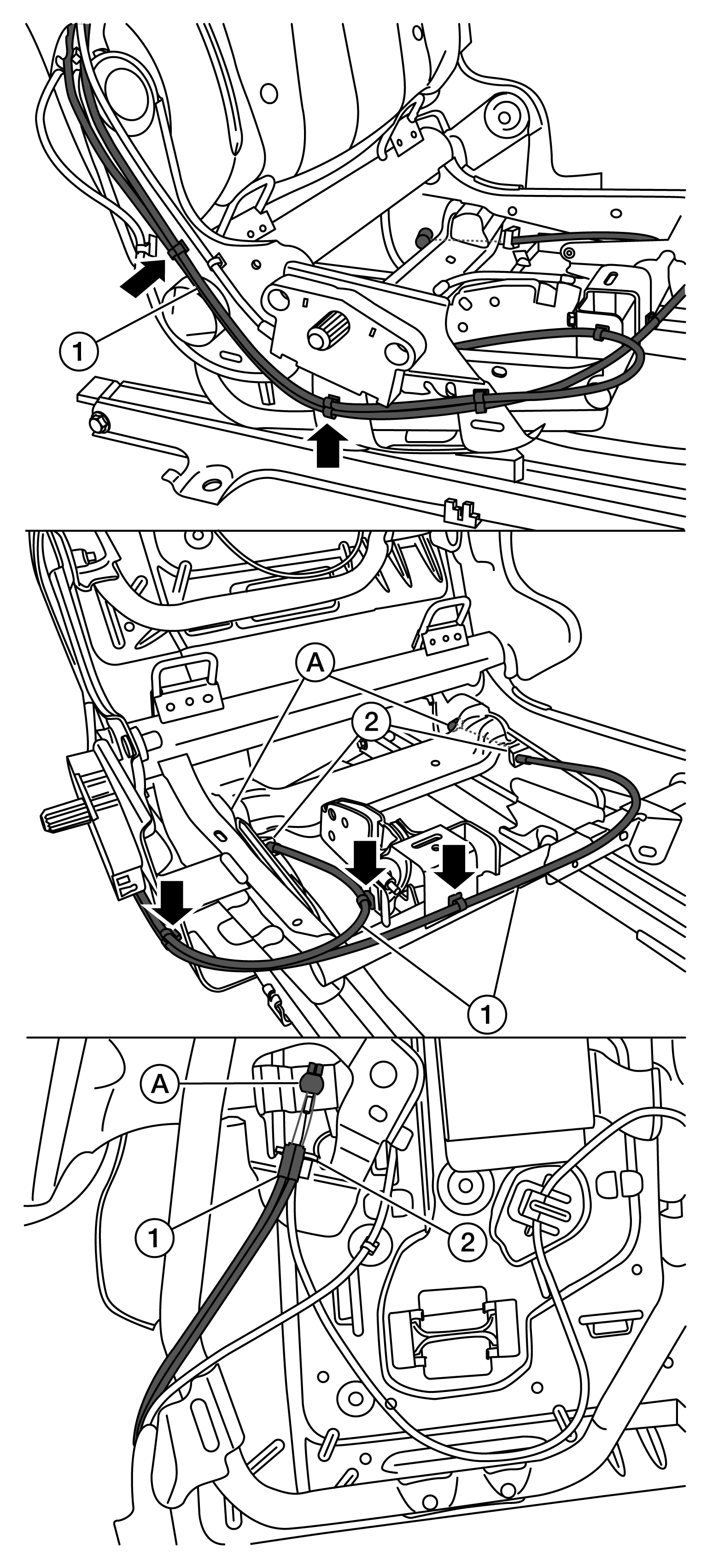

  2. Release (SYMBOL ) the track tilt release cable (1) from the seat frame assembly.
    GNSDB114739Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Note the cable routing for correct installation.
  3. Remove the track tilt release cable (1) from the seat frame assembly (2) and release cable ends (A).
  4. Remove the track tilt release cable (1).
