RH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

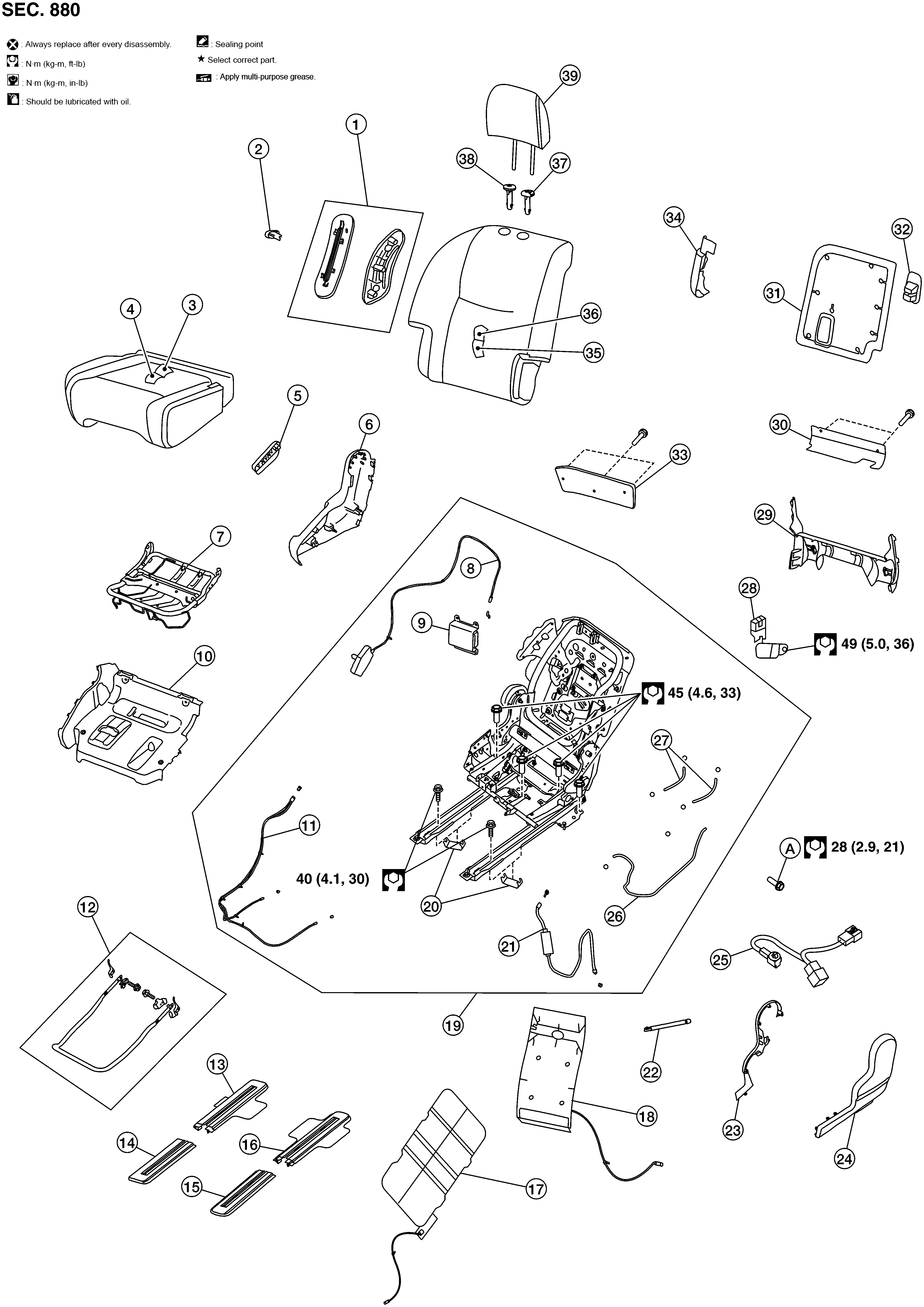

Fig 1: Second Row RH Seat Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	EZ entry finisher	2.	EZ entry lever finisher	3.	Seat cushion trim
4.	Seat cushion pad	5.	Recline lever	6.	Seat cushion outer finisher (RH)
7.	Seat cushion frame	8.	Recline release cable assembly	9.	Dampener
10.	Seat cushion latch finisher	11.	Track tilt release cable	12.	Seat slide control lever assembly
13.	Rear slide finisher (RH)	14.	Front slide finisher (RH)	15.	Front slide finisher (LH)
16.	Rear slide finisher (LH)	17.	Seat cushion heater unit (if equipped)	18.	Seatback heater unit (if equipped)
19.	Seat frame assembly	20.	Seat slide clip	21.	EZ entry cable
22.	Support strut	23.	Inner finisher (LH)	24.	Outer finisher (LH)
25.	Seat harness	26.	Seat cushion release cable	27.	Seat slide release cable
28.	Seat belt buckle	29.	Rear finisher	30.	Trim stiffener
31.	Seatback board	32.	Tether anchor finisher	33.	EPP upper panel
34.	Support finisher	35.	Seatback pad	36.	Seatback trim
37.	Headrest holder (locked)	38.	Headrest holder (free	39.	Headrest
A.	Seat cushion pivot bolt
