LH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

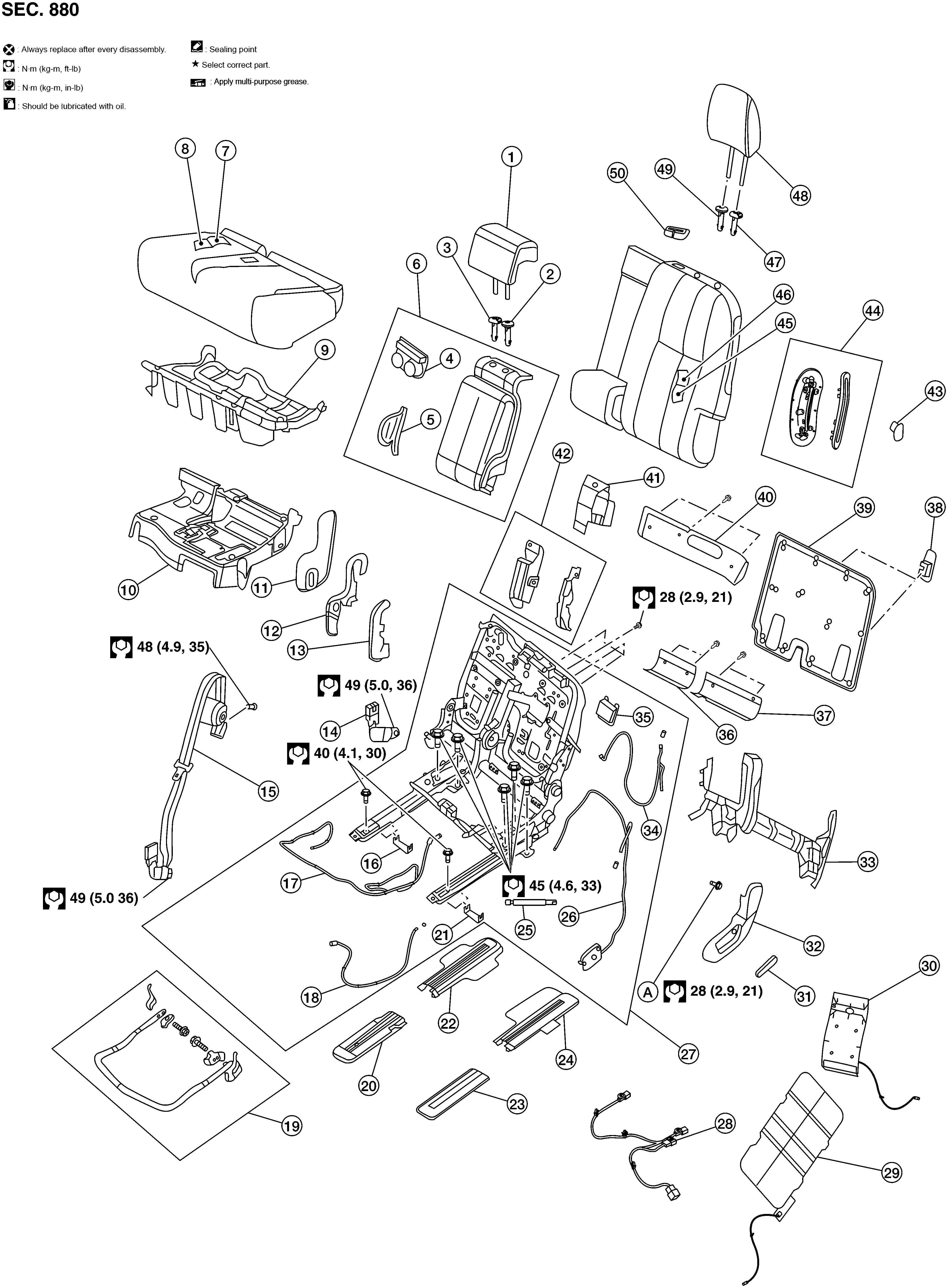

Fig 1: Second Row Seat LH Seat Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest (RH)	2.	Headrest holder (free) (RH)	3.	Headrest holder (locked) (RH)
4.	Cup holder	5.	Armrest hinge finisher	6.	Armrest assembly
7.	Seat cushion trim	8.	Seat cushion pad	9.	Seat cushion frame
10	Seat cushion latch finisher	11.	Outer finisher (RH)	12.	Inner finisher (RH)
13.	Recline finisher (center)	14.	Seat belt buckle (RH)	15.	Seat belt retractor (RH)
16.	Seat slide clip (RH)	17.	Seat slide release cable	18.	Seat cushion release cable
19.	Seat slide control lever assembly	20.	Front slide finisher (RH)	21.	Seat slide clip (LH)
22.	Rear slide finisher (RH)	23.	Front slide finisher (LH)	24.	Rear slide finisher (LH)
25.	Support strut	26.	Recline release cable assembly	27.	Seat frame assembly
28.	Seat harness	29.	Seat Cushion heater unit (if equipped)	30.	Seatback heater unit (if equipped)
31.	Recline lever	32.	Seat cushion outer finisher LH	33.	Rear finisher
34.	EZ entry cable	35.	Dampener	36.	Trim stiffener (RH)
37.	Trim stiffener (LH)	38.	Tether anchor finisher	39.	Seatback board
40.	EPP upper panel	41.	Seat belt retractor finisher	42.	Support finisher (RH)
43.	EZ entry lever finisher	44.	EZ entry finisher	45.	Seatback pad
46.	Seatback trim	47.	Headrest holder (locked) (LH)	48.	Headrest (LH)
49.	Headrest holder (free) (LH)	50.	Seat belt retractor finisher	A.	Seat cushion pivot bolt
