RH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove the RH seatback. Refer to Seatback .
NOTE: It is not necessary to separate the seatback trim from the seatback pad.
Remove the support finisher.

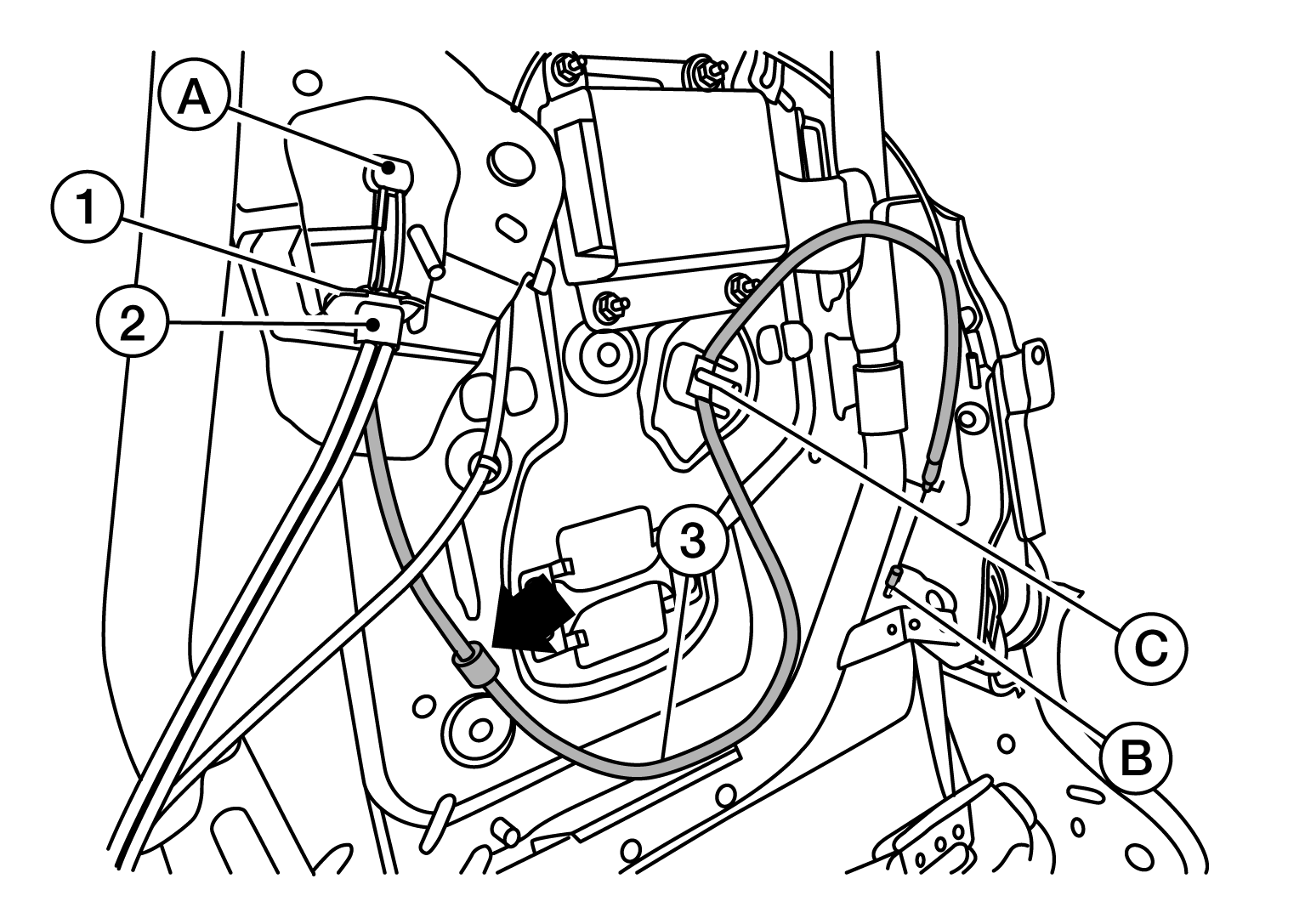

Remove the EZ entry cable (3) from the routing guide (C).

Courtesy of NISSAN NORTH AMERICA, INC.

CAUTION: Note the cable routing for correct installation.
Release ( ) the EZ entry cable (3) from the seat frame assembly.
Remove the track tilt release cable (2) from the seat frame assembly (1) and release cable end (A).
Remove cable end (B) and the EZ entry cable (3).

Installation

Installation is in the reverse order of removal.

CAUTION: Route cables correctly for proper function.
