LH Seat

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Removal

Remove LH seat seatback. Refer to Seatback .
NOTE: It is not necessary to separate the seatback trim from the seatback pad.

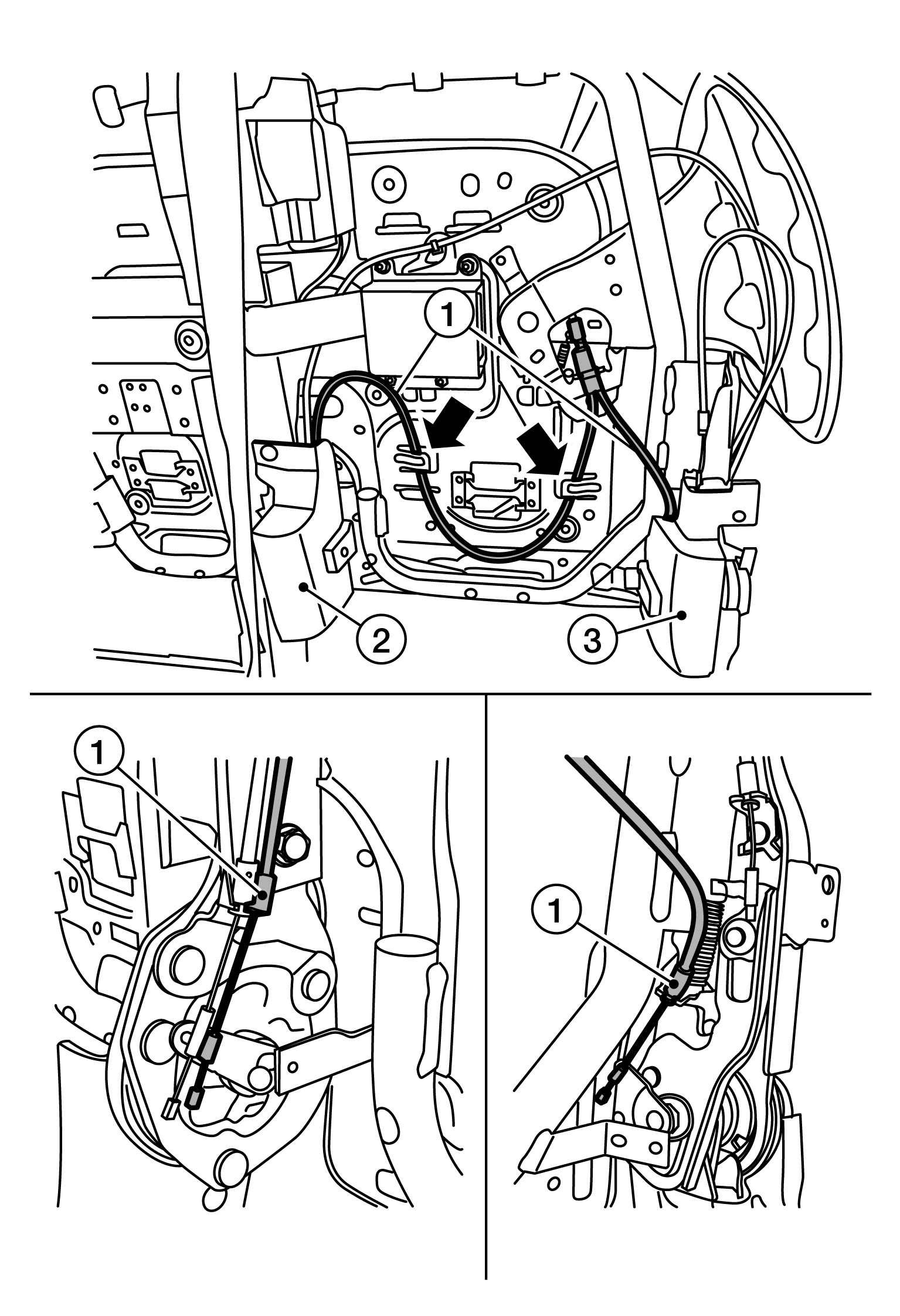

Remove support finishers (2) and (3).

Courtesy of NISSAN NORTH AMERICA, INC.
Remove EZ entry cable (1) from routing guides ( ).
CAUTION: Note the cable routing for correct installation
Remove the EZ entry cable (1) from the RH side.
Remove the EZ entry cable (1) from the LH side.
Remove the EZ entry cable.

Installation

Installation is in the reverse order of removal.

CAUTION: Route cables correctly for proper function.
