Armrest Assembly: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

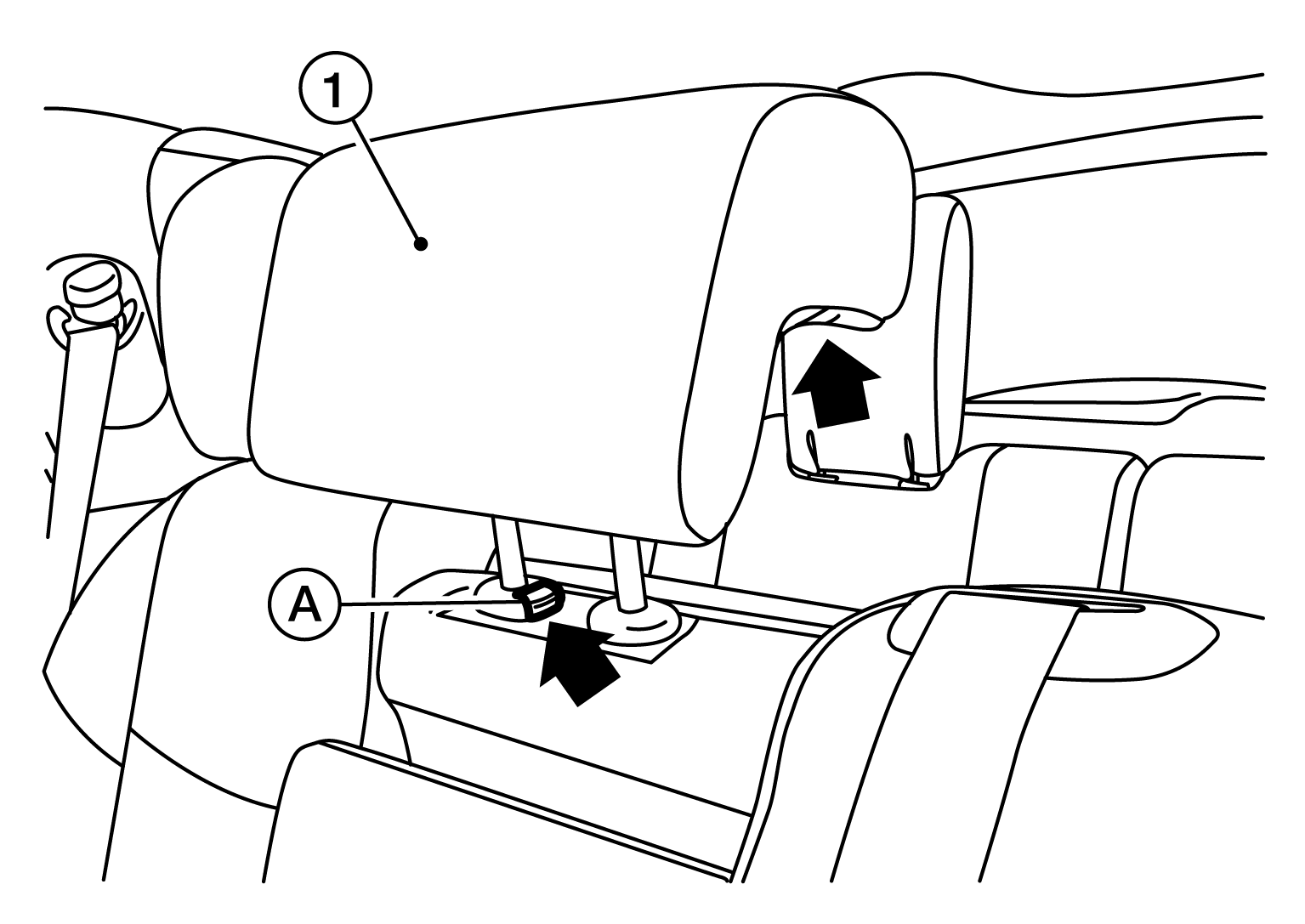

  1. Press in the headrest holder button (A), then remove LH seat headrest (RH) (1).
    GNSAWJIA0847Z-847Courtesy of NISSAN NORTH AMERICA, INC.

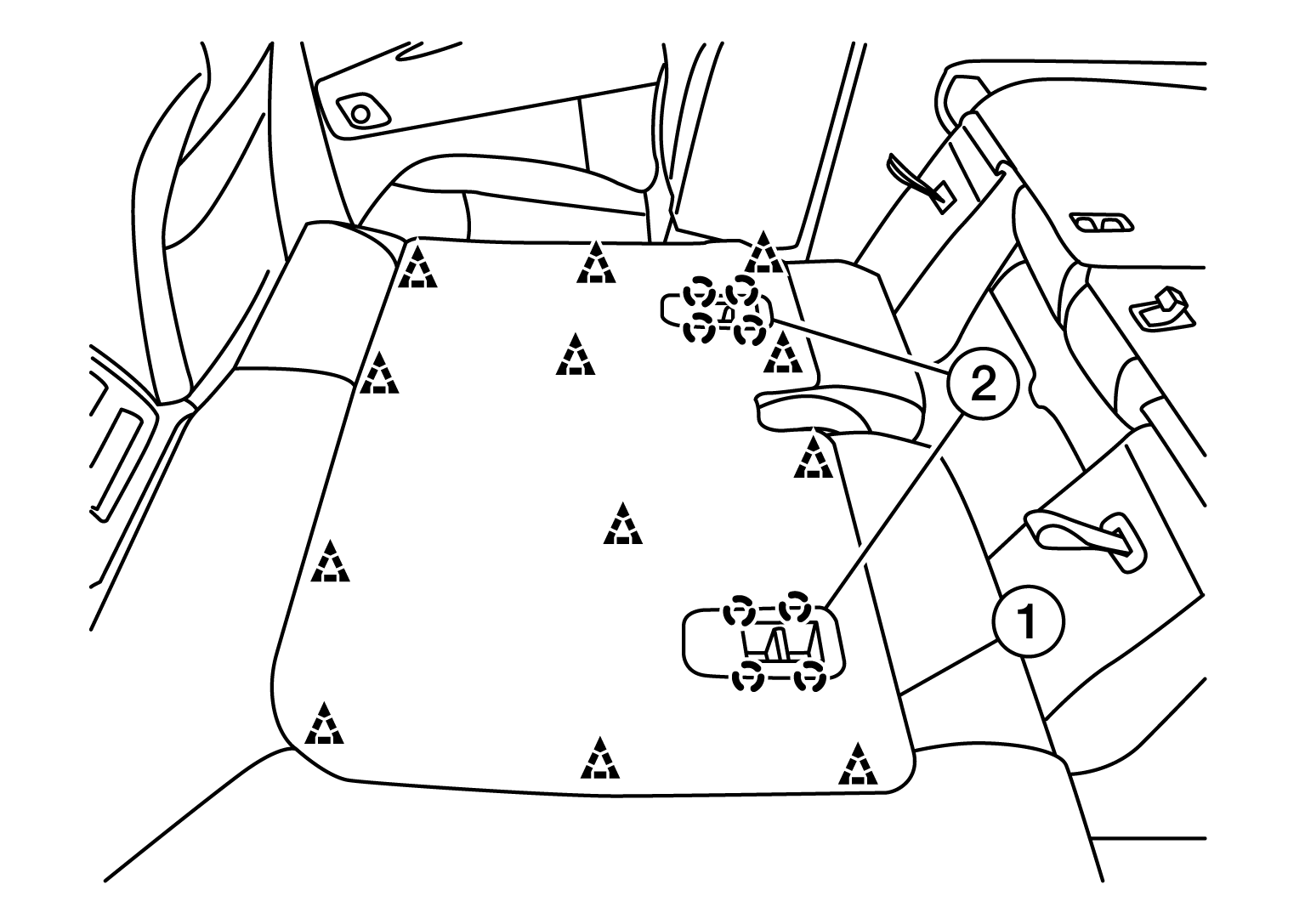

  2. Remove the tether anchor finishers (2).
    GNSAWJIA0846Z-846Courtesy of NISSAN NORTH AMERICA, INC.
  3. Remove seatback board (1).

    SYMBOL : Clip

    SYMBOL : Pawl

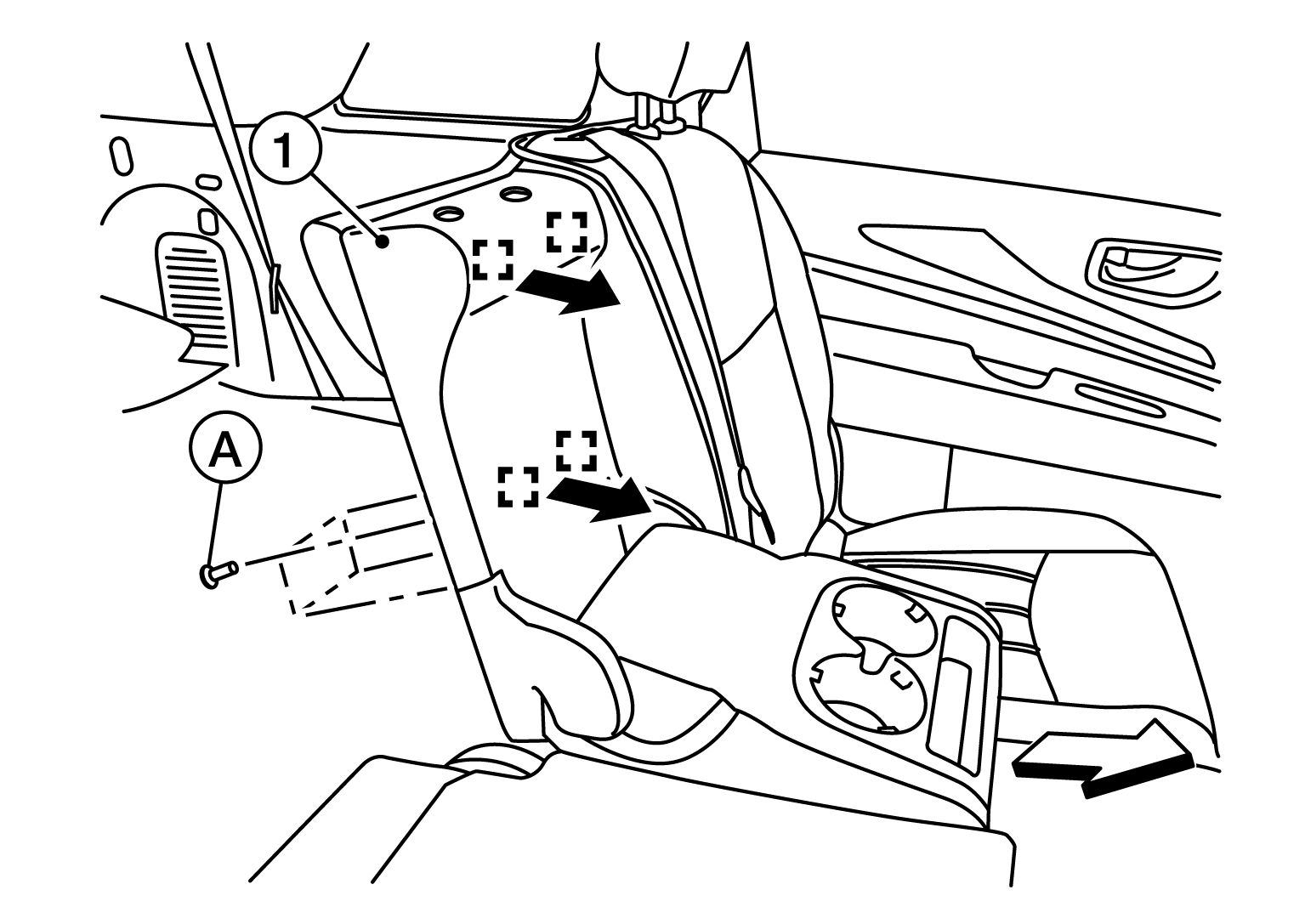

  4. Remove four armrest assembly bolts (A) and pull the armrest assembly (1) forward (SYMBOL ) to release clips.
    GNSAWJIA0849Z-849Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

    SYMBOL : Front

  5. Reach up behind the armrest assembly, release the headrest holder locks as shown and remove the headrest holders.
    GNSJMJIA4073Z-073Courtesy of NISSAN NORTH AMERICA, INC.
    CAUTION: Before removing/installing headrest holder, check its orientation (front/rear and right/left).
  6. Remove the armrest assembly.
