Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

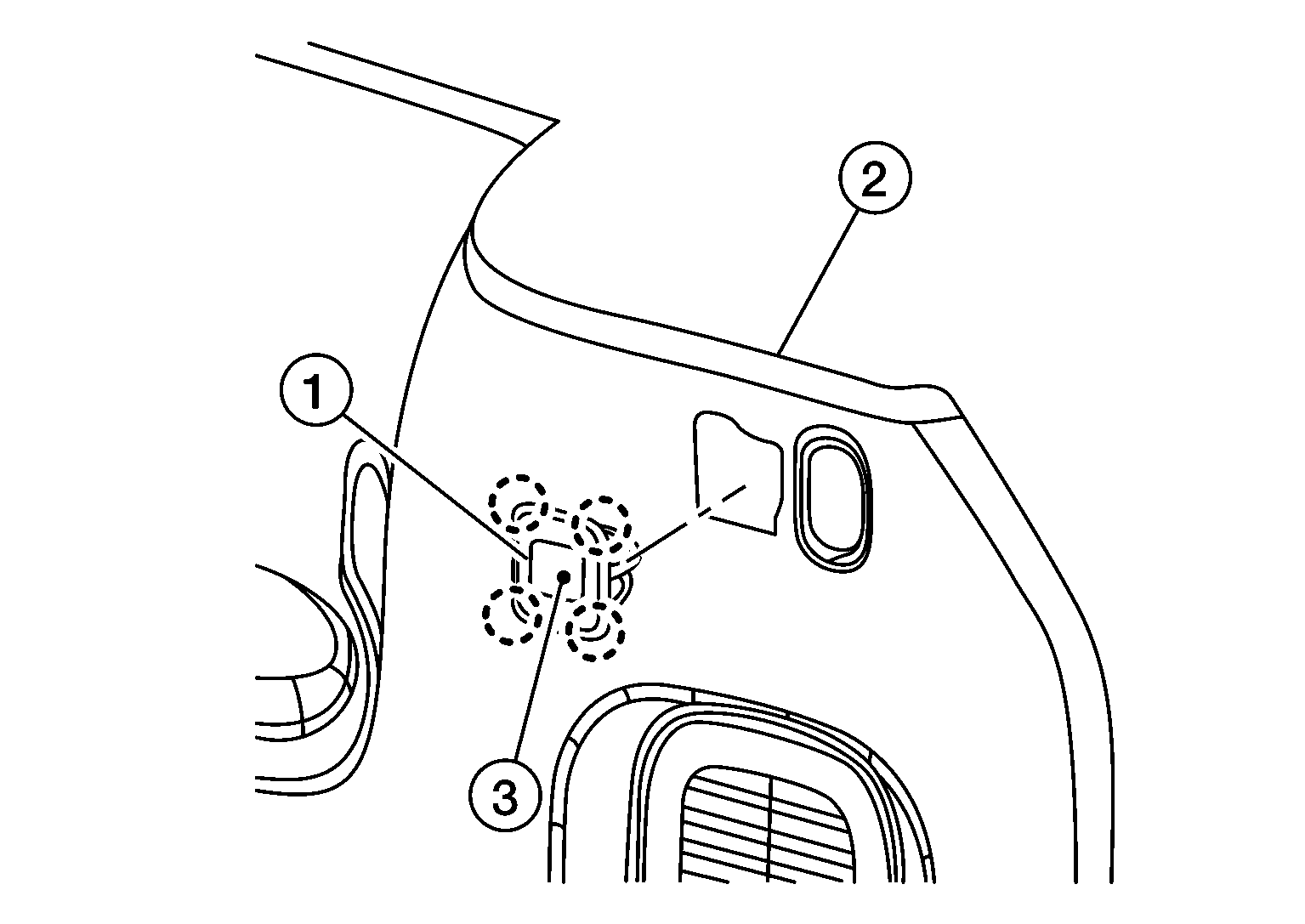

  1. Release pawls and remove the rear seatback switch finisher (1) from luggage side lower finisher (2).
    GNSALJIA1267Z-267Courtesy of NISSAN NORTH AMERICA, INC.
  2. Release pawls and remove rear seatback switch (3) from rear seatback switch finisher (1).
