Removal and Installation: Removal
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Do not leave any objects (screwdrivers, tools, etc.) on the seat during seatback repair. It can lead to personal injury if the side air bag module should accidentally deploy.
CAUTION:
- When removing or installing the seat trim, handle it carefully to keep dirt out and to avoid damage.
- When checking the power seat circuit for continuity using a circuit tester, do not confuse its connector with the side air bag module connector. Such an error may cause the air bag module to deploy.
- Do not drop, tilt, or bump the side air bag module while installing the seat. Always handle it with care.
- After front side air bag module inflates, the front seatback assembly must be replaced.
- When removing and installing the seat, use shop cloths to protect components from damage.
- Before removing the front seat, turn the ignition switch OFF, disconnect both battery cables then wait at least three minutes.
- Slide the seat to the full rearward position.
- Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
- Disconnect the harness connector for side air bag module.

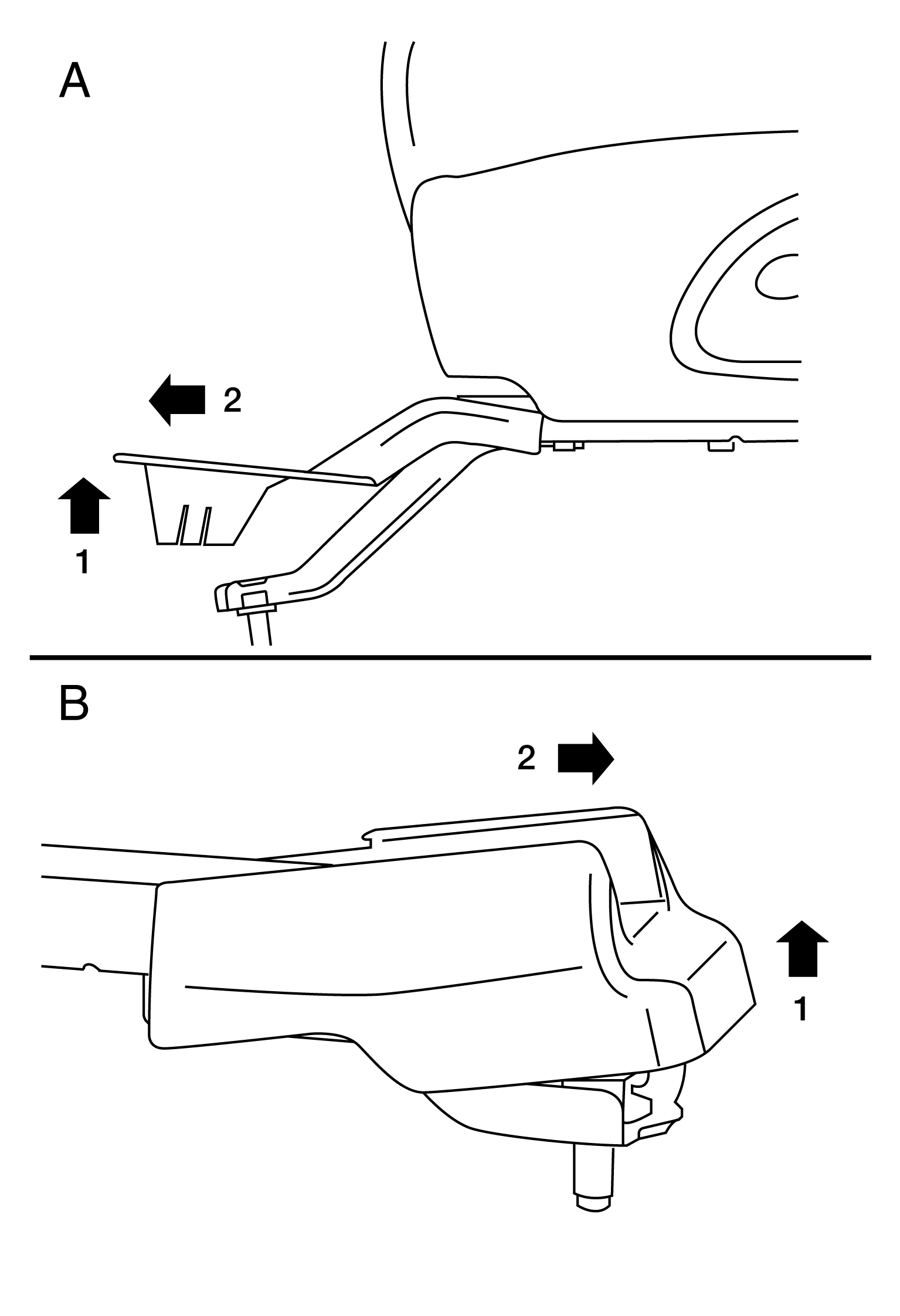

- Remove the front slide finishers (LH/RH) (A) by lifting up and then pulling forward, then remove the seat front bolts.
- Connect negative and positive battery terminals, then slide the seat to the full forward position. Refer to Removal and Installation .
- Disconnect negative and positive battery terminals, then wait at least three minutes. Refer to Removal and Installation .
- Remove the rear slide finishers (LH/RH) (B) by lifting up and then pulling rearward, then remove the seat rear bolts.
- Tilt the seat rearward and disconnect the harness connectors from the seat.NOTE: Take note of harness routing and attachment locations for correct installation.
- Remove the seat from the vehicle.
