Removal and Installation: Installation

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Installation is in the reverse order of removal.

WARNING:

Perform additional services when installing front passenger seat (except Mexico). Refer to Description .
Zero point reset must be performed every time the front passenger seat is removed from the vehicle.
Zero point reset is done after the front passenger seat is installed in vehicle and all bolts are tightened to specification.

CAUTION: Make sure that the seat harness or the floor carpet is not damaged during installation.

NOTE:

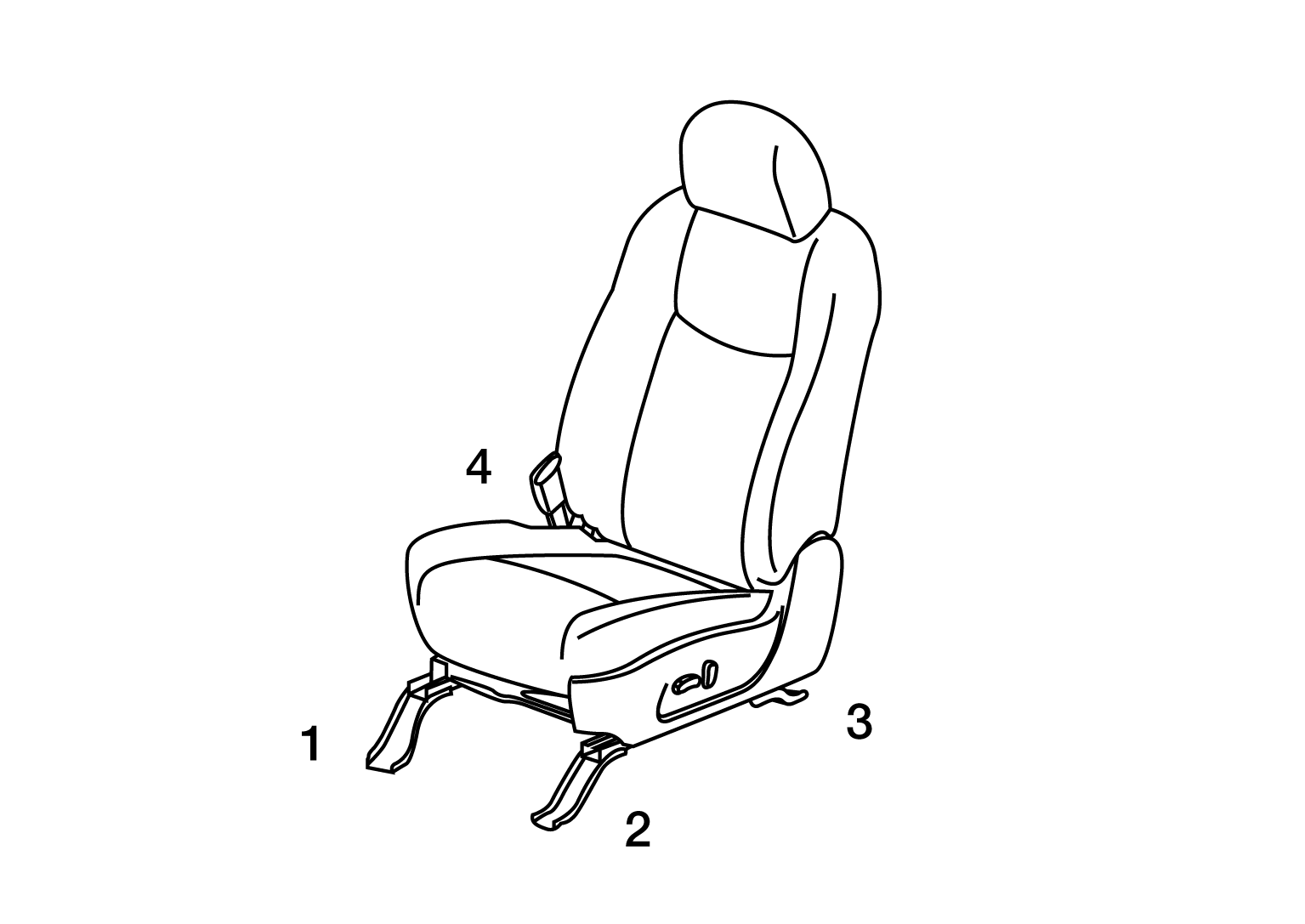

When installing the front seat (LH), tighten the bolts to specification in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Front seat (LH) bolt torque

: 48 Nm (4.9 kg-m, 35 ft-lb)

When installing the front seat (RH), tighten the bolts to specification in the order shown.

Courtesy of NISSAN NORTH AMERICA, INC.

Front seat (RH) bolt torque

: 48 Nm (4.9 kg-m, 35 ft-lb)
