Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

DRIVER SEAT WITH CLIMATE CONTROL

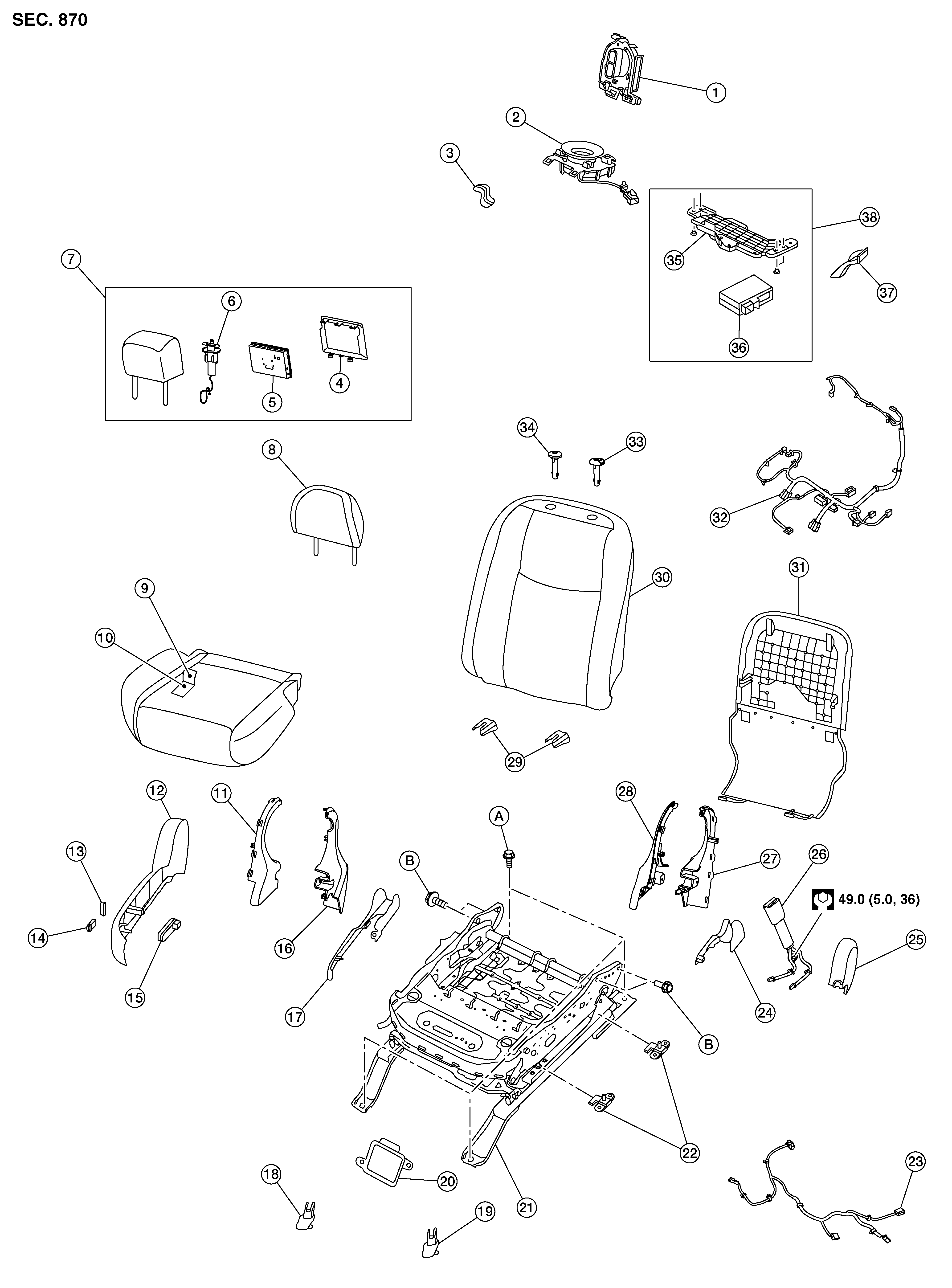

Fig 1: Front Driver Seat Components With Torque Specifications (With Climate Control)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat back blower	2.	Seat cushion blower	3.	Climate controlled seat control unit bracket (RH)
4.	Headrest display unit finisher	5.	Headrest display unit	6.	Harness protector
7.	Headrest assembly with display unit	8.	Headrest without display unit	9.	Seatback assembly
10.	Seat cushion trim	11.	Seat cushion pad	12.	Seat belt buckle
13.	Seat cushion outer finisher (RH)	14.	Seat cushion inner finisher (RH) (front)	15.	Seat cushion inner finisher (RH) (rear)
16.	Slide finisher outer (RH)	17.	Front slide finisher (RH)	18.	Seat frame assembly
19.	Front slide finisher (LH)	20.	Seat slide knob	21.	Seat recline knob
22.	Lumbar support switch	23.	Power seat switch	24.	Seat cushion outer finisher (LH)
25.	Slide finisher outer (LH)	26.	Driver seat control unit	27.	Seat cushion inner finisher (LH) (rear)
28.	Seat cushion inner finisher (LH) (front)	29.	Rear slide finisher	30.	Seatback board
31.	Seat harness	32.	Headrest holder (locked)	33.	Headrest holder (free)
34.	Climate controlled seat control unit bracket	35.	Climate controlled seat control unit	36.	Climate controlled seat control unit bracket (LH)
37.	Climate controlled seat control unit assembly	A.	Refer to Removal and Installation .	B.	Refer to Seatback .

Driver Seat Without Climate Control

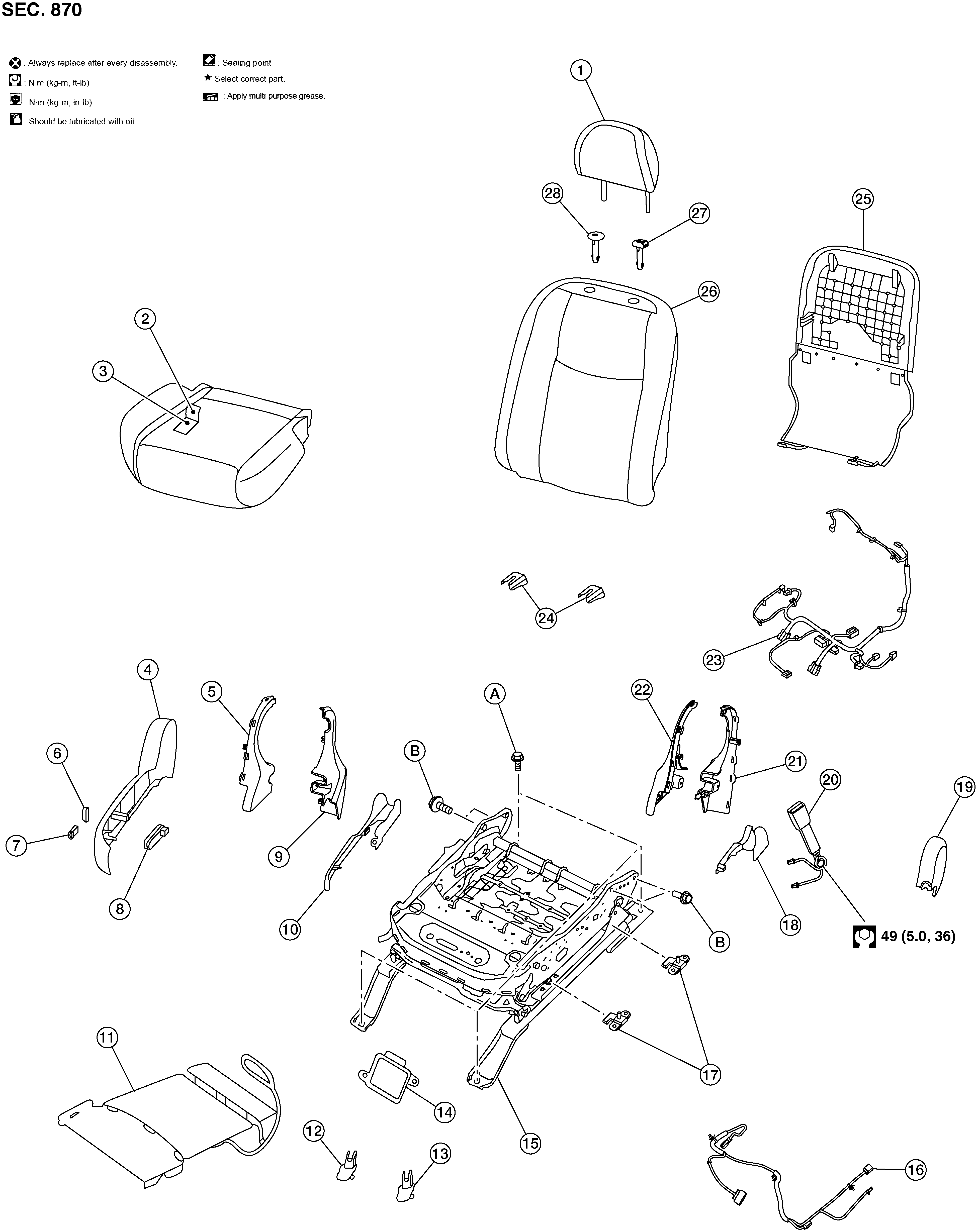

Fig 2: Front Driver Seat Components With Torque Specifications (Without Climate Control)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Headrest holder (locked)	3.	Headrest holder (free)
4.	Seat cushion trim	5.	Seat cushion pad	6.	Seat cushion outer finisher (RH)
7.	Seat belt buckle	8.	Seat cushion inner finisher (RH) (front)	9.	Seat cushion inner finisher (RH) (rear)
10.	Slide finisher outer (RH)	11.	Front seat heater	12.	Front slide finisher (RH)
13.	Seat frame assembly	14.	Front slide finisher (LH)	15.	Driver seat control unit (if equipped)
16.	Seat slide knob	17.	Seat recline knob	18.	Lumbar support switch
19.	Power seat switch	20.	Seat cushion outer finisher (LH)	21.	Slide finisher outer (LH)
22.	Seat cushion inner finisher (LH) (rear)	23.	Seat cushion inner finisher (LH) (front)	24.	Rear slide finisher
25.	Seatback assembly	26.	Seatback board	27.	Seat harness
28.	Lumbar lever (if equipped)	A.	Refer to Removal and Installation .	B.	Refer to Seatback .

Passenger Seat With Climate Control

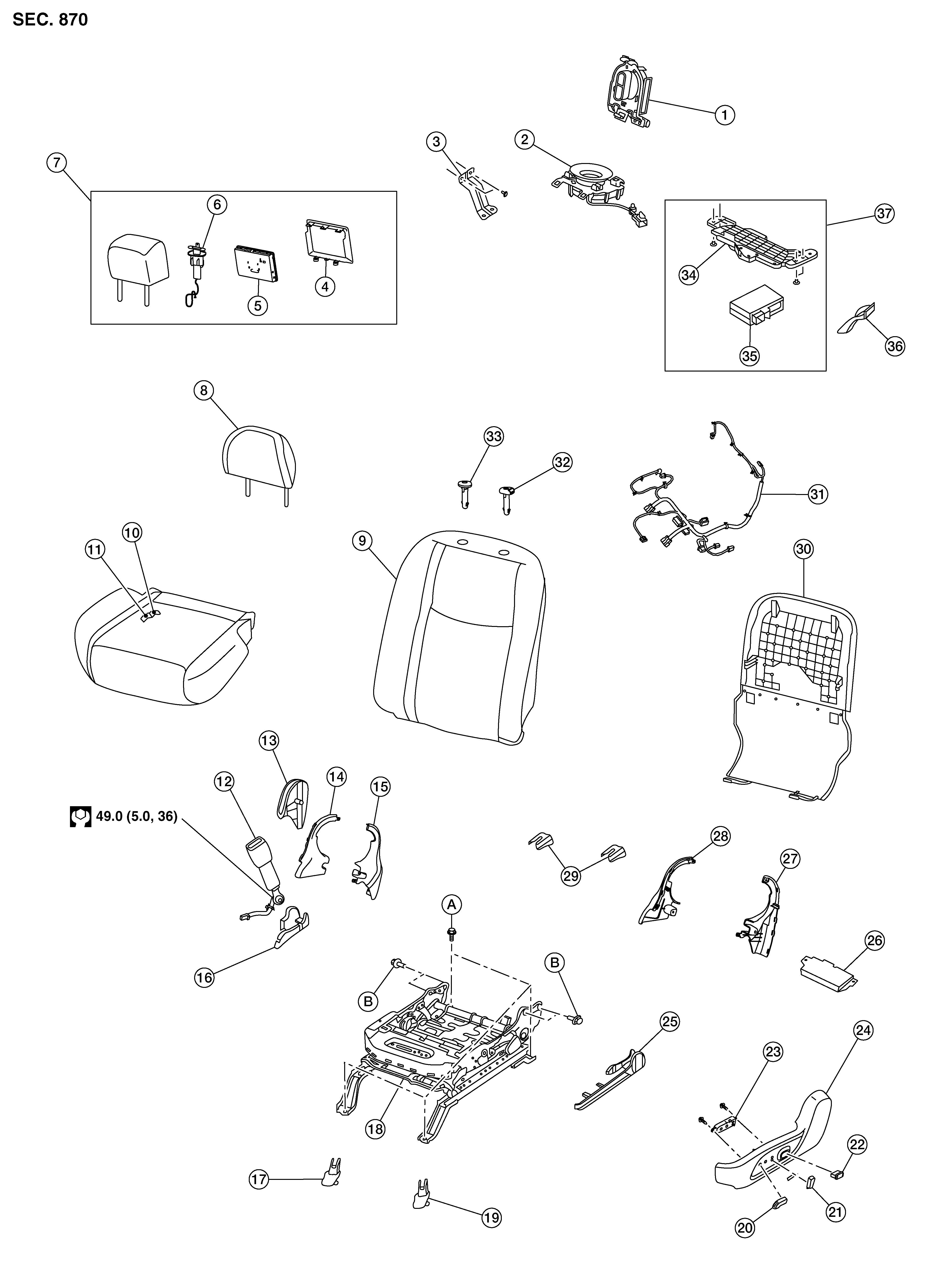

Fig 3: Front Passenger Seat Components With Torque Specifications (With Climate Control)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Seat back blower	2.	Seat cushion blower	3.	Climate controlled seat control unit bracket (RH)
4.	Headrest display unit finisher	5.	Headrest display unit	6.	Harness protector
7.	Headrest assembly with display unit	8.	Headrest without display unit	9.	Seat cushion trim
10.	Seat cushion pad	11.	Seat cushion inner finisher (RH) (front)	12.	Seat cushion outer finisher (RH)
13.	Seat recline knob	14.	Seat slide knob	15.	Power seat switch
16.	Seat cushion inner finisher (RH) (rear)	17.	Slide finisher outer (RH)	18.	Front slide finisher (RH)
19.	Front slide finisher (LH)	20.	Occupant Classification System control unit	21.	Seat frame assembly
22.	Occupant Classification System sensor	23.	Occupant Classification System harness	24.	Slide finisher outer (LH)
25.	Seat cushion outer finisher (LH)	26.	Seat belt buckle	27.	Seat cushion inner finisher (LH) (rear)
28.	Seat cushion inner finisher (LH) (front)	29.	Rear slide finisher	30.	Seatback assembly
31.	Seatback board	32.	Seat harness	33.	Headrest holder (locked)
34.	Headrest holder (free)	35.	Climate controlled seat control unit bracket	36.	Climate controlled seat control unit
37.	Climate controlled seat control unit bracket (LH)	38.	Climate controlled seat control unit assembly	A.	Refer to Removal and Installation .
B.	Refer to Seatback .

PASSENGER SEAT WITHOUT CLIMATE CONTROL

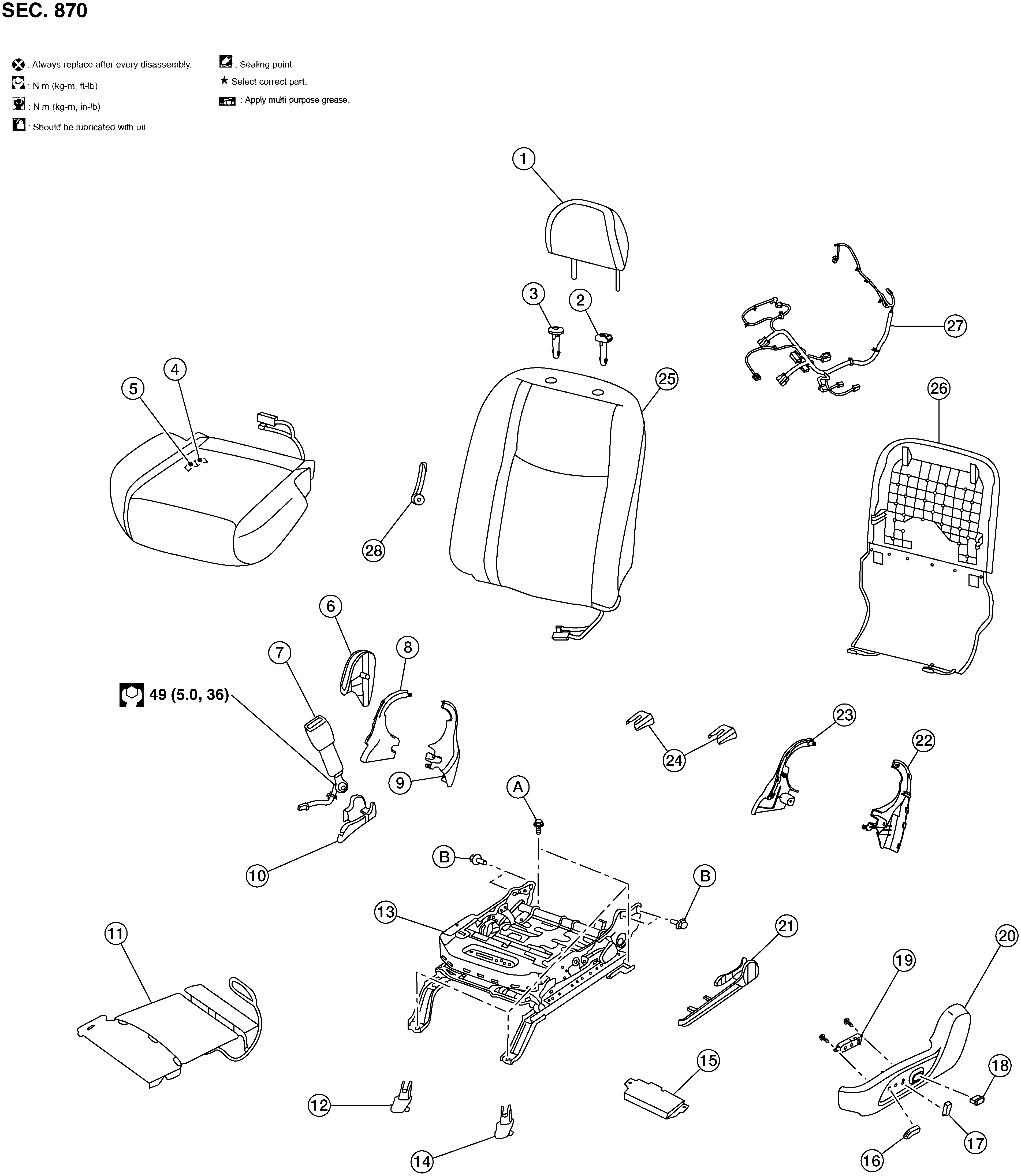

Fig 4: Front Passenger Seat Components With Torque Specifications (Without Climate Control)

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Headrest	2.	Seat cushion trim	3.	Seat cushion pad
4.	Seat cushion outer finisher (RH)	5.	Seat cushion inner finisher (RH) (front)	6.	Seat recline knob
7.	Seat slide knob	8.	Power seat switch	9.	Seat cushion inner finisher (RH) (rear)
10.	Slide finisher outer (RH)	11.	Front seat heater	12.	Front slide finisher (RH)
13.	Front slide finisher (LH)	14.	Occupant Classification System control unit	15.	Seat frame assembly
16.	Occupant Classification System harness	17.	Occupant Classification System sensor	18.	Slide finisher outer (LH)
19.	Seat cushion outer finisher (LH)	20.	Seat belt buckle	21.	Seat cushion inner finisher (LH) (rear)
22.	Seat cushion inner finisher (LH) (front)	23.	Seat harness	24.	Rear slide finisher
25.	Seatback board	26.	Seatback assembly	27.	Headrest holder (locked)
28.	Headrest holder (free)	A.	Removal and Installation .	B.	Seatback .
