Climate Controlled Seat Switch: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Release clip and pawls using a suitable tool and remove center console side finisher (LH/RH).
    GNSDB120153Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Clip

    SYMBOL : Pawl

    SYMBOL : Front

  2. Remove front console mat from front console tray.
  3. Release front console tray clips using a suitable tool, disconnect the harness connector from the power outlet and remove.
    GNSAWMIA0075Z-075Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Metal clip

  4. Remove shift selector handle. Refer to Exploded View .
  5. Release shift selector finisher clips and pawls using a suitable tool, then disconnect harness connectors and remove.
  6. Release pawls using a suitable tool and remove climate controlled seat switch (1, 2).

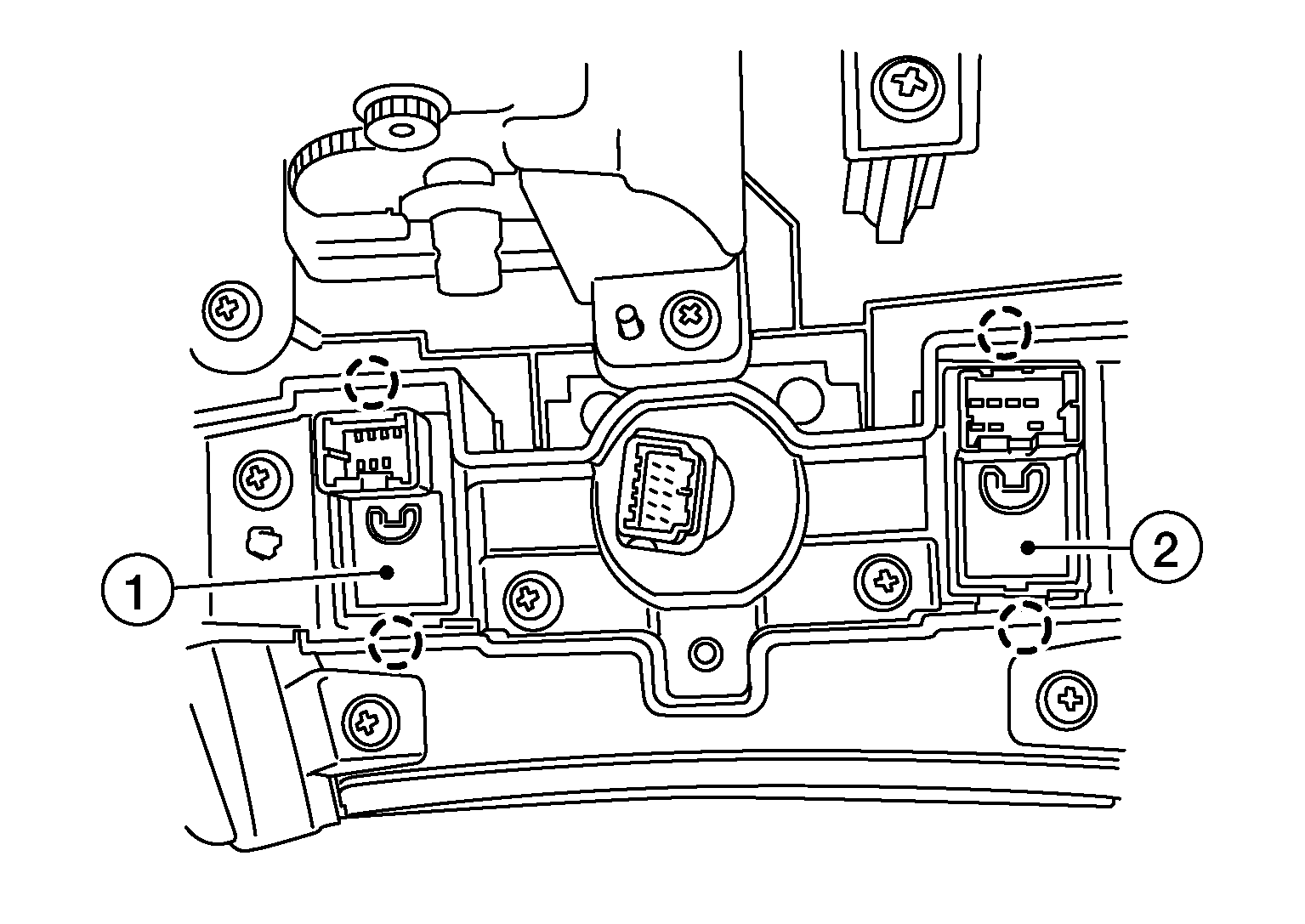

    GNSALJIA1482Z-482Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL :Pawl
