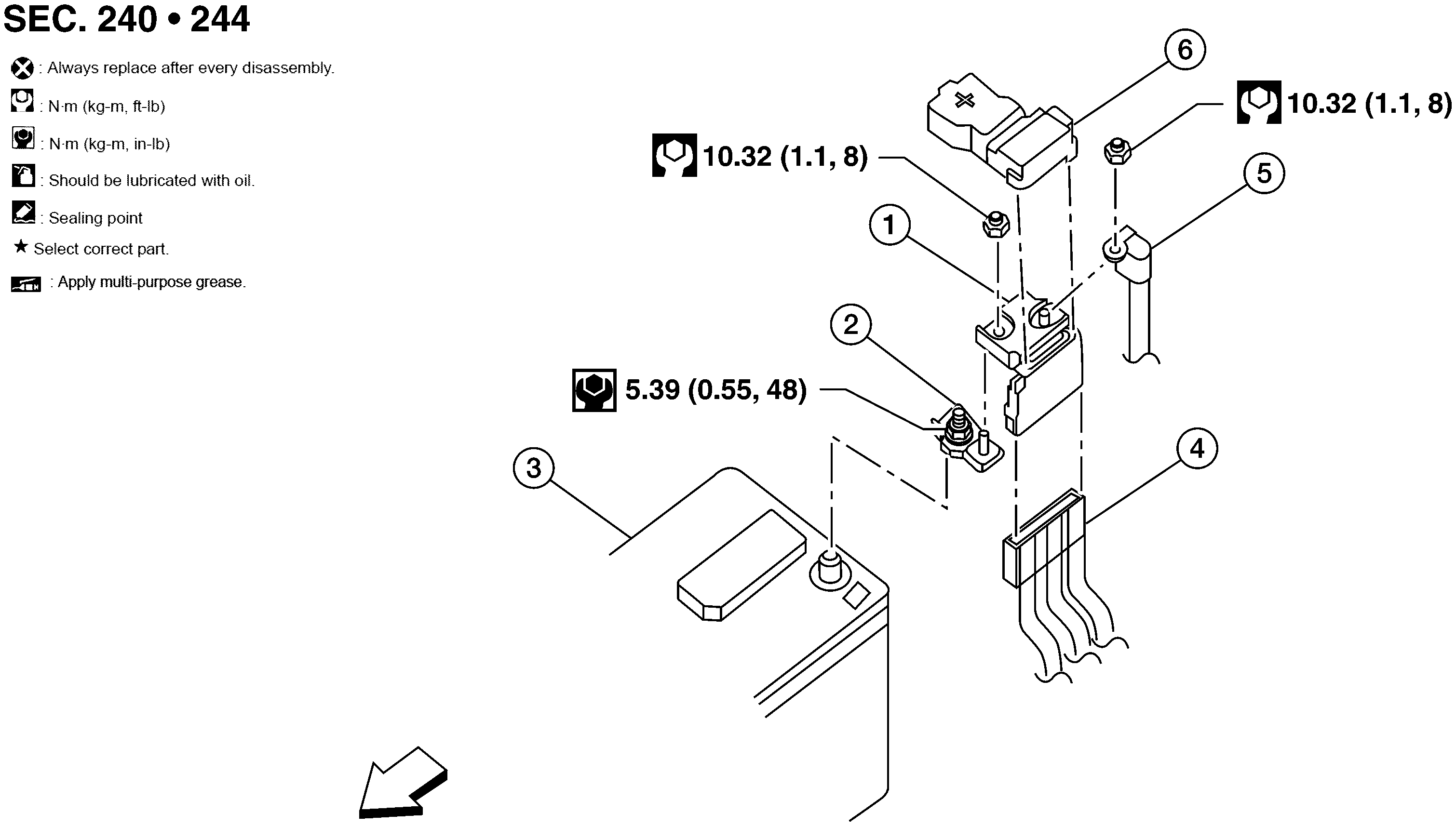

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of NISSAN NORTH AMERICA, INC.
|
1.
|
Fusible link box (battery)
|
2.
|
Battery positive terminal
|
3.
|
Battery
|
|
4.
|
Harness connectors
|
5.
|
Battery positive cable
|
6.
|
Battery positive terminal cover
|
|
|
Front
|
