Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

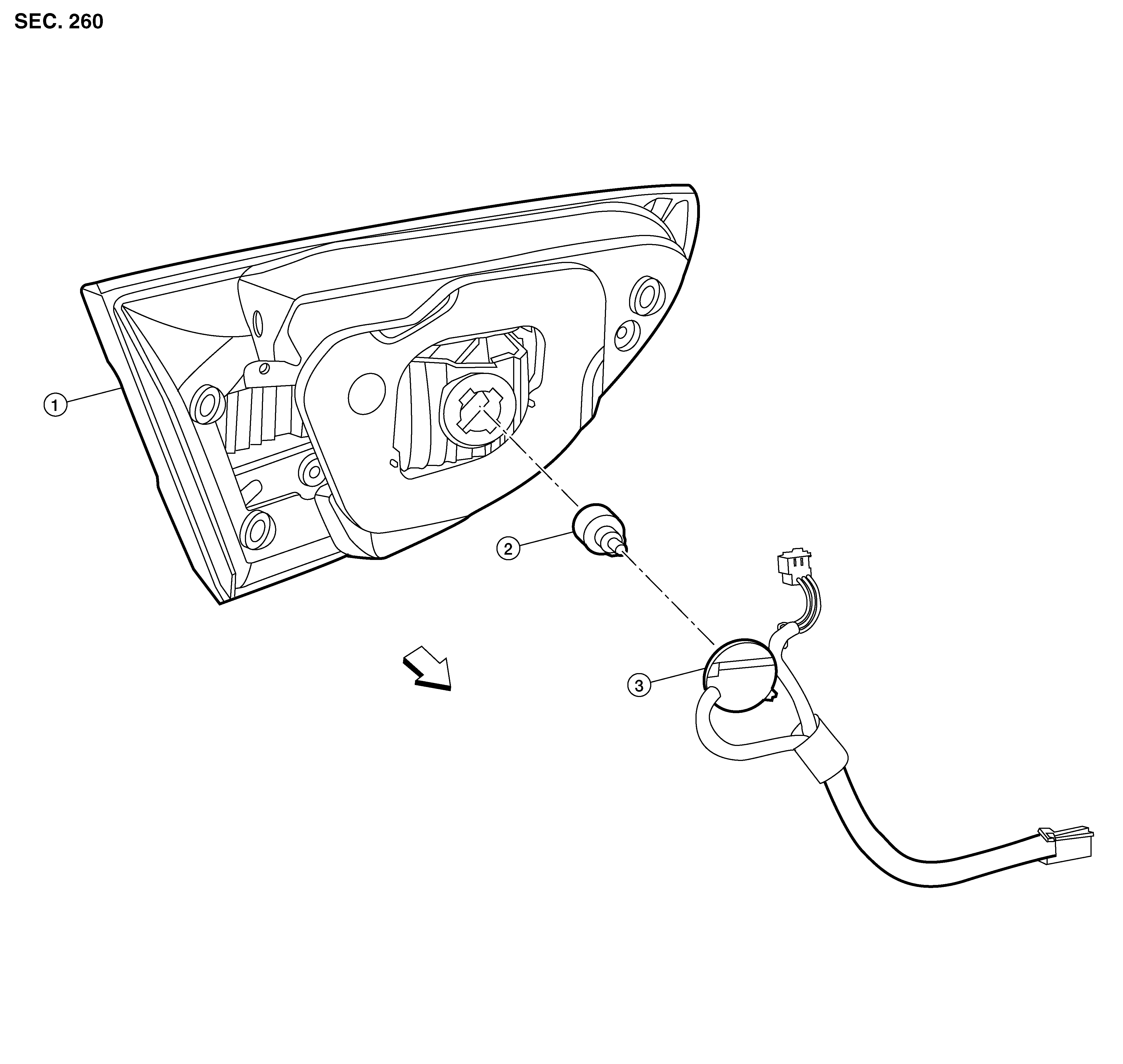

GNSAWLIA2912Z-912Courtesy of NISSAN NORTH AMERICA, INC.

1.

Back-up lamp assembly

2.

Back-up lamp bulb

3.

Back-up lamp harness

SYMBOL

Front
NOTE: RH shown, LH similar.
