Exploded View - With Rear Spoiler

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

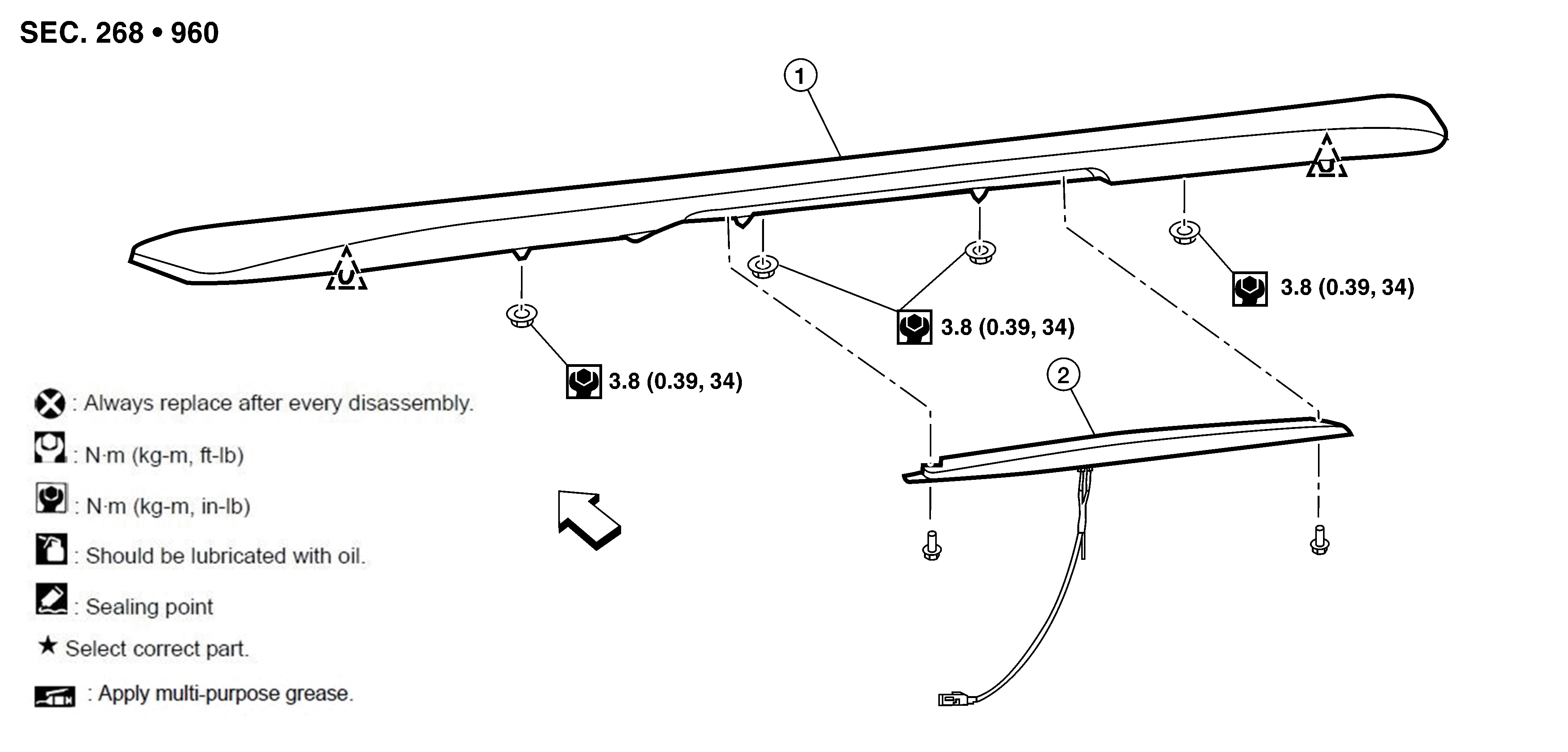

Fig 1: High-Mounted Stop Lamp Bulb Replacement Components With Torque Specifications

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Rear air spoiler	2.	High-mounted stop lamp		Clip
	Front
