Exploded View

WARNING: This page is about a different car, the 2018 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

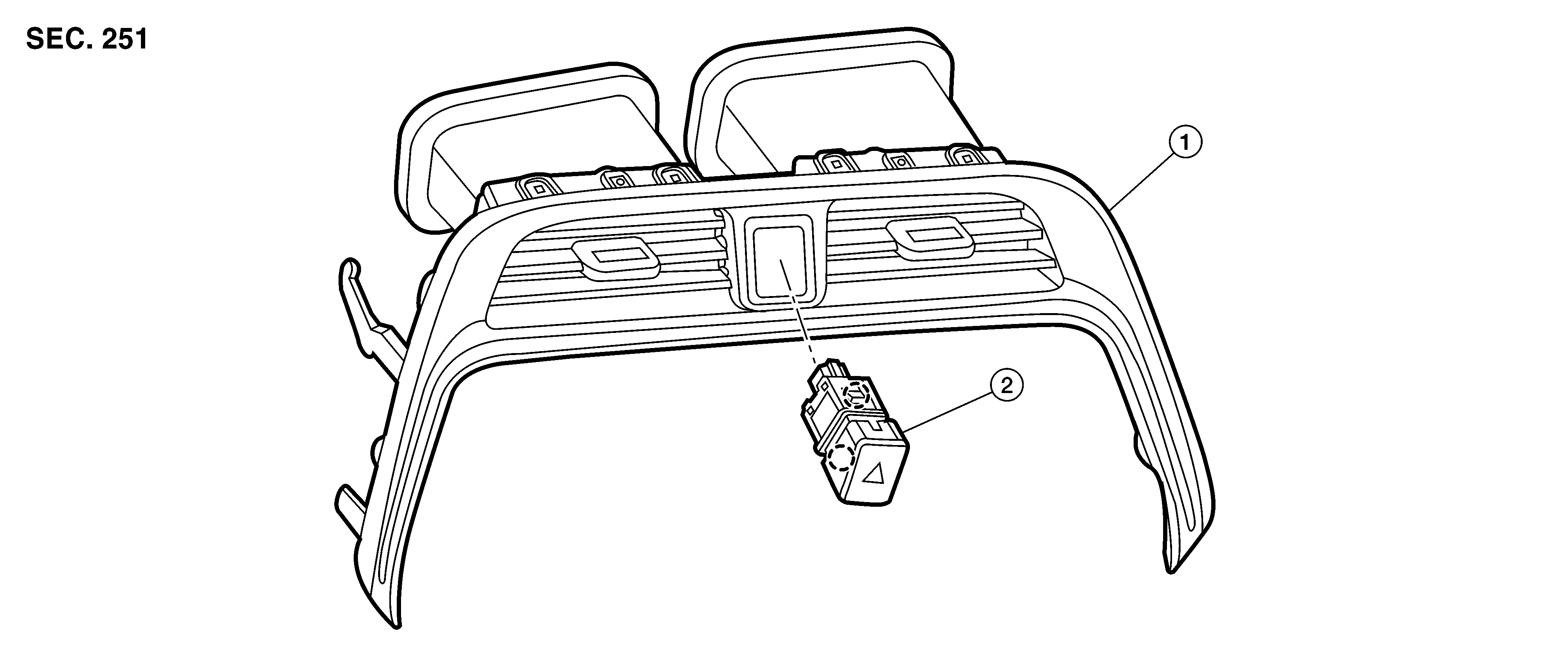

GNSALLIA1836Z-836Courtesy of NISSAN NORTH AMERICA, INC.

1.

Center ventilator grille

2.

Hazard switch

SYMBOL

Pawl
