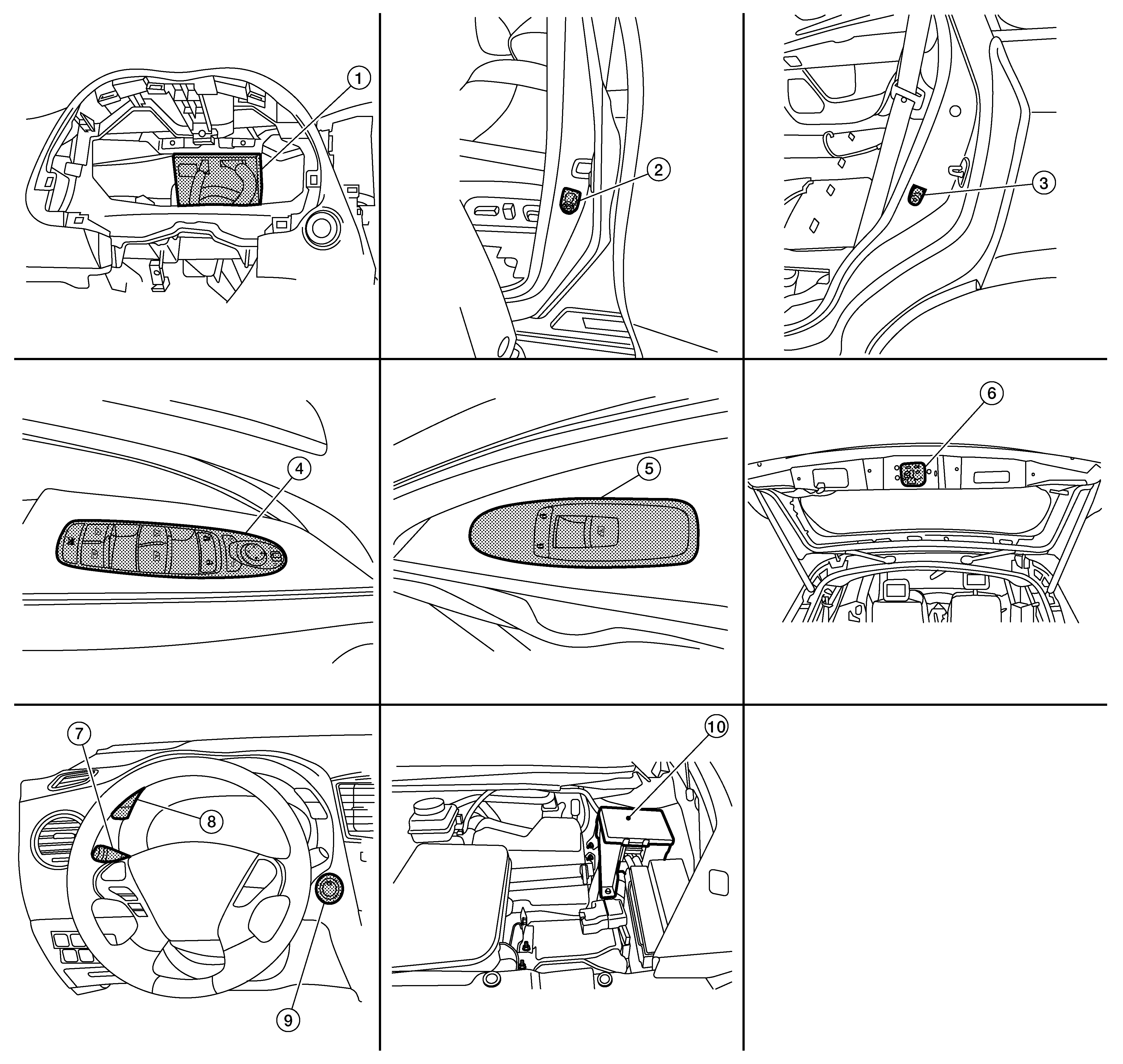

Component Location
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
|
1. |
BCM (view with combination meter removed) |
2. |
Front door switch LH (RH similar) |
3. |
Rear door switch LH (RH similar) |
|
4. |
Main power window and door lock/unlock switch |
5. |
Power window and door lock/unlock switch RH |
6. |
Back door lock assembly (door ajar switch) |
|
7. |
Combination switch (lighting and turn signal switch) |
8. |
Meter control switch (illumination control switch) |
9. |
Push-button ignition switch |
|
10. |
IPDM E/R |
