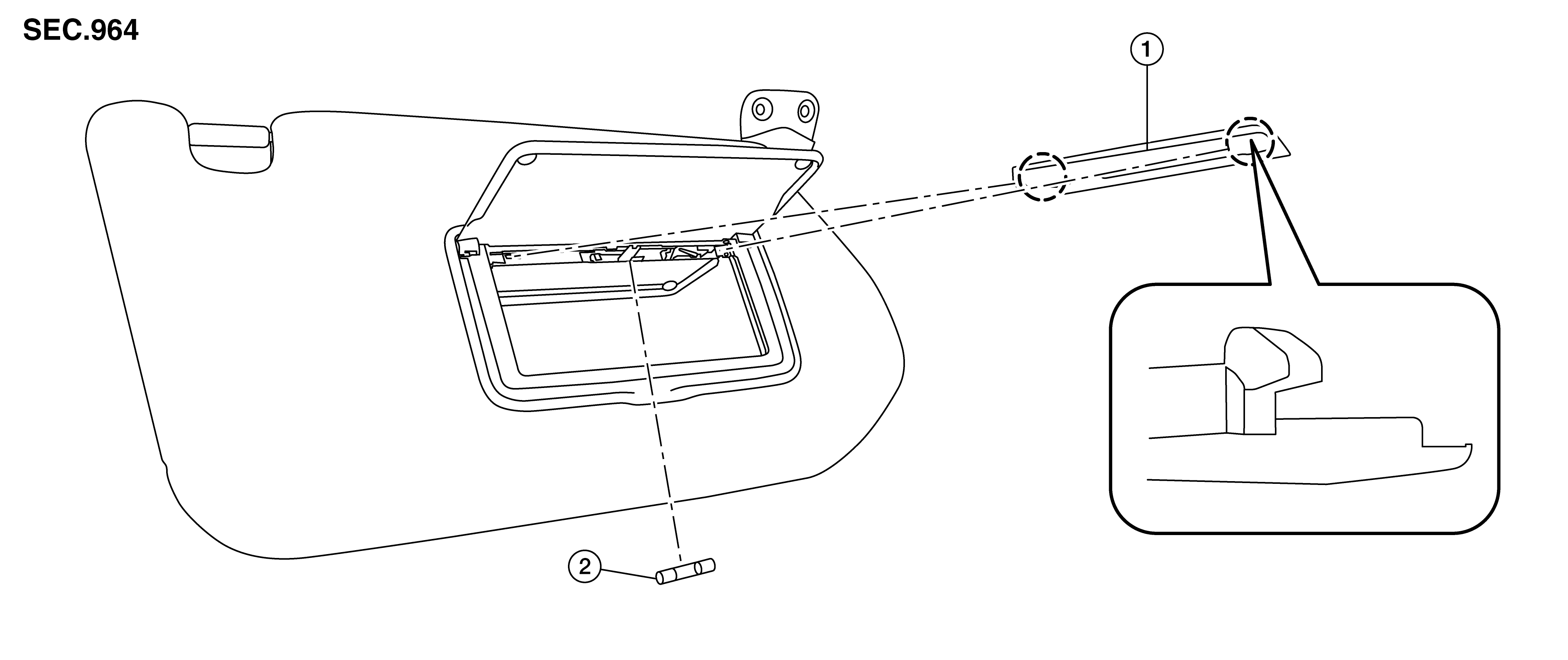

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
GNSALLIA1083Z-083Courtesy of NISSAN NORTH AMERICA, INC.

1.

Lens

2.

Bulb

SYMBOL

Pawl
