Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

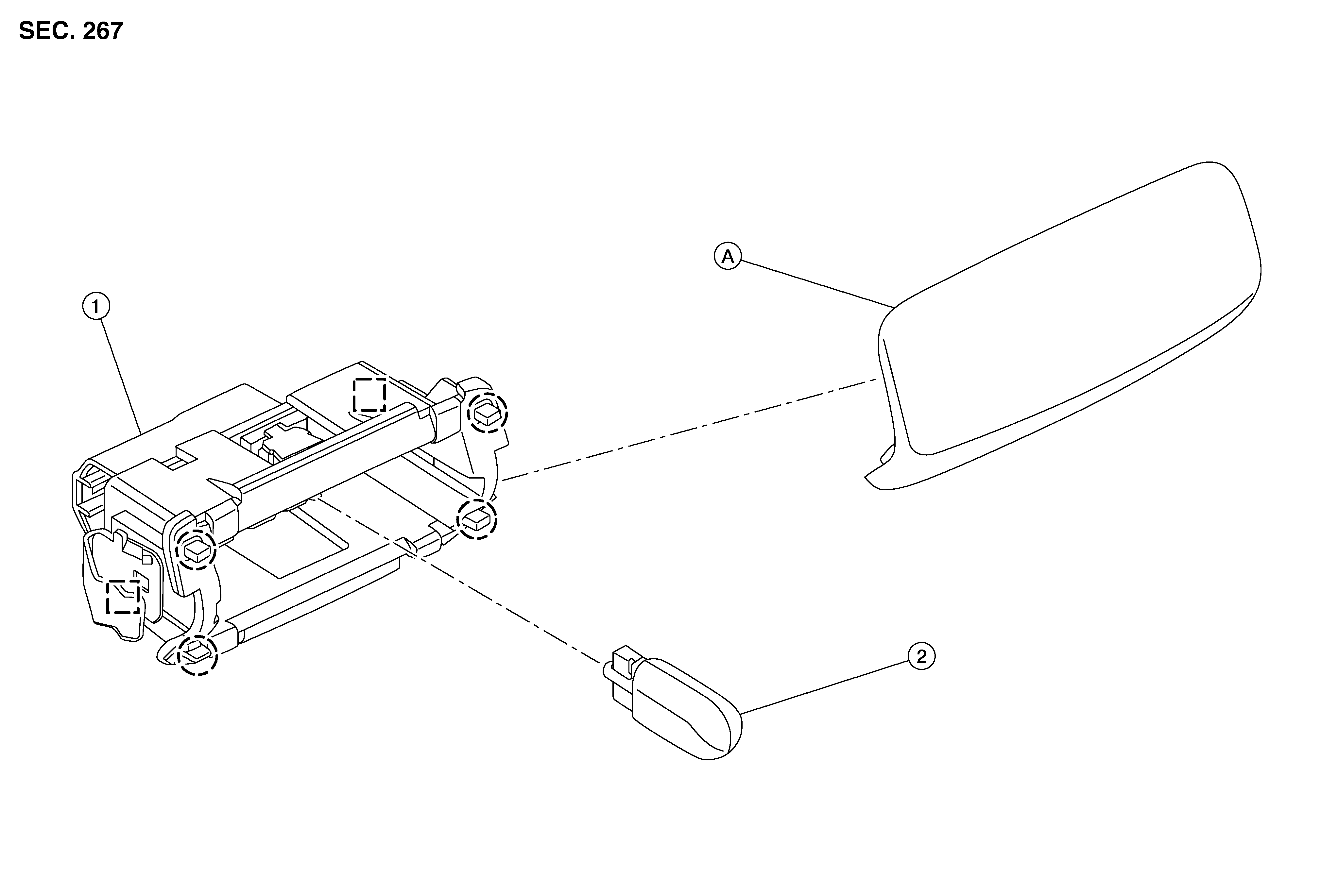

GNSAWLIA0091Z-091Courtesy of NISSAN NORTH AMERICA, INC.

1.

Step lamp

2.

Bulb

A.

Lens
SYMBOL

Pawl

 SYMBOL

Metal clip
