Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining. Refer to Removal and Installation .

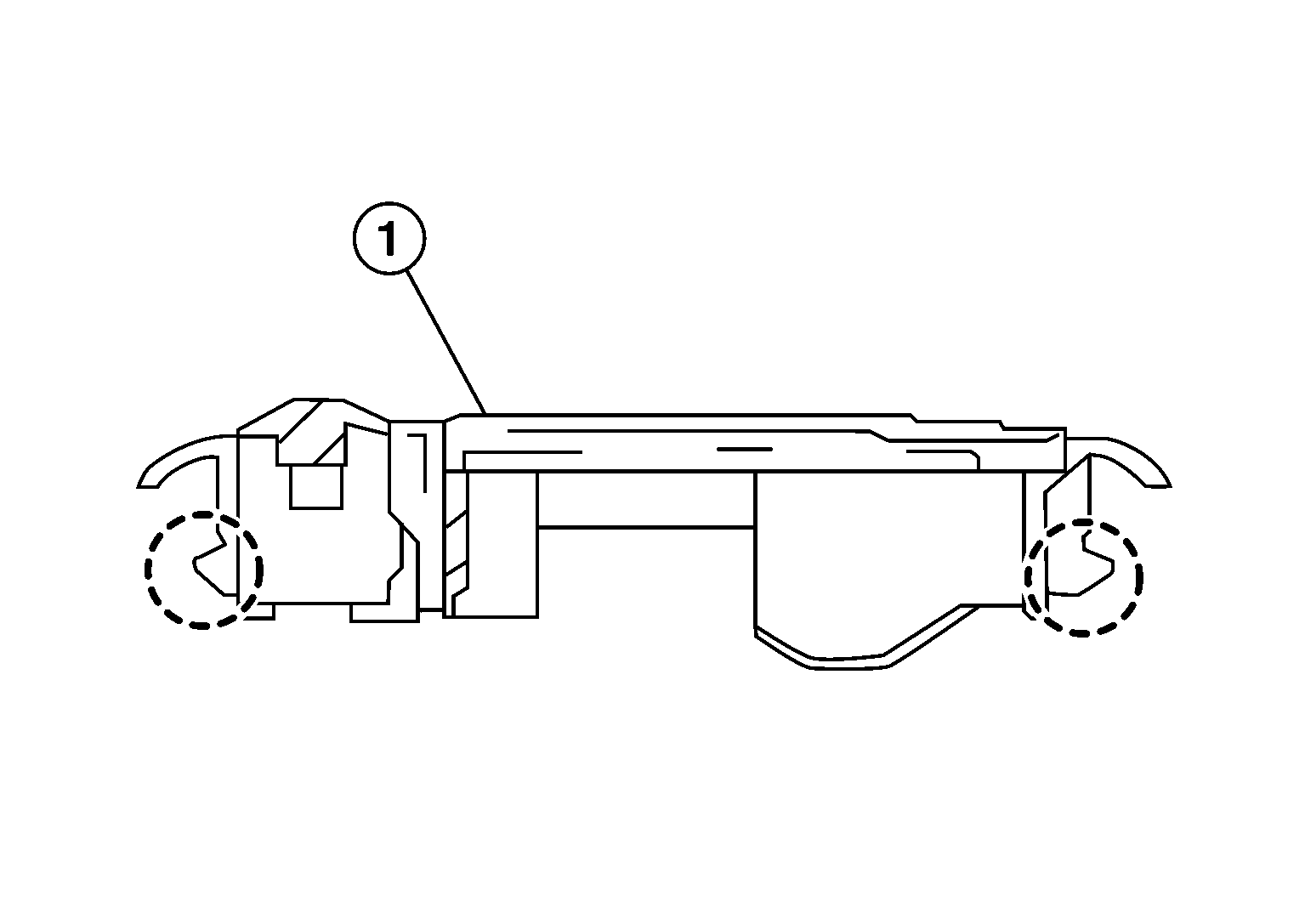

  2. Insert a suitable tool into the gap between the headlining and personal lamp (1), release personal lamp pawls and remove.
    GNSAWJIA1165Z-165Courtesy of NISSAN NORTH AMERICA, INC.

    SYMBOL : Pawl
