Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

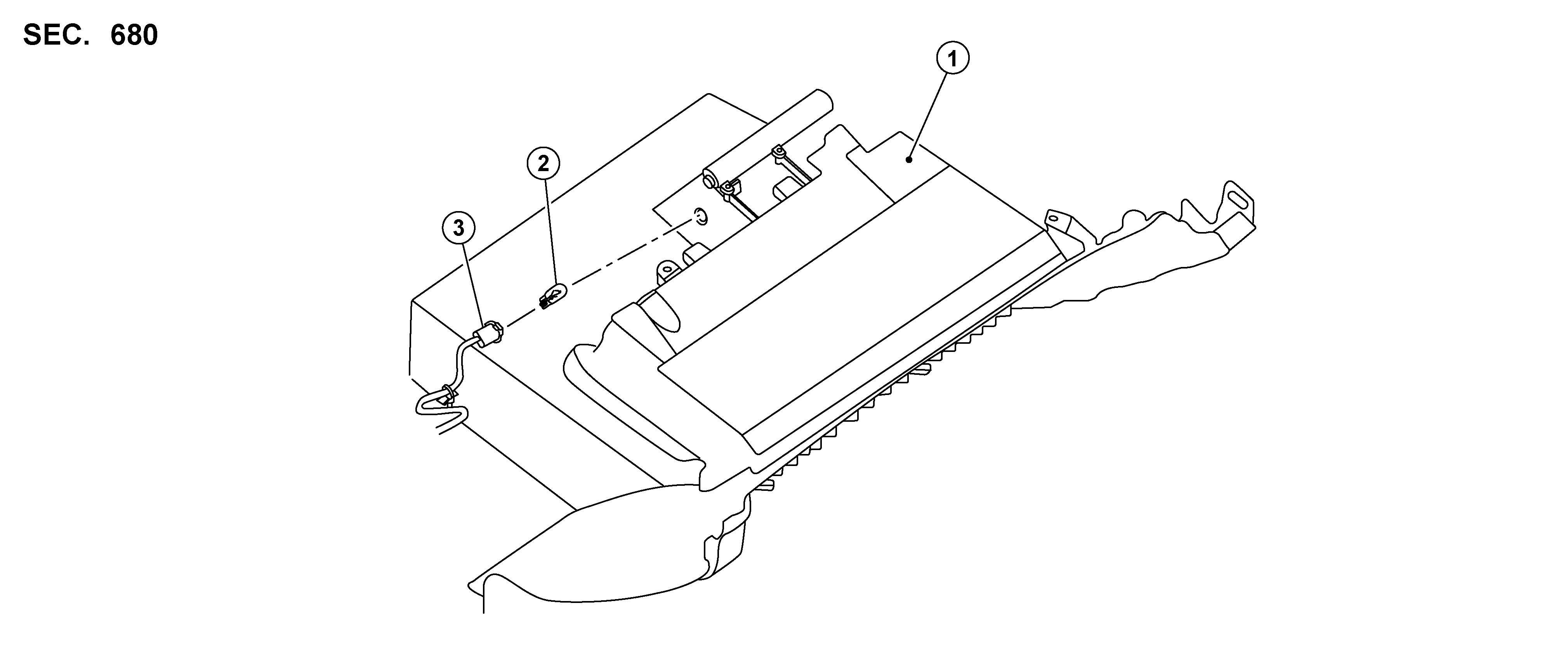

GNSALLIA1084Z-084Courtesy of NISSAN NORTH AMERICA, INC.

1.

Glove box assembly

2.

Bulb

3.

Bulb socket
