Removal and Installation: Removal

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the headlining. Refer to Removal and Installation .

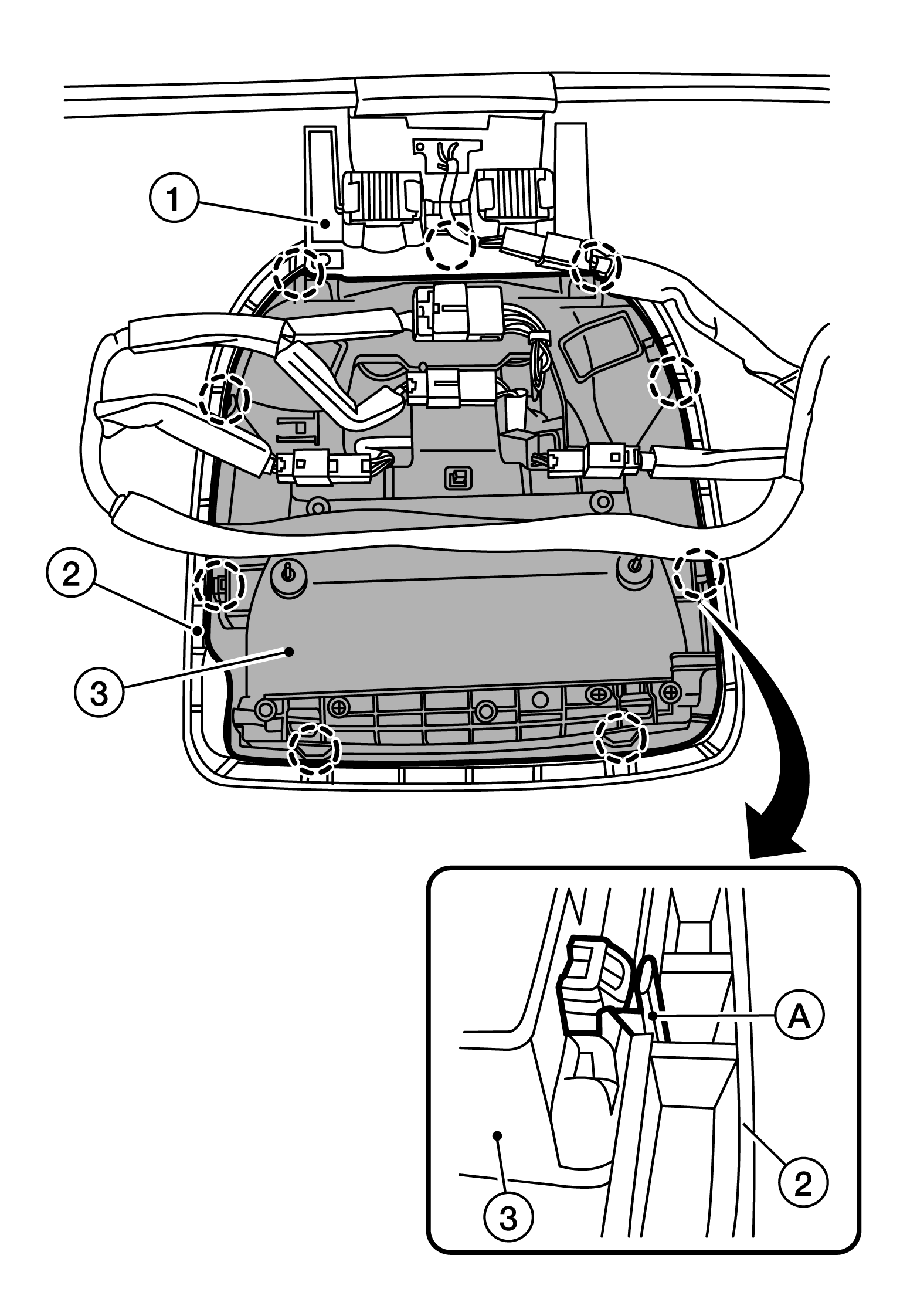

  2. Remove the two bracket screws, then remove the front room/map lamp assembly bracket (1) from front room/map assembly (3) and position aside.
    GNSALLIA1092Z-092Courtesy of NISSAN NORTH AMERICA, INC.
  3. Disconnect the harness connectors from front room/map lamp assembly (3).
  4. Release the nine back plate pawls (A) using a suitable tool and remove the front room/map lamp assembly (3).

    SYMBOL : Pawl

    CAUTION: When removing, support front room/map lamp assembly (3) by hand so it does not fall out and get damaged during the removal.
  5. Remove the front room/map lamp back plate (2) from the headlining.
