Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

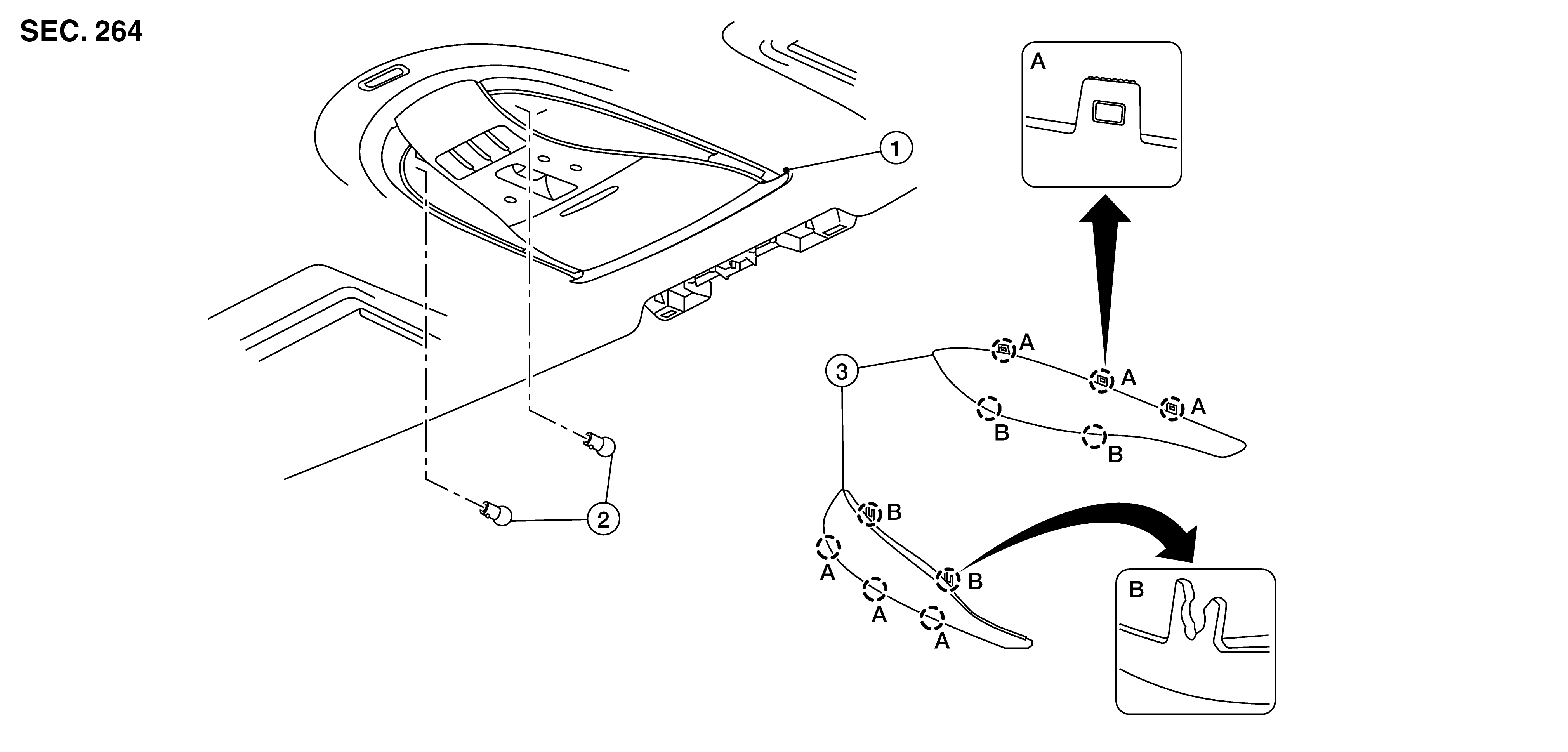

GNSALLIA1082Z-082Courtesy of NISSAN NORTH AMERICA, INC.

1.

Front room/map lamp assembly

2.

Bulb

3.

Lens

SYMBOL

Pawl
