Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

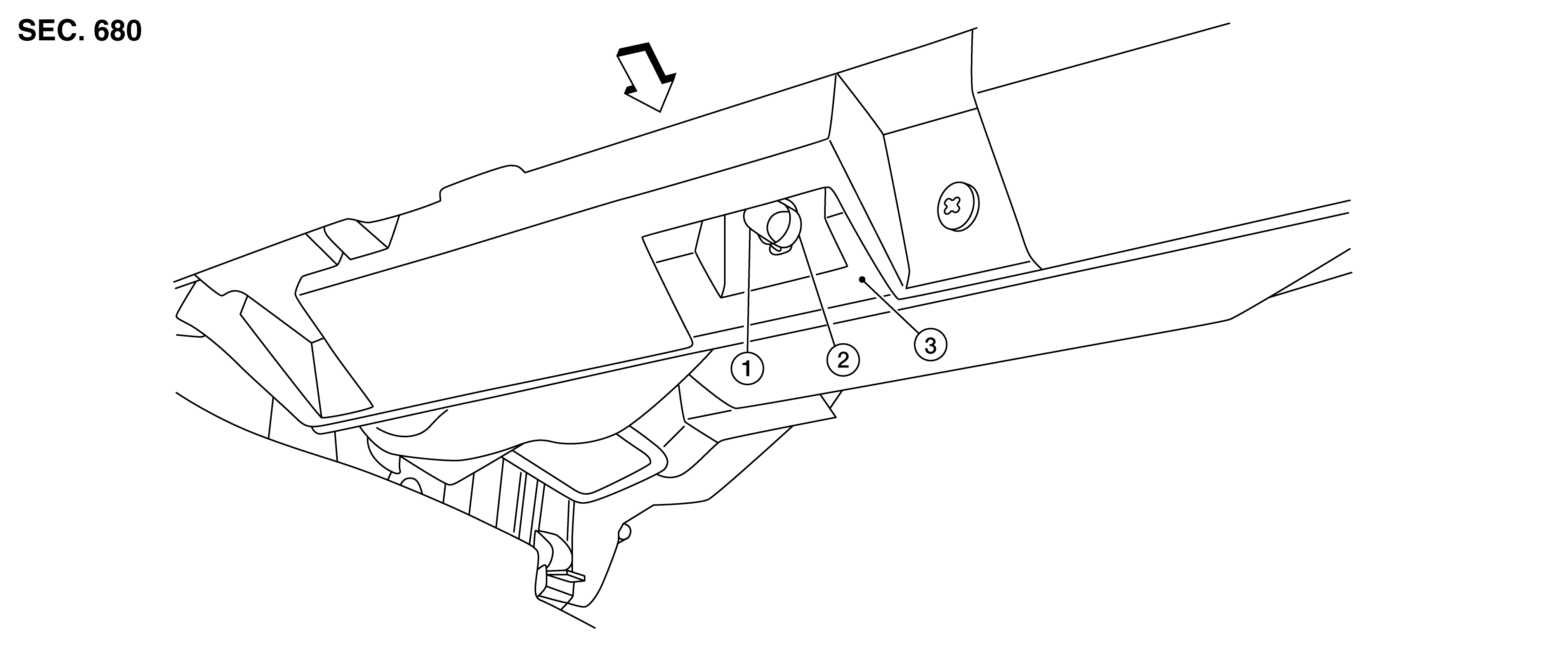

GNSALLIA1086Z-086Courtesy of NISSAN NORTH AMERICA, INC.

1.

Bulb

2.

Bulb socket

3.

Instrument panel substrate

SYMBOL

Front
