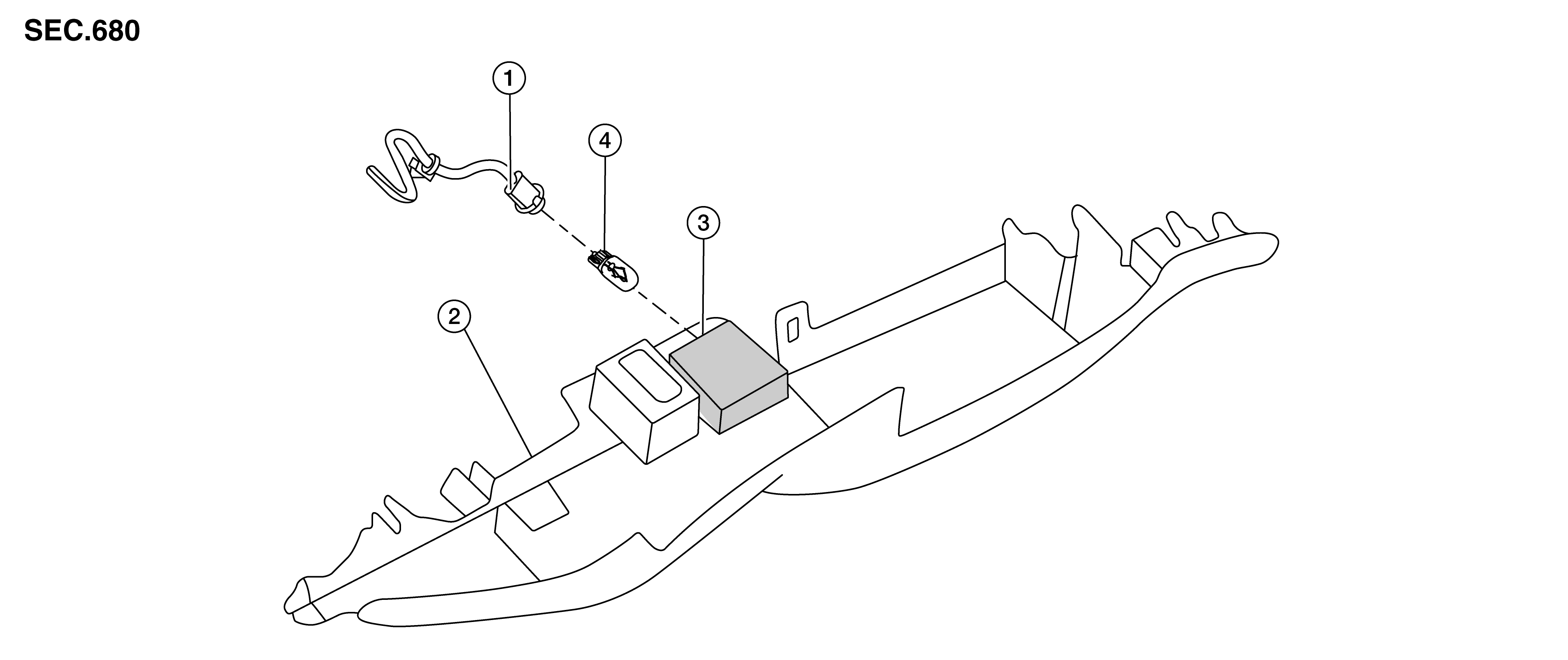

Exploded View

WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of NISSAN NORTH AMERICA, INC.

1.	Bulb socket	2.	Instrument lower panel LH	3.	Foot lamp housing
4.	Bulb
