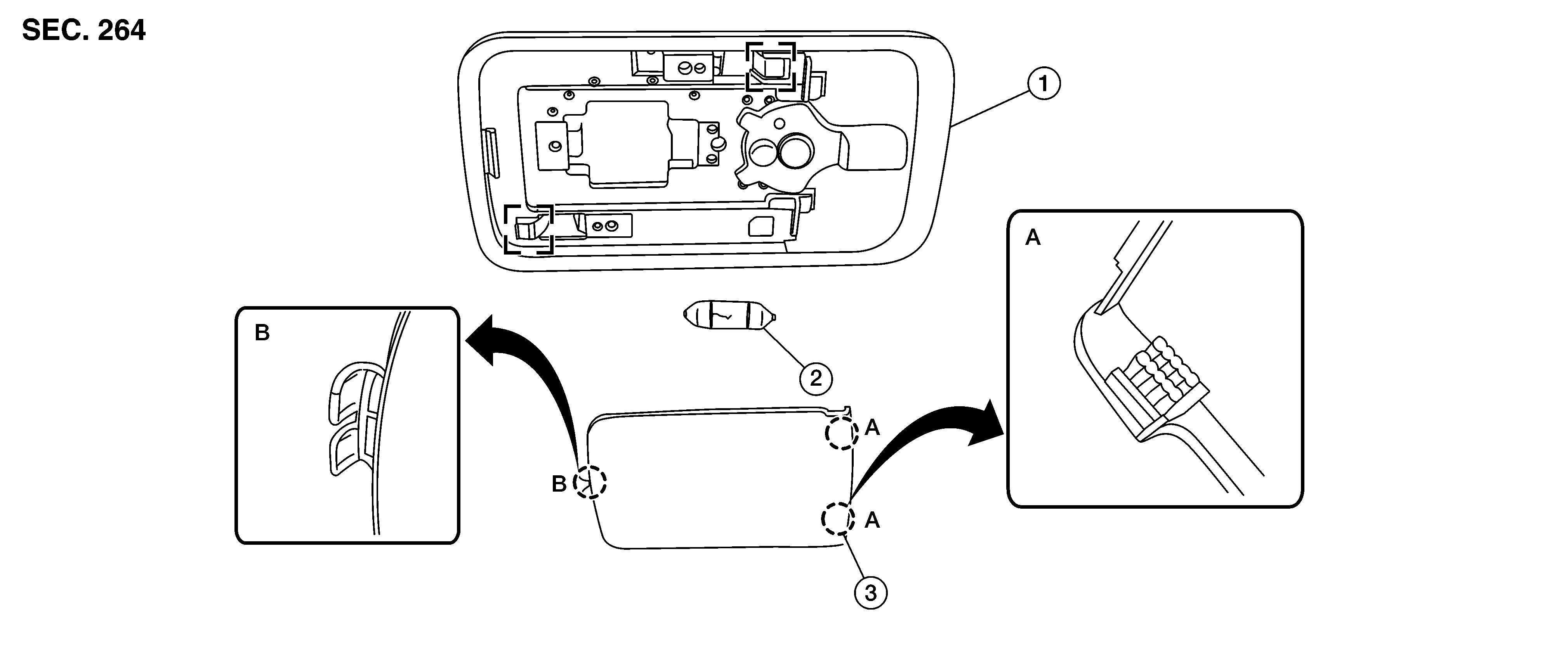

Exploded View
WARNING: This page is about a different car, the 2020 Infiniti QX60. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of NISSAN NORTH AMERICA, INC.
|
|
1.
|
Cargo lamp
|
2.
|
Bulb
|
3.
|
Lens
|
|
A.
|
Pawls to release first for lens removal
|
B.
|
Pawl to install first for lens installation
|
|
Pawl
|
|
|
Metal clip
|
